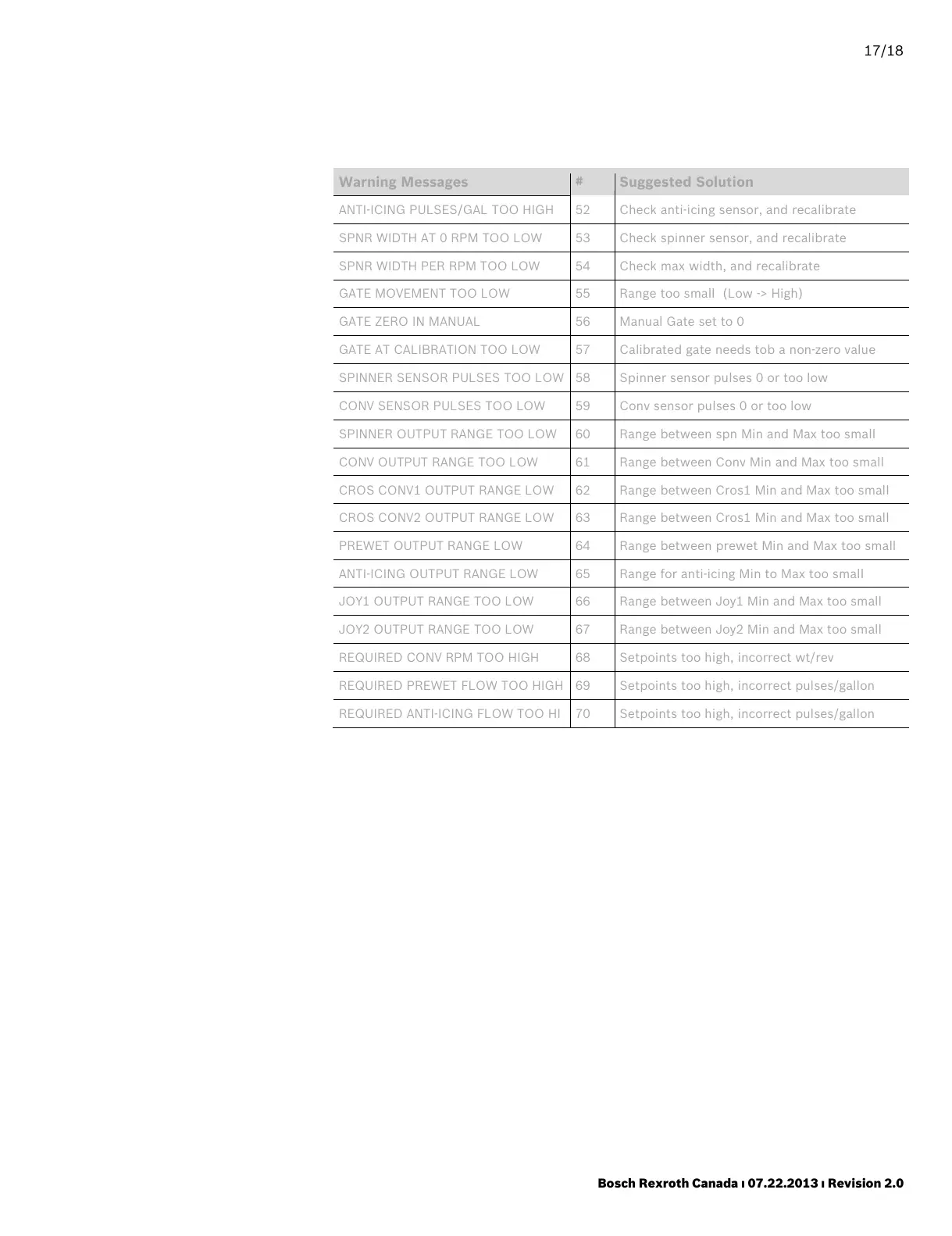

17/18
Bosch Rexroth Canada ı 07.22.2013 ı Revision 2.0
ANTI-ICING PULSES/GAL TOO HIGH 52 Check anti-icing sensor, and recalibrate
SPNR WIDTH AT 0 RPM TOO LOW 53 Check spinner sensor, and recalibrate
SPNR WIDTH PER RPM TOO LOW 54 Check max width, and recalibrate
GATE MOVEMENT TOO LOW 55 Range too small (Low -> High)
GATE ZERO IN MANUAL 56 Manual Gate set to 0
GATE AT CALIBRATION TOO LOW 57 Calibrated gate needs tob a non-zero value
SPINNER SENSOR PULSES TOO LOW
58 Spinner sensor pulses 0 or too low
CONV SENSOR PULSES TOO LOW 59 Conv sensor pulses 0 or too low
SPINNER OUTPUT RANGE TOO LOW 60 Range between spn Min and Max too small
CONV OUTPUT RANGE TOO LOW 61 Range between Conv Min and Max too small
CROS CONV1 OUTPUT RANGE LOW 62 Range between Cros1 Min and Max too small
CROS CONV2 OUTPUT RANGE LOW 63 Range between Cros1 Min and Max too small
PREWET OUTPUT RANGE LOW 64 Range between prewet Min and Max too small
ANTI-ICING OUTPUT RANGE LOW 65 Range for anti-icing Min to Max too small
JOY1 OUTPUT RANGE TOO LOW 66 Range between Joy1 Min and Max too small
JOY2 OUTPUT RANGE TOO LOW 67 Range between Joy2 Min and Max too small
REQUIRED CONV RPM TOO HIGH 68 Setpoints too high, incorrect wt/rev
REQUIRED PREWET FLOW TOO HIGH
69 Setpoints too high, incorrect pulses/gallon
REQUIRED ANTI-ICING FLOW TOO HI 70 Setpoints too high, incorrect pulses/gallon
