Bosch DCI 700 - Page 7

1 689 989 473 | 2021-08-24Robert Bosch GmbH
1
458922-33_Pal
2
 2:

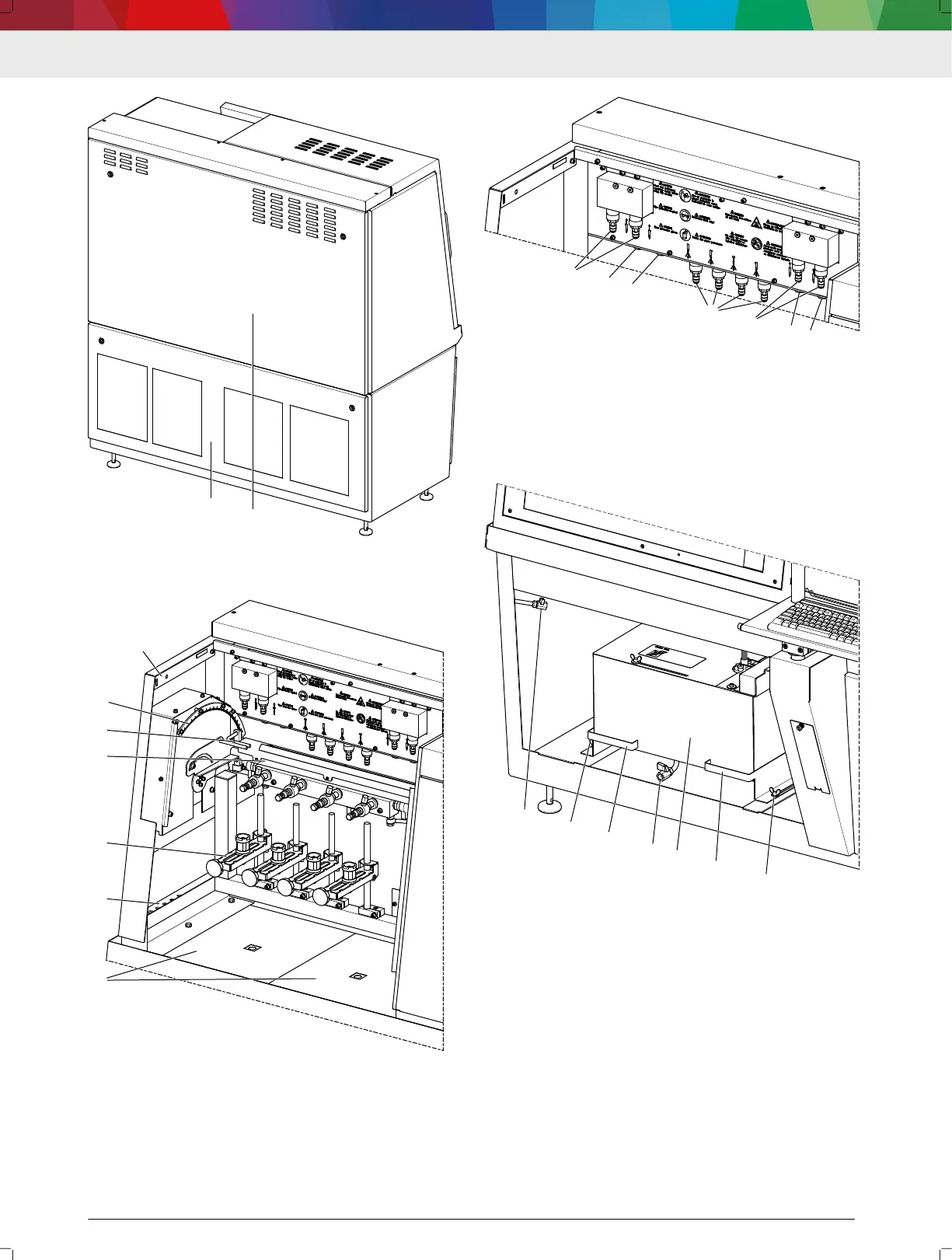

Rear view of DCI 700
(1) Cover for heat exchanger compartment and test oil area
(2) Hydraulics compartment cover
A
B
C
D
A
B
C
D
2
1
3
4
5
6
7
458922-48_Pal
 3:
Test area
(1) Storage tray
(2) Storage compartment with holders for the accessories
(3) Injection chamber device
(4) Swivel fixture with high-pressure rail
(5) Locking handle for swivel fixture
(6) Scale plate
(7) Switch box for door monitoring
A
B
C
D
A
B
C
D
5
1
458922-49_Pal
7
6
2
3
4
 4:
Ports
(1) Return test connection for injectors A and B
(2) Injector A actuation port
(3) Injector B actuation port
(4) Injection test connection for injectors A, B, C and D
(5) Return test connection for injectors C and D
(6) Injector C actuation port
(7) Injector D actuation port
2
2
3
458922-34_Pal
1
4
5
3
 5:
Test oil area opened
(1) Drain cock for test oil in the test area
(2) Wing screw for fastening the test oil tank
(3) Handle for the test oil tank
(4) Drain cock of the test oil tank
(5) Test oil tank
DCI 700 | 7 | en
