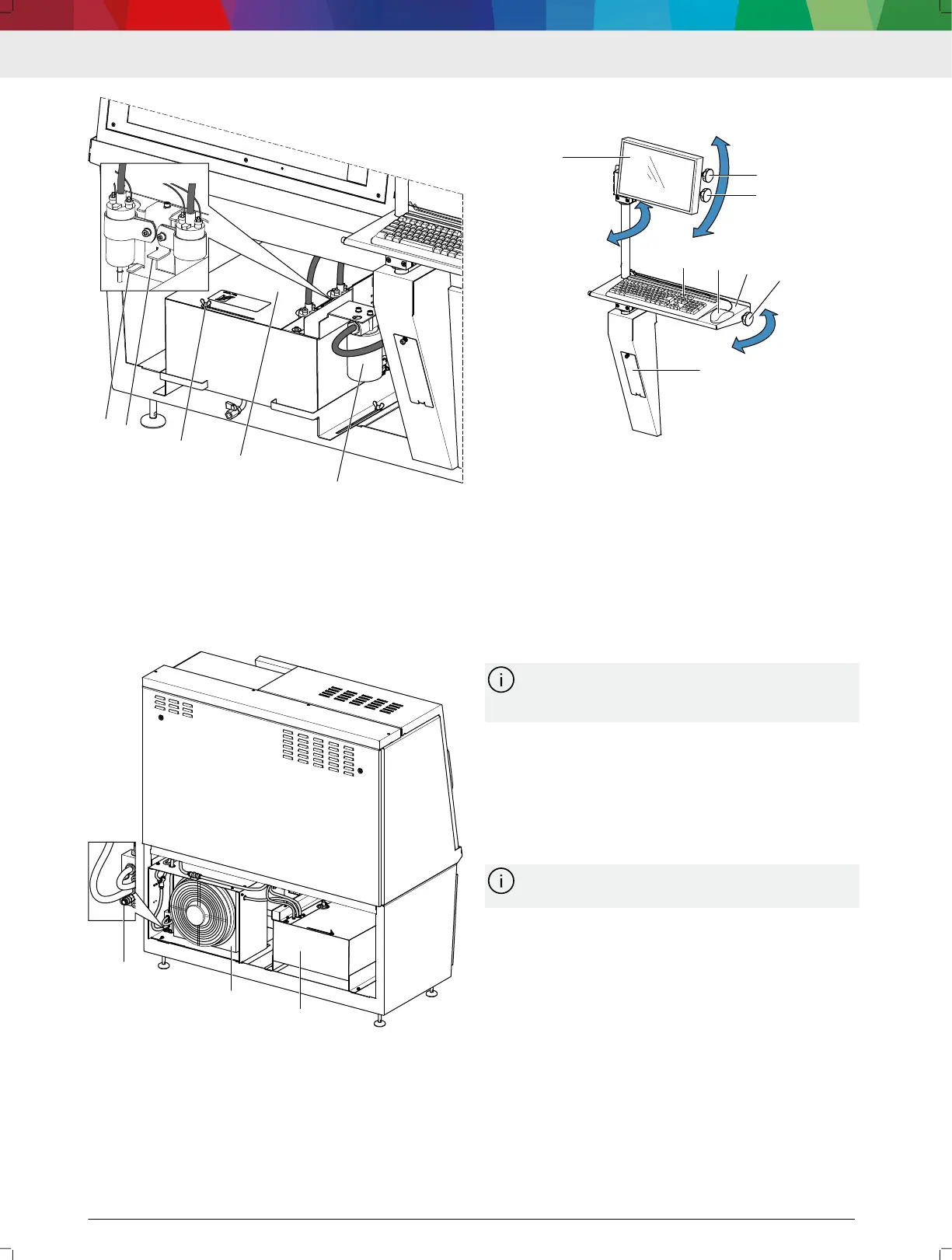

 6: Test oil tank pulled out
(1) Filling level indicator for minimum quantity (min.)
(2) Filling level indicator for maximum quantity (max.)
(3) Fastening screw for the test oil tank cap
(4) Test oil tank cap
(5) Test oil filter
458922-37_Pal
1
2
3
 7:
Rear of DCI 700 without cover on heat exchanger com‐
partment and test oil area
(1) Quick-release coupling for draining the test oil
(2) Heat exchanger
(3) Test oil tank
---
3.8 Component description
---Separator---
3.8.1 Human Machine Interface
4
5
458922_61_Pal
1
2
3
6
7
8
 8:
Human Machine Interface
(1) Monitor with touch controls
(2) Locking knob for tilt setting
(3) Locking knob for swivel adjustment
(4) Keyboard (not included in scope of delivery)
(5) Mouse (not included in scope of delivery)
(6) Keyboard shelf
(7) Locking knob for swivel adjustment
(8) Access to computer unit
The monitor (1) can be tilted and swiveled on the mon‐
itor column and has a touch-sensitive screen (touch
control). The software is controlled by touching or
swiping across the glass surface.
Connections, control elements and operation of
the monitor are described in the monitor's oper‐
ating instructions.
After the corresponding locking handle (2) or (3)is re‐
leased, the monitor can be tilted and swiveled.
A commercially available keyboard (4) and mouse (5)
can be used to supplement touch control. The keyboard
and mouse can be placed on the swiveling keyboard
shelf (6) . After the locking knob (7) is released, the
keyboard shelf can be swiveled.
Height adjustment of the HMI is described in the
chapter  13 "Adjust the height of the HMI" .
The computer unit is located behind the access (8).
