14 en | System overview DIVAR IP 7000 (2U)
2016.07 | V2 | DOC Installation Manual Bosch Sicherheitssysteme GmbH
For empty chassis, the hard drives must be purchased separately. For the latest shipping lists,
see the datasheet in the online product catalog.
3.2.2 Fans
The system fans provide cooling for the chassis. These fans circulate air through the chassis as
a means of lowering the chassis internal temperature.
The system fans are powered from the motherboard. The fans are 2U high.
3.2.3 Power supply
The chassis has redundant power supplies. Redundant power supplies are hot-swappable, and
can be changed without turning off the system.
Each power supply is auto-switching capable. This enables the power to automatically sense
and operate at a 100V to 240V input voltage. An amber light will be illuminated on the power
supply when the power is off. An illuminated green light indicates that the power supply is
operating.
3.2.4 Air shroud
Air shrouds are shields, usually plastic, which conduct the airflow directly to where it is
needed to maximize fan efficiency . Always use the air shroud included with your chassis.
3.2.5 Mounting rails
The unit can be placed in a rack for secure storage and use. To set up your rack, follow the
step-by-step instructions included in this manual.
3.3 System interface
There are several LEDs on the front and rear of the chassis. The LEDs show the over-all status
of the system and the activity and health of specific components.

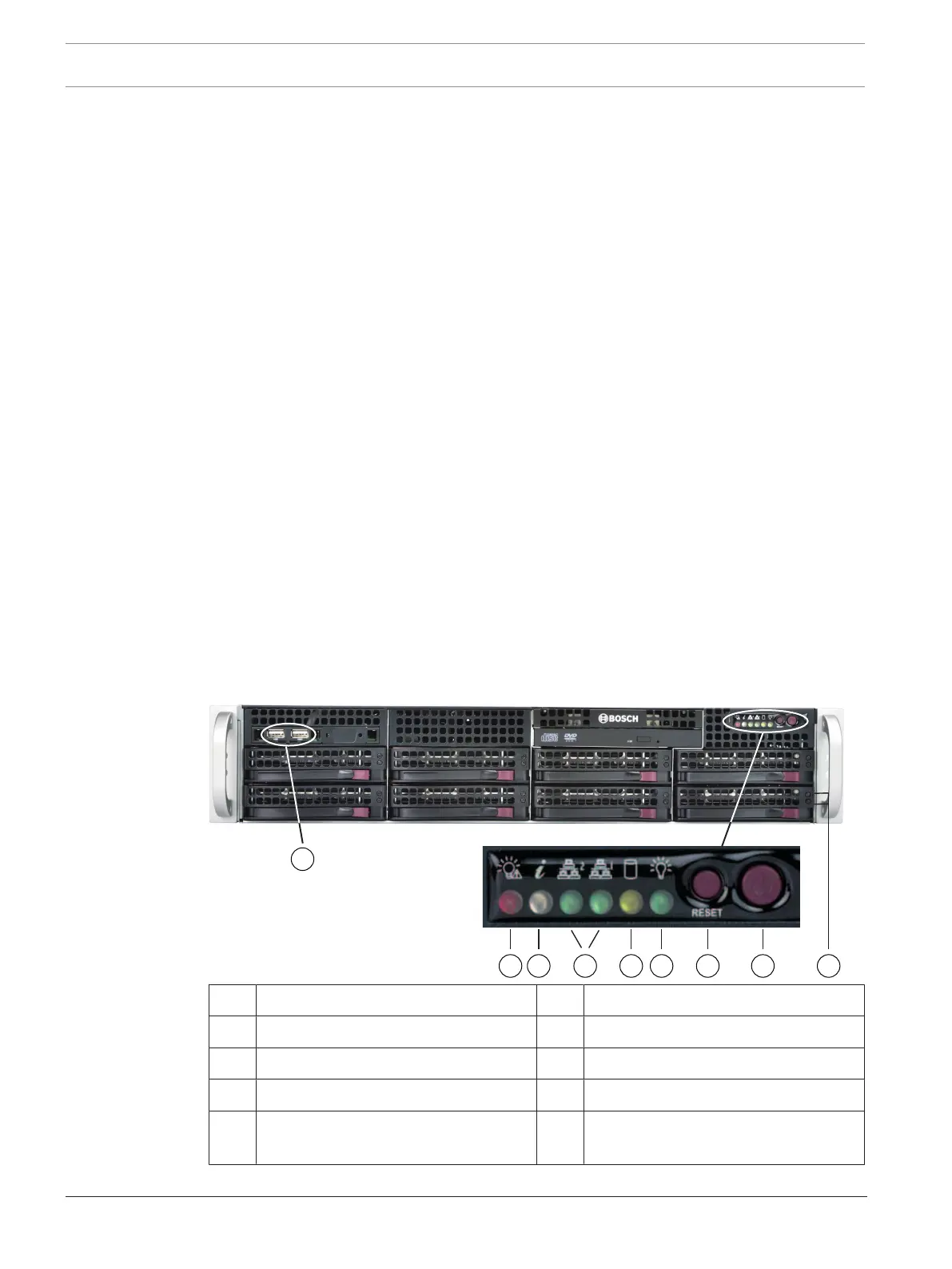

Front view:
9
2
6
3
7
4 5
1
8
1 2x USB2.0 ports 2 Power failure
3 Information LED 4 NIC1/NIC2
5 HDD (drive activity) 6 Power
7 Reset 8 Power on/off
9 Drive carrier LEDs (green: access to
this drive/red: drive failure)

Bosch DIVAR IP 7000 Specifications

General

Microphone in	Yes
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Wi-Fi	No
Ethernet LAN data rates	10, 100, 1000 Mbit/s
RAID levels	5, 6
Storage drive size	3.5 \
Storage drive capacity	120 GB
Storage drive interface	-
Installed storage drive type	SSD
Supported storage drive types	HDD & SSD
Total installed storage capacity	0.24 TB
Number of storage drives supported	10
Bus type	QPI
Stepping	C0
Scalability	1S
Processor code	SR14S
Processor cache	8 MB
Processor model	E3-1275V3
System bus rate	- GT/s
Processor series	Intel Xeon E3-1200 v3
Processor socket	LGA 1150 (Socket H3)
Processor threads	8
Processor codename	Haswell
Processor frequency	3.5 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor package size	37.5 x 37.5 mm
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor boost frequency	3.9 GHz
Processor operating modes	64-bit
PCI Express configurations	1x16, 2x8, 1x8+2x4
Thermal Design Power (TDP)	84 W
On-board graphics card model	Intel® HD Graphics P4600
Memory bandwidth supported by processor (max)	25.6 GB/s
Maximum internal memory supported by processor	32 GB
Internal memory	8 GB
Memory clock speed	1666 MHz
Internal memory type	DDR3
Thermal solution specification	PCG 2013D
Maximum number of PCI Express lanes	16
Memory types supported by processor	DDR3-SDRAM
Memory channels supported by processor	Dual
Intel Identity Protection Technology version	1.00
Chassis type	Rack (2U)
Cooling type	Active
Product color	Black
Number of fans	2 fan(s)
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power supply unit (PSU) capacity	740 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
Type	Storage server
Optical drive type	DVD-RW
Operating system installed	Windows Storage Server 2012 R2
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1250 MHz
Certification	CE, UL
Processor ARK ID	75464

Weight and Dimensions

Depth	648 mm
Width	437 mm
Height	89 mm
Weight	23600 g
