20 en | Rack installation DIVAR IP 7000 (2U)
2016.07 | V2 | DOC Installation Manual Bosch Sicherheitssysteme GmbH
– an inner fixed chassis rail that secures directly to the chassis
– an outer fixed rack rail that secures directly to the rack itself.

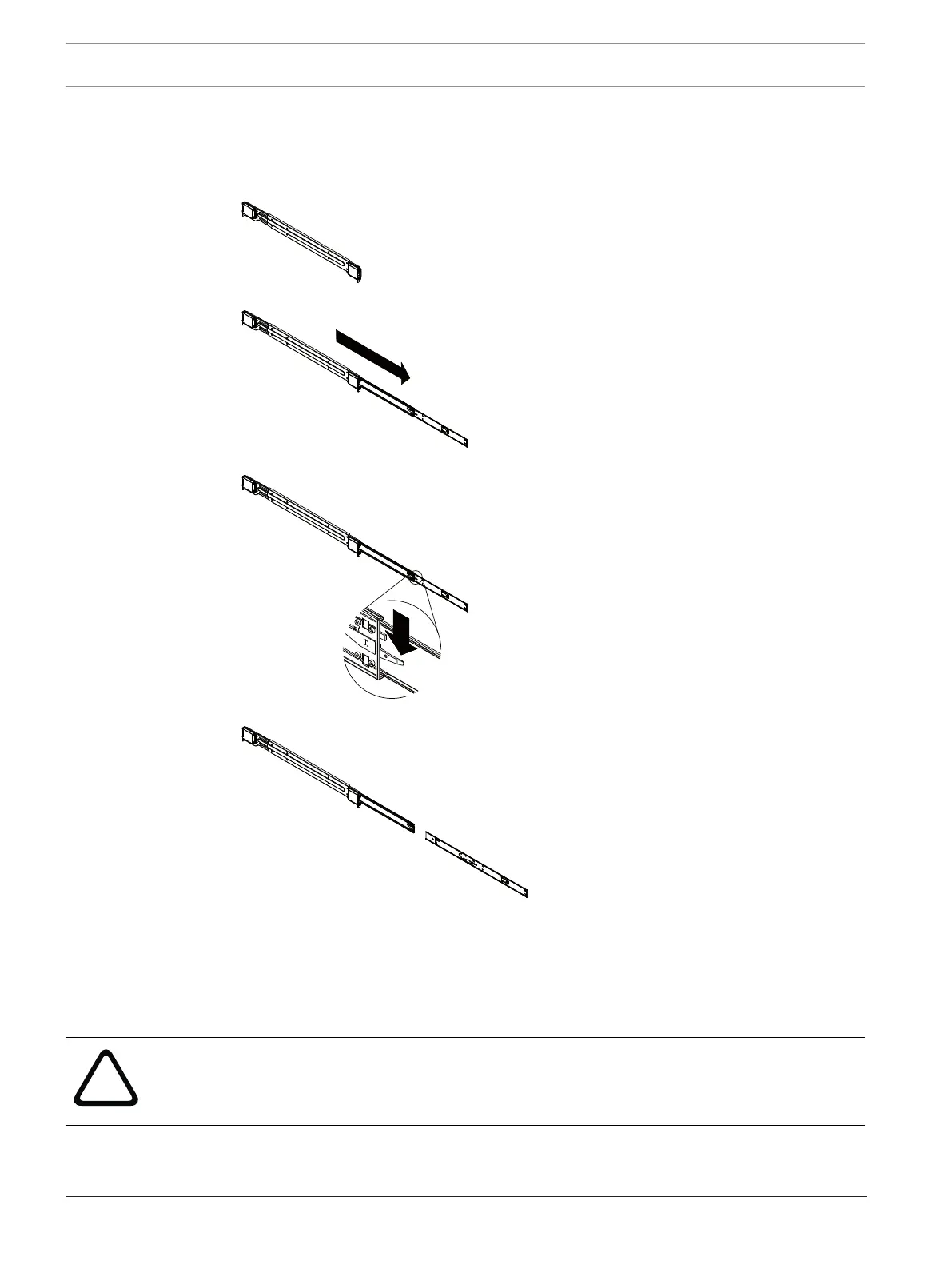

To separate the inner and outer rails:
1. Locate the rail assembly in the chassis packaging.
2. Extend the rail assembly by pulling it outward.
3. Press the quick-release tab.
4. Separate the inner rail extension from the outer rail assembly.
4.3.2 Installing the inner rails on the chassis
The chassis includes a set of inner rails in two sections: inner rails and inner rail extensions.
The inner rails are pre-attached to the chassis, and do not interfere with normal use of the
chassis if you decide not to use a server rack. The inner rail extension is attached to the inner
rail to mount the chassis in the rack.
Caution!
Do not pick up the chassis with the front handles. They are designed to pull the system from
a rack only.
