DS484Q/DS486Q | Installation Instructions | 5.0 Walk Test
16 Bosch Security Systems, Inc. | 7/05 | 4998138530F
5.0 Walk Test
Walk across the beam path directly in front of one of the detectors. The ALARM LED should activate. If not, the
beam interrupt time is set too low or the alignment is not correct.
Walk across the beam path in several locations between the detectors (Figure 24).Each time you cross the beam
path, the ALARM LED should activate. If not, the beam interrupt time is set too low or the alignment is not
correct.

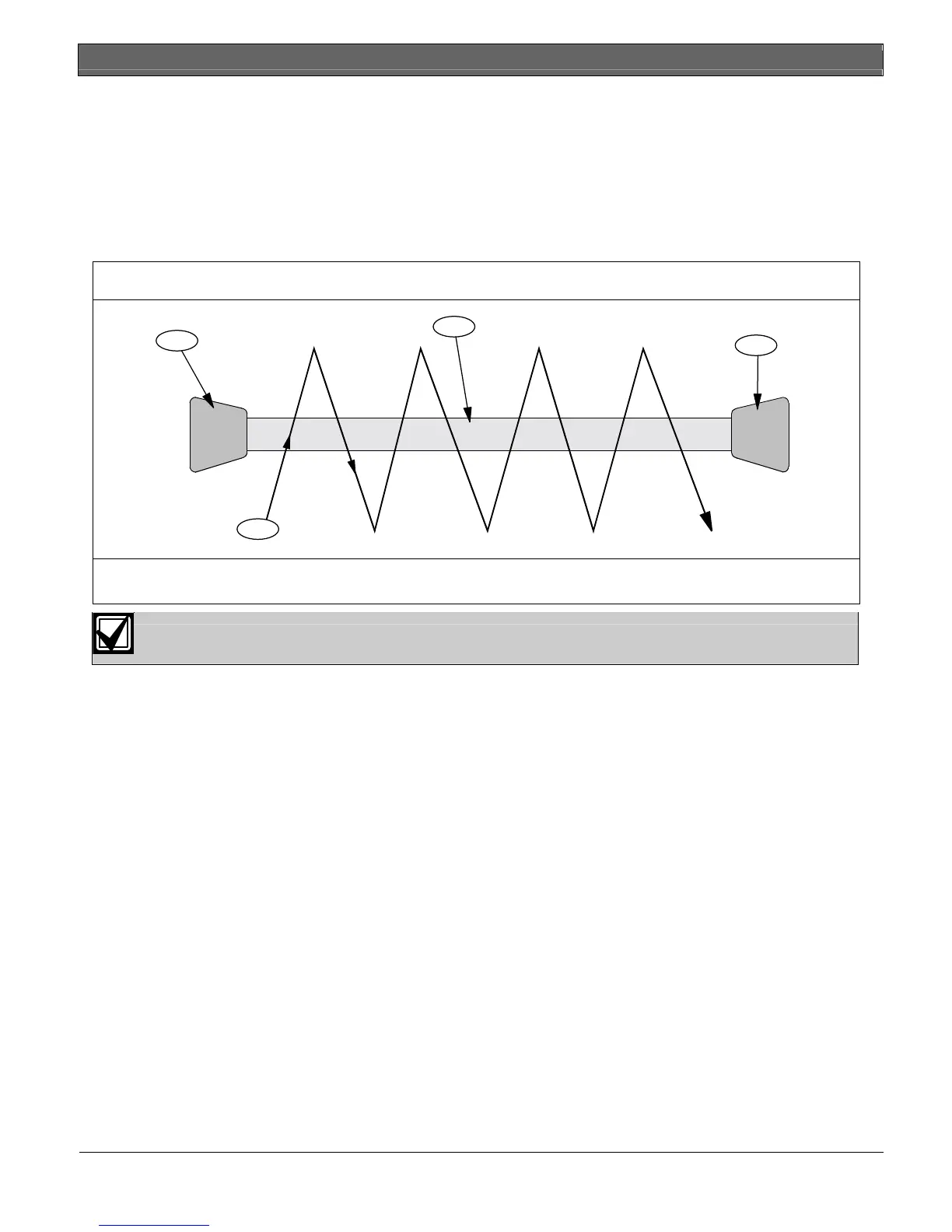

Figure 24: Walk Test Pattern
4
1
2
3
1 - Receiver
2 - Transmitter
3 - Beam path
4 - Crossing the beam path
Inspect the system and perform a walk test at least once a year.
