6.0 Stacking Information
When stacking two or more sets, use the group and channel settings shown in Figure 25. The correct DIP switch
settings are shown for each transmitter and receiver.

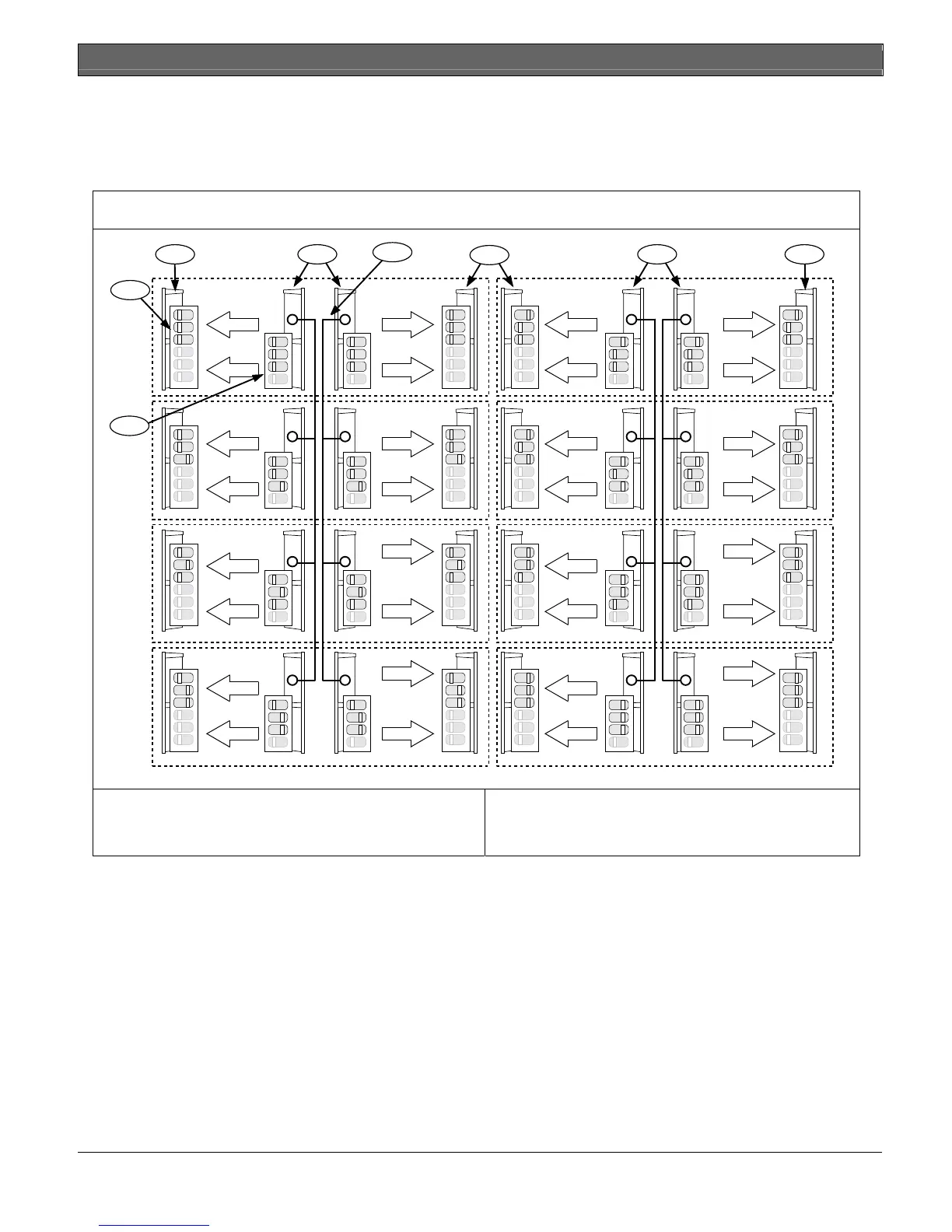

Figure 25: Examples of Stacking Multiple Transmitter and Receiver Sets
2
3
1
2
4
5
M
1
2
3
11
1 - Receiver
2 - Transmitter
3 - Synchronized wiring
4- Receiver DIP switches
5 - Transmitter DIP switches
Each top line set must be set to Channel M, and the other line sets to Channels 1, 2, or 3 to avoid incorrect
communication between the stacking sets.
