DS484Q/DS486Q | Installation Instructions | 1.0 Overview
2 Bosch Security Systems, Inc. | 7/05 | 4998138530F
1.0 Overview
1.1 Description
The DS484Q and DS486Q are photoelectric quad beam detectors that use four pulsed infrared beams to activate
an alarm relay upon detection of an intruder. Both models contain a transmitter that emits an invisible infrared
beam, and a receiver. If the beam is broken, the receiver signals an alarm. Multiple channel operation provides
increased system flexibility by allowing multiple devices to be used near each other without cross-talk or other
interference.
1.2 Components

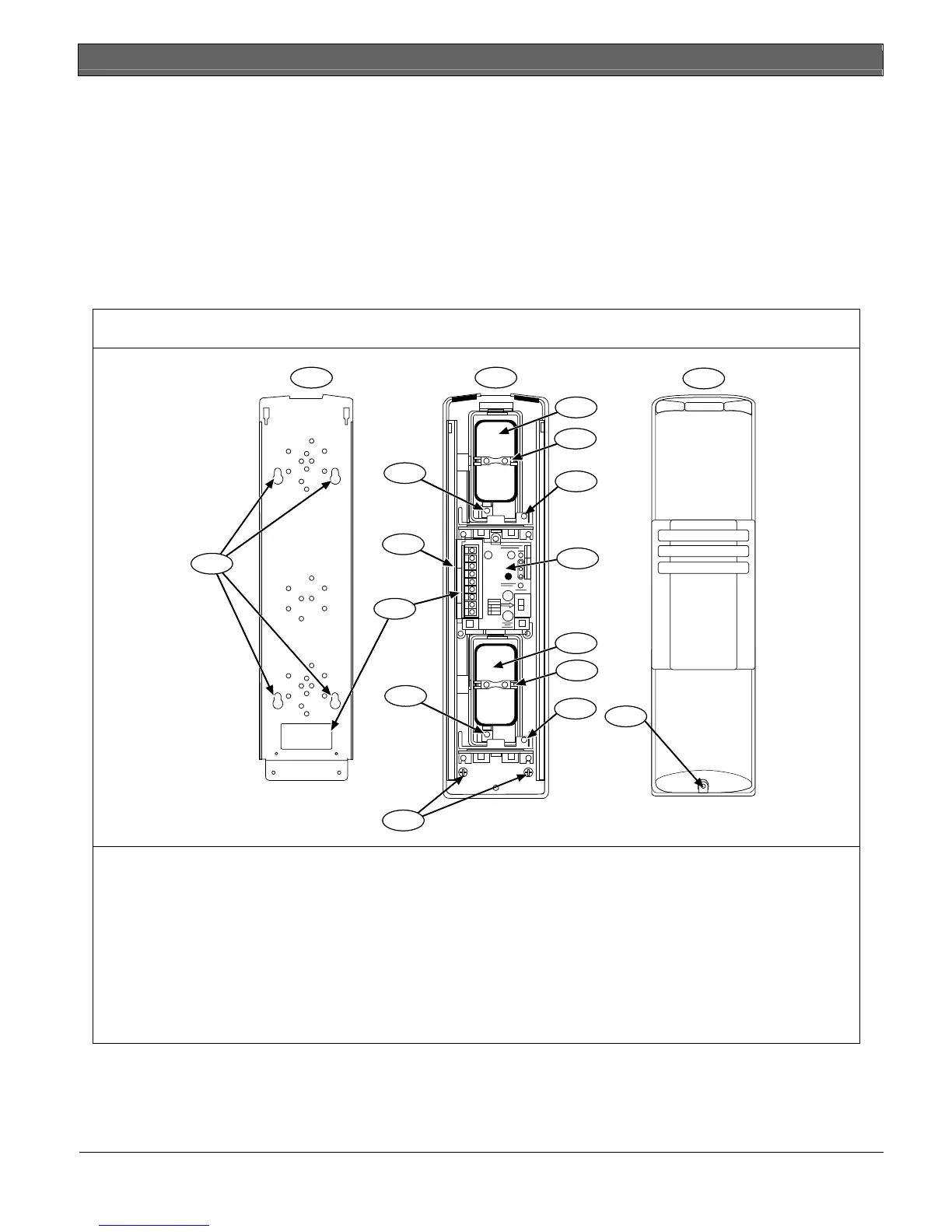

Figure 1: DS484Q/DS486Q Components
1 2
3
12
17
11
10
6
7
8
5
13
14
15
16
9
4
1 - Chassis
2 - Base
3 - Cover
4 - Mounting holes
5 - Vertical adjustment screw (upper)
6 - Terminal block (transmitter has five terminals,
receiver has nine terminals)
7 - Wire entrance
8 - Vertical adjustment screw (lower)
9 - Base mounting screws
10 - Optical module (upper)
11 - Scope (upper)
12 - Horizontal adjustment screw (upper)
13 - Operation panel (refer to Figure 2 or Figure 3)
14 - Optical module (lower)
15 - Scope (lower)
16 - Horizontal adjustment screw (lower)
17 –Cover mounting screw
