Bosch FPP-RNAC-8A-4C - AC Power Connections; Install Ferrite Core

FPP-RNAC-8A-4C | Operation and Installation Guide |
.
Bosch Security Systems, Inc. | 8/09 | F01U025431-02 9

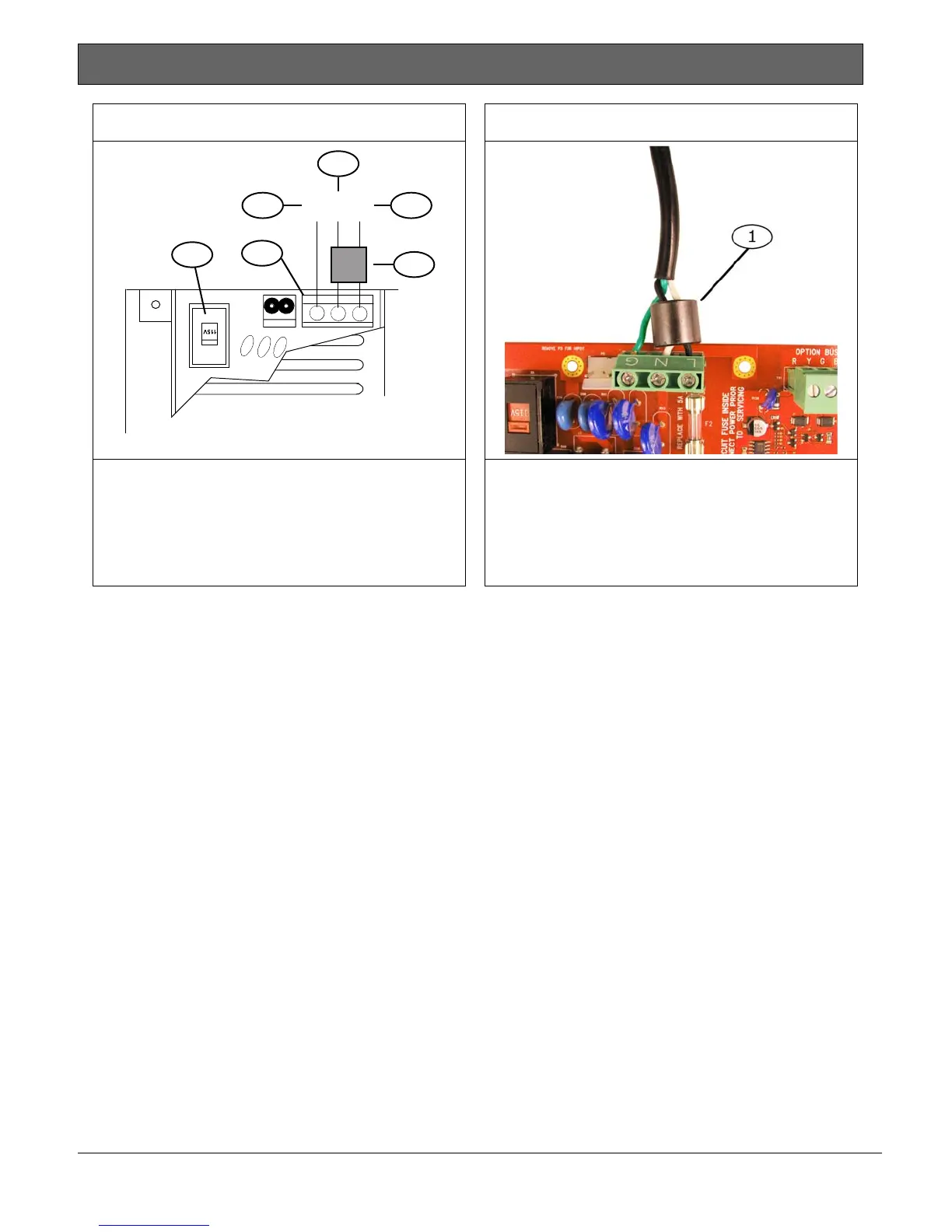

Figure 3: AC Power Connections Figure 4: Install Ferrite Core
LNG
1
2
3
4
5
6
1 AC input select switch
2 AC power terminal
3 Ground
4 Neutral
5 Line (120 VAC or 240 VAC)
6 Ferrite core
1 Ferrite core
Install the Line and Neutral power connections through the ferrite core as shown in
Figure 4.
