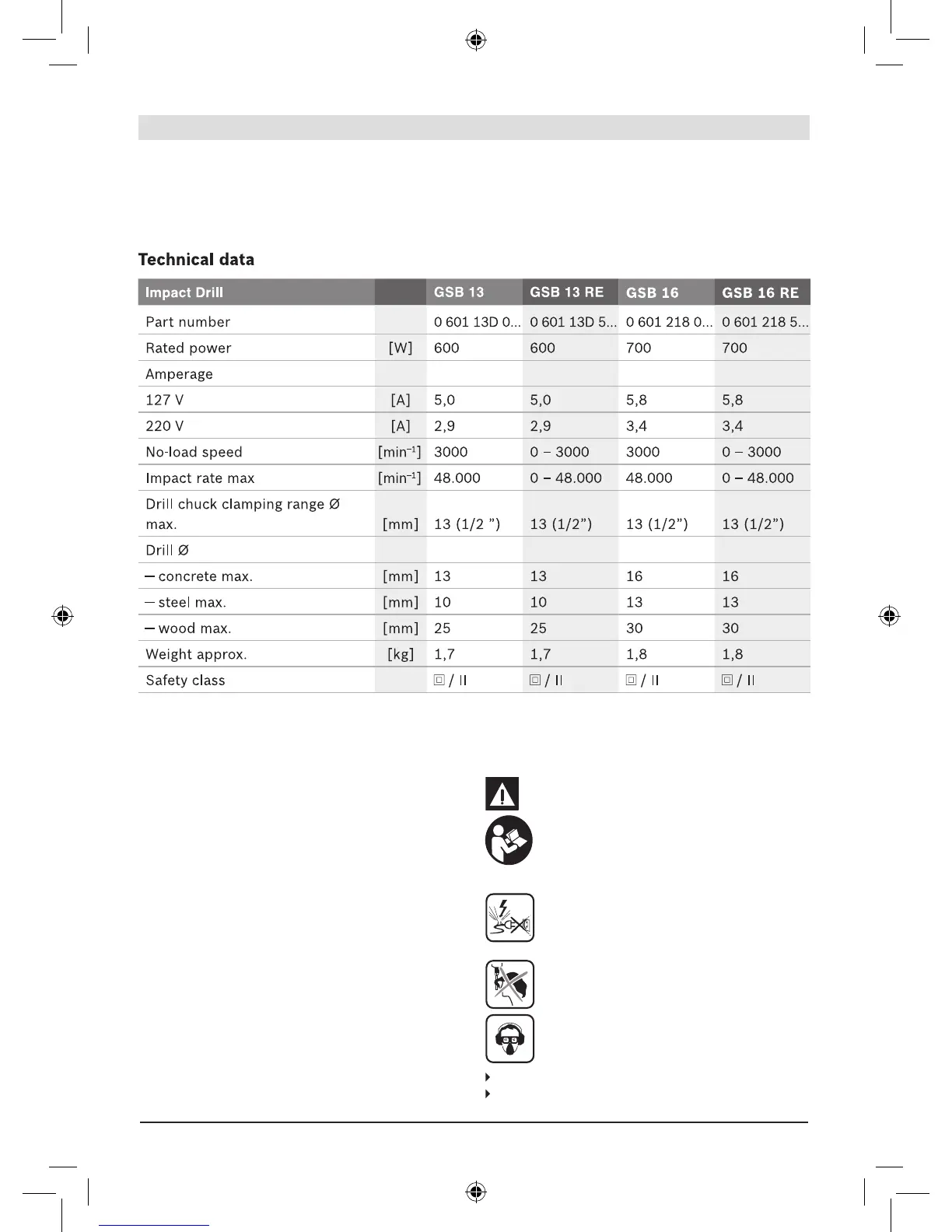

F 000 622 255 | 09.2011 Bosch Power Tools
14 | English
b) In case of consuming of the carbon brushes to send
the tool by assistance authorized technique for
substitution. Carbon brushes are of specify them cause
damages to the motor of the tool.
c) If the power cord is damaged, the power cord shall be
replaced by manufacturer, service or qualified person to
avoid the risk of electrical shock.
Machine elements
1 Key chuck
2 “Drilling/Impact Drilling” selector switch
3 Lock-on button for On/Off switch
4 On/Off switch
5 Thumwheel for speed preselection (GSB 16 RE)
6 Rotational direction switch (GSB 13 RE and GSB 16 RE)
7 Winger screw for depth stop adjustment
8 Winged screw for auxiliary handle adjustment
9 Auxiliary handle*
10 Depth stop*
11 Chuck key
*Not all of the accessories illustrated or
described are included as standard delivery.
Intended use
The machine is intended for impact drilling in brick, concrete and
stone as well as for drilling in wood, metal, ceramics and plastics.
Machines with electronic control and right/left rotation are also
suitable for screwing and thread-cutting.
Noise/vibration information
Measured values determined according to EN 60 745-1.
Typically the A-weighted noise levels of the product are: sound
pressure level: 99 dB (A); sound power level: 112 dB (A).
Wear ear protection!
The typical weighted acceleration is 16 m/s2.
Safety instructions
Working safely with this machine is possible only
when the operating and safety information are read
completely and the instructions contained therein
are strictly followed. In addition, the general safety
instructions on page 15 must be followed. Before
using for the first time, ask for a practical
demonstration.
If the mains cable is damaged or cut through while
working, do not touch the cable but immediately pull
the mains plug. Never use the machine with a
damaged cable.
For long hair, wear hair protection.
Work only with closely fitting clothes.
Wear ear protection.
Wear safety goggles.
Insert the mains plug only when the machine is switched off.
Always direct the cable to the rear away from the machine.
Manual GSB 13 e GSB 16_Professional.indd 14 29/11/11 09:38
