513/4"
(1314mm)
263/4"
(680ram)
2413/16"
(630ram)
24"
(610ram)
511/8"
(1299mm)
493/4"
(1264mm)
237/8" (606ram)
22" (559mm)
93/4"
(248mm)
251/2"
(648mm)

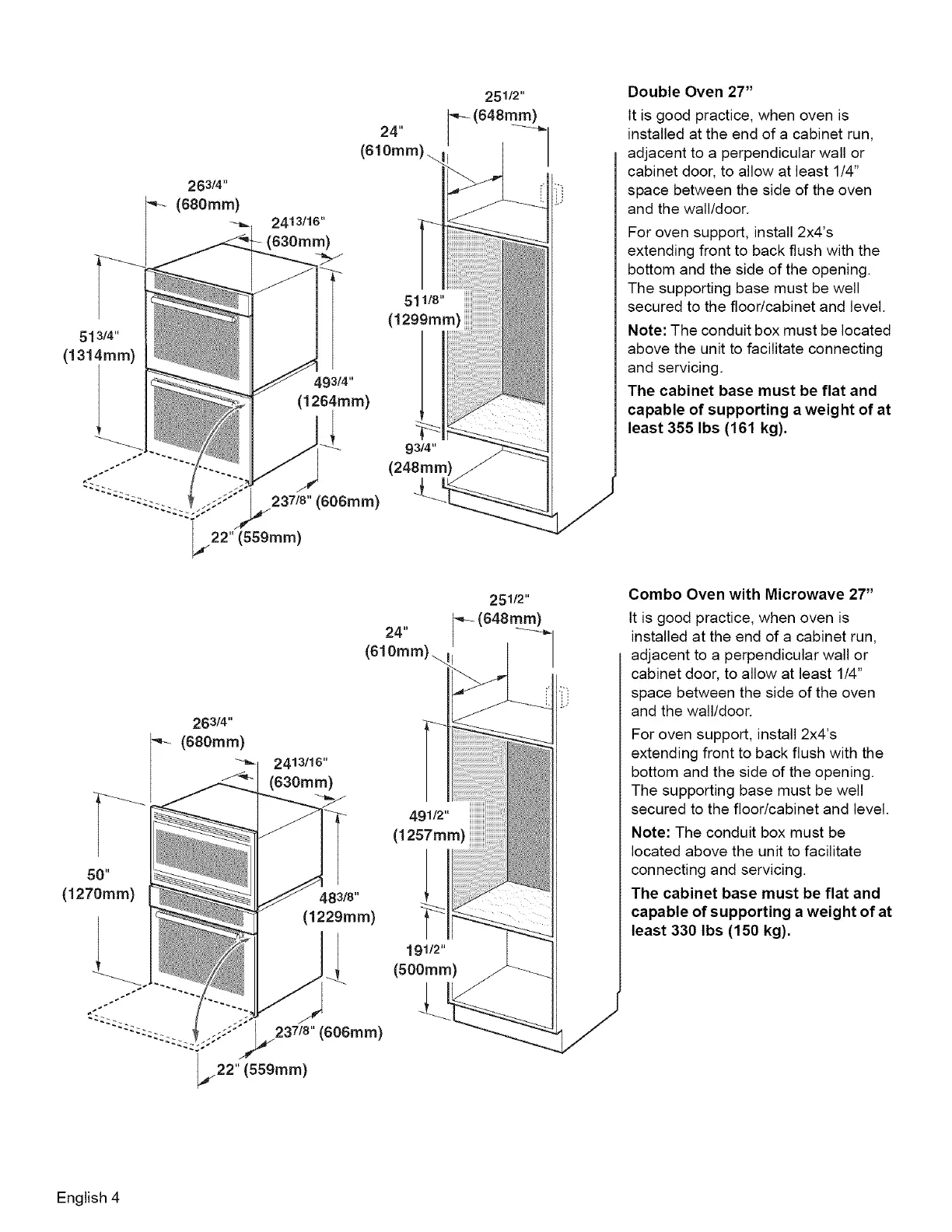

Double Oven 27"
It is good practice, when oven is
installed at the end of a cabinet run,
adjacent to a perpendicular wall or
cabinet door, to allow at least 1/4"
space between the side of the oven
and the wall/door.
For oven support, install 2x4's
extending front to back flush with the
bottom and the side of the opening.
The supporting base must be well
secured to the floor/cabinet and level.
Note: The conduit box must be located
above the unit to facilitate connecting
and servicing.
The cabinet base must be flat and
capable of supporting a weight of at
least 355 Ibs (161 kg).
263/4"
(680ram)
2413/16"
(630ram)
50"
(1270mm)
483/8"
(1229mm)
237/8" (606ram)
22" (559mm)
491/2"
(1257mm)
191/2"
(500ram)
251/2"
(648mm)
Combo Oven with Microwave 27"
tt is good practice, when oven is
installed at the end of a cabinet run,
adjacent to a perpendicular wall or
cabinet door, to allow at least 1/4"
space between the side of the oven
and the wall/door.
For oven support, install 2x4's
extending front to back flush with the
bottom and the side of the opening.
The supporting base must be well
secured to the floor/cabinet and level.
Note: The conduit box must be
located above the unit to facilitate
connecting and servicing.
The cabinet base must be flat and
capable of supporting a weight of at
least 330 Ibs (150 kg).
English 4
