263/4"
(680ram)
613/8"
24"
603/4"
(1543mm)
595/8"
(1514mm)
93/4"
(248mm)
251/2"

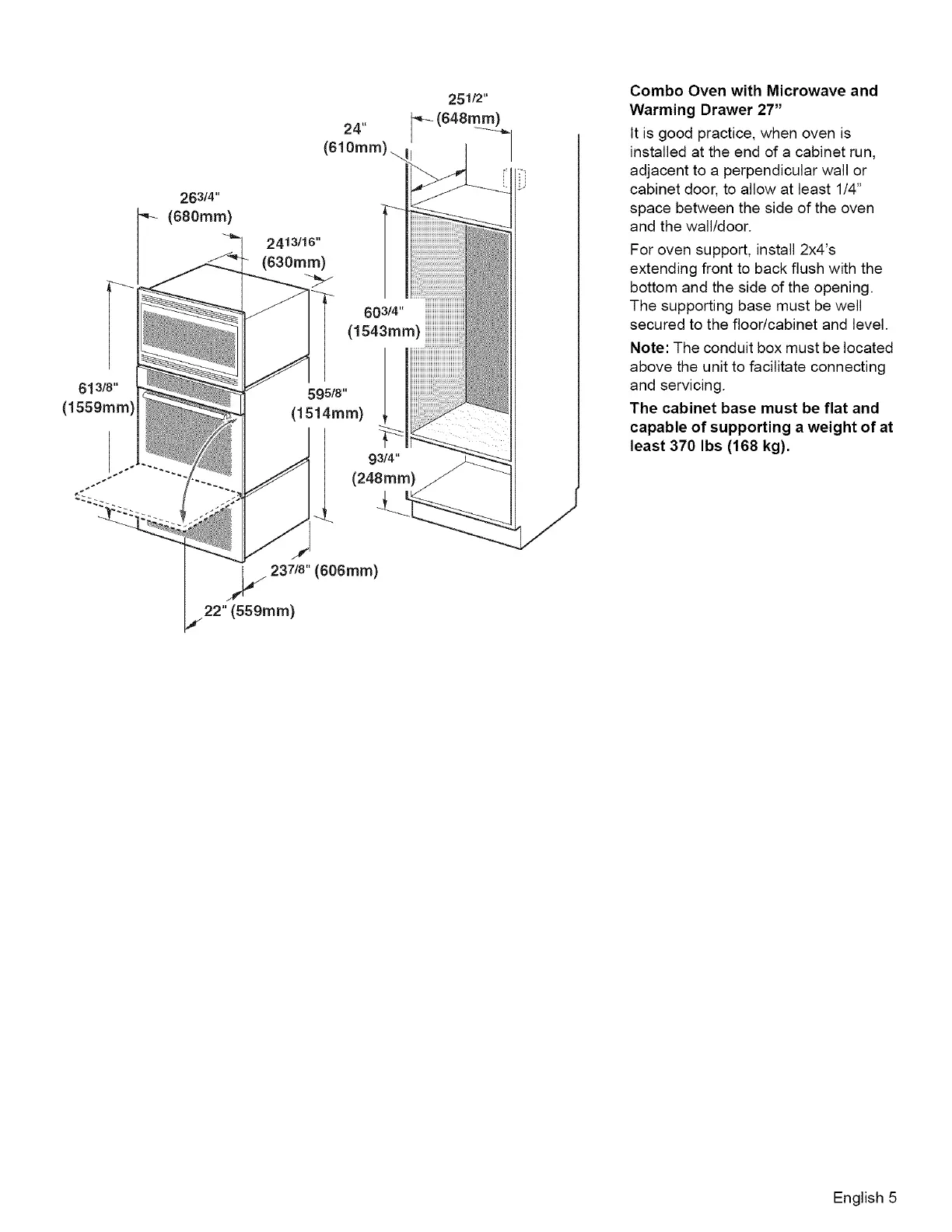

Combo Oven with Microwave and
Warming Drawer 27"
It is good practice, when oven is
installed at the end of a cabinet run,
adjacent to a perpendicular wall or
cabinet door, to allow at least 1/4"
space between the side of the oven
and the wall/door.
For oven support, install 2x4's
extending front to back flush with the
bottom and the side of the opening.
The supporting base must be well
secured to the floor/cabinet and level.
Note: The conduit box must be located
above the unit to facilitate connecting
and servicing.
The cabinet base must be flat and
capable of supporting a weight of at
least 370 Ibs (168 kg).
._ 237/8" (606ram)
(559mm)
English 5
