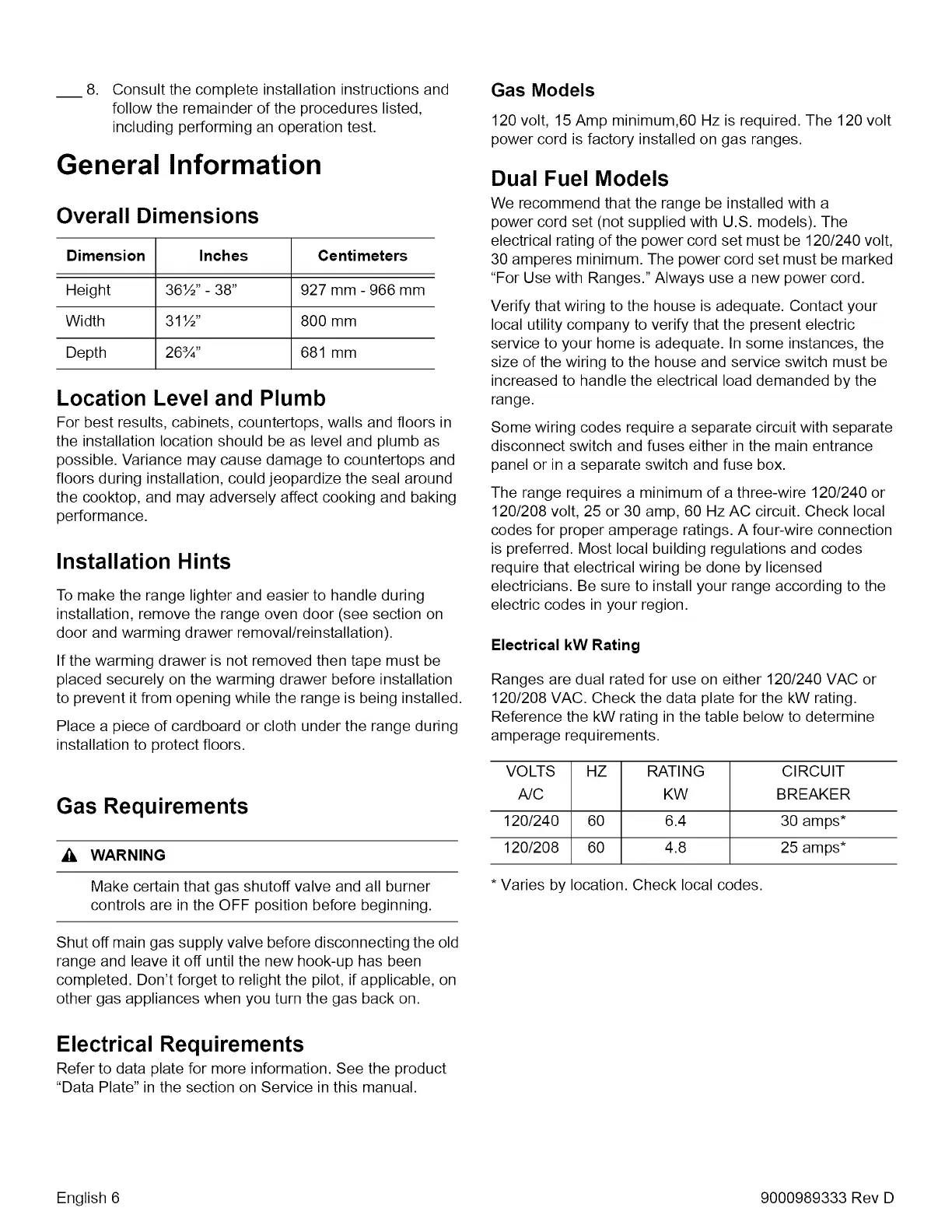

___ 8. Consult the complete installation instructions and
follow the remainder of the procedures listed,
including performing an operation test.
General Information
Overall Dimensions
Dimension Inches Centimeters
Height 36%” - 38” 927 mm - 966 mm
Width 31%” 800 mm
Depth 267%” 681mm
Location Level and Plumb
For best results, cabinets, countertops, walls and floors in
the installation location should be as level and plumb as
possible. Variance may cause damage to countertops and
floors during installation, could jeopardize the seal around
the cooktop, and may adversely affect cooking and baking
performance.
Installation Hints
To make the range lighter and easier to handle during
installation, remove the range oven door (see section on
door and warming drawer removal/reinstallation).
If the warming drawer is not removed then tape must be
placed securely on the warming drawer before installation
to prevent it from opening while the range is being installed.
Place a piece of cardboard or cloth under the range during
installation to protect floors.
Gas Requirements
A WARNING
Make certain that gas shutoff valve and all burner
controls are in the OFF position before beginning.
Shut off main gas supply valve before disconnecting the old
range and leave it off until the new hook-up has been
completed. Don’t forget to relight the pilot, if applicable, on
other gas appliances when you turn the gas back on.
Electrical Requirements
Refer to data plate for more information. See the product
“Data Plate’ in the section on Service in this manual.
English 6
Gas Models
120 volt, 15 Amp minimum,60 Hz is required. The 120 volt
power cord is factory installed on gas ranges.
Dual Fuel Models
We recommend that the range be installed with a
power cord set (not supplied with U.S. modeis). The
electrical rating of the power cord set must be 120/240 volt,
30 amperes minimum. The power cord set must be marked
“For Use with Ranges.” Always use a new power cord.
Verify that wiring to the house is adequate. Contact your
local utility company to verify that the present electric
service to your home is adequate. In some instances, the
size of the wiring to the house and service switch must be
increased to handle the electrical load demanded by the
range.
Some wiring codes require a separate circuit with separate
disconnect switch and fuses either in the main entrance
panel or in a separate switch and fuse box.
The range requires a minimum of a three-wire 120/240 or
120/208 volt, 25 or 30 amp, 60 Hz AC circuit. Check local
codes for proper amperage ratings. A four-wire connection
is preferred. Most local building regulations and codes
require that electrical wiring be done by licensed
electricians. Be sure to install your range according to the
electric codes in your region.
Electrical kW Rating
Ranges are dual rated for use on either 120/240 VAC or
120/208 VAC. Check the data plate for the kW rating.
Reference the kW rating in the table below to determine
amperage requirements.
VOLTS HZ RATING CIRCUIT
AIC KW BREAKER
120/240 | 60 6.4 30 amps*
120/208 | 60 4.8 25 amps*
*Varies by location. Check local codes.
9000989333 Rev D
