Parts provided:
Installations)
Note: not necessary for Canadian installations
Tools and parts needed:
Canadian installations)
concrete screws)
Additional Parts Needed For
Hard Wire Installations
Note: Power Supply Cord Kit Not Necessary For
Hard Wire Installations
Cabinet Requirements
walls and projecting surfaces constructed of com-
between cabinets where range is to be installed
(0.47" (12 mm) clearance from range sidewall to
cabinet required in Canada).
30” (76.2 cm) Minimum
between cabinets

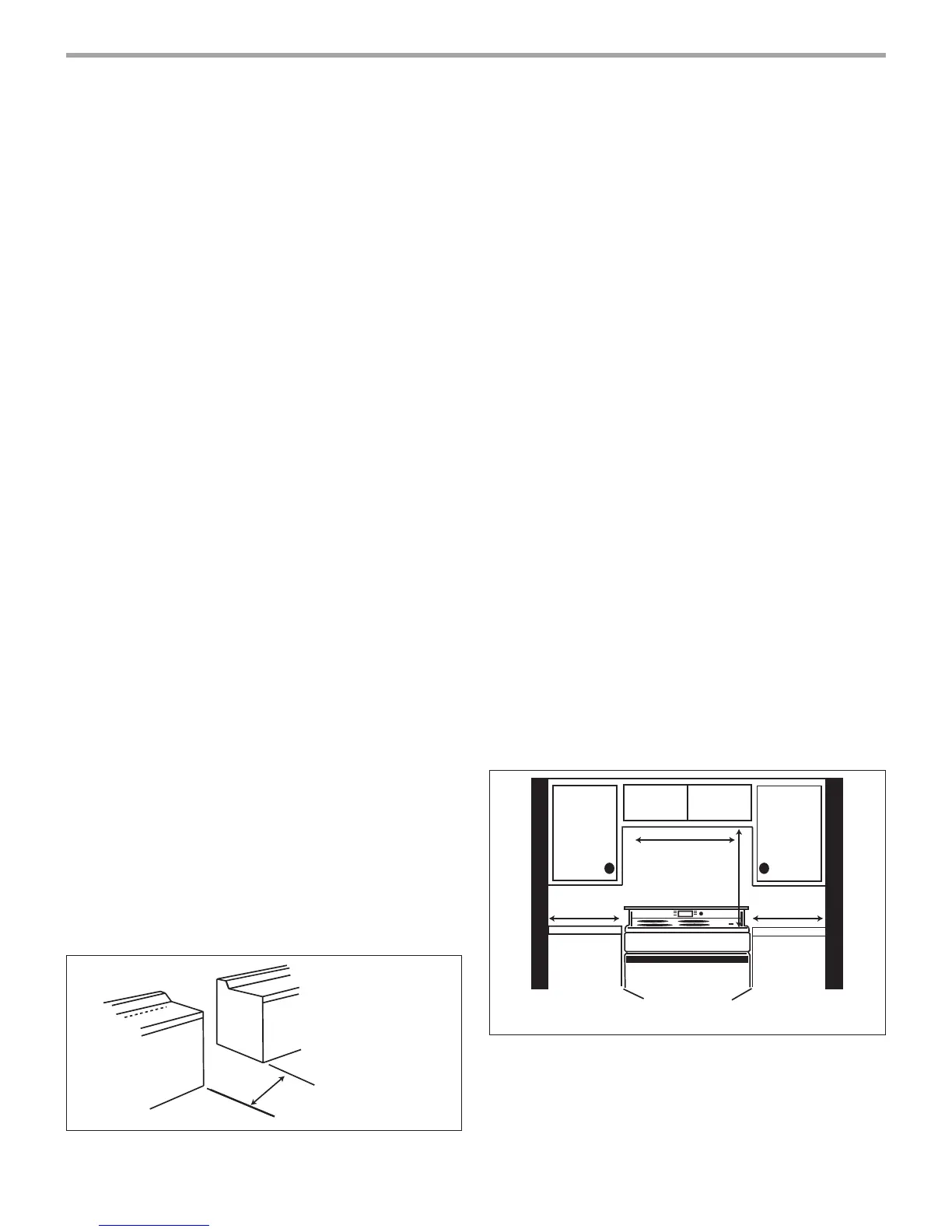

Required Clearances:
measure 36" (91.4 cm) high x 24" (61 cm) deep.
Cabinets over the cooking surface and cabinets adja-
cent to those over the cooking surface measure 13"
(33 cm) deep from backwall. If nonstandard cabinets
are used, care should be taken to alter dimensions
accordingly.
Note: -
self-cleaning ovens; the cabinets may discolor or
stain.
From cooktop to materials above:
between the top of the cooking surface and the bot-
tom of an unprotected wood or metal cabinet.
24" (61 cm) is acceptable when the bottom of the
wood or metal cabinet is protected by
material which must be covered with
aluminum or copper.
From range walls to adjacent materials:
No clearance is required from unit walls to adjacent
vertical combustible walls on rear, right or left.
Clearance from range top to adjacent vertical walls
must be at least 4" (10.2 cm).
30in (76.2 cm )
min. centered
30in (76.2 cm) min.
4in (10.2 cm)
min
4in
(10.2 cm
)
min
no clearance required (12 mm clearance from
range sidewall to cabinet required in Canada.)
