Bosch Integra 500 - Appliance Overview and Specifications

6 720 680 226
4
Appliance details
FCC:
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired opera-
tion.
Fig. 1
2 Appliance details
2.1 Features
Parts
• Key Pad interface control
• High power pre-mix compact burner with low NOx
emissions
• Modulating Gas Valve with constant gas:air ratio
control
• Modulating water valve for improved comfort and
temperature control.
High quality materials for long working life
• Copper heat exchanger
• High efficiency Ceramat Burner
• Compact space saver: mounts on a wall with a
supplied bracket.
Features
• Easily removable one-piece cover
• LCD Display with backlight
• On/Off and Temperature control switches
• Reset button
• Program button (Selectable temperature default)
• Failure codes for easy diagnostics and repair
• Real-time diagnostics for troubleshooting/informa-
tional purposes.
Accessories (Bosch part #)
• Optional wireless remote control to operate with the
appliance (TSTAT2)
• Cascading kit (TLINK)
• Outdoor kit (BSHTOK)
• External water filter (part # 8 703 305 356)
• Concentric termination kit (196016)
• Freeze prevention kit (7709003665)
1)
• Exhaust/Intake bird screen (L2594)
• Condensate drain tee (196061) [included with Con-
centric termination kit].
Warning: If a relief valve discharges pe-
riodically, this may be due to thermal ex-
pansion in a closed water supply
system. Contact the water supplier or
local plumbing inspector on how to cor-
rect this situation. Do not plug the relief
valve.

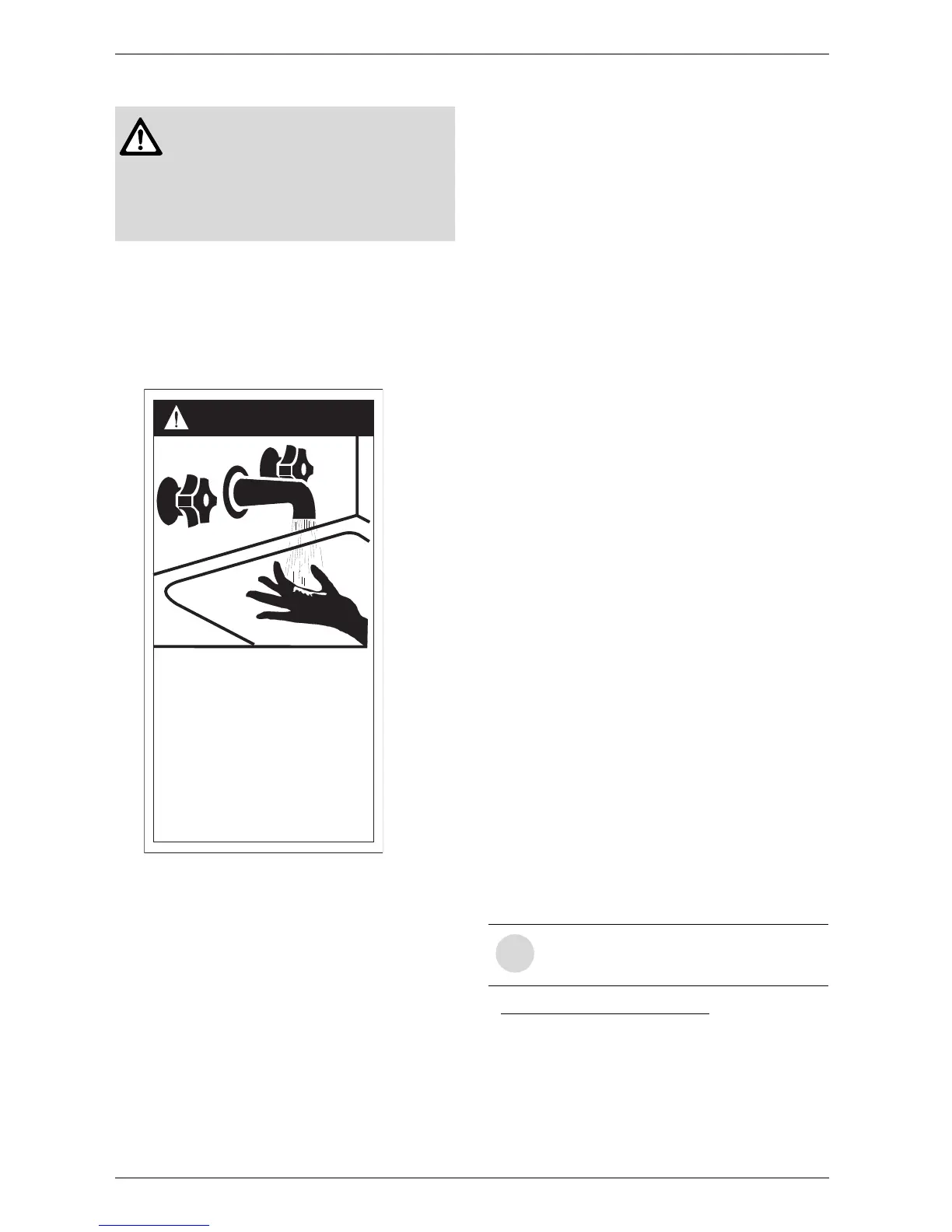

HOT
BURN
D A N G E R
Watertemperatureover125°Fcan
causesevereburnsinstantlyor
deathfromscalds.
Children,disabledandelderlyare
athighestriskofbeingscalded.
Seeinstructionmanualbefore
settingtemperatureatwater
heater.
Feelwaterbeforebathingor
showering.
6720608643-16.1AL
1) The freeze prevention kit is designed to provide
protection for the water heater down to approximately
5°F for short term conditions only. It will not protect the
appliance in areas where the temperature is routinely
expected to be below freezing.
- The freeze prevention kit will not protect plumbing
outside the appliance from freezing. Precautions should
be taken.
i
BOSCH is constantly improving its
products, therefore specifications are
subject to change without prior notice.
