Electrical diagram
47
9 Electrical diagram

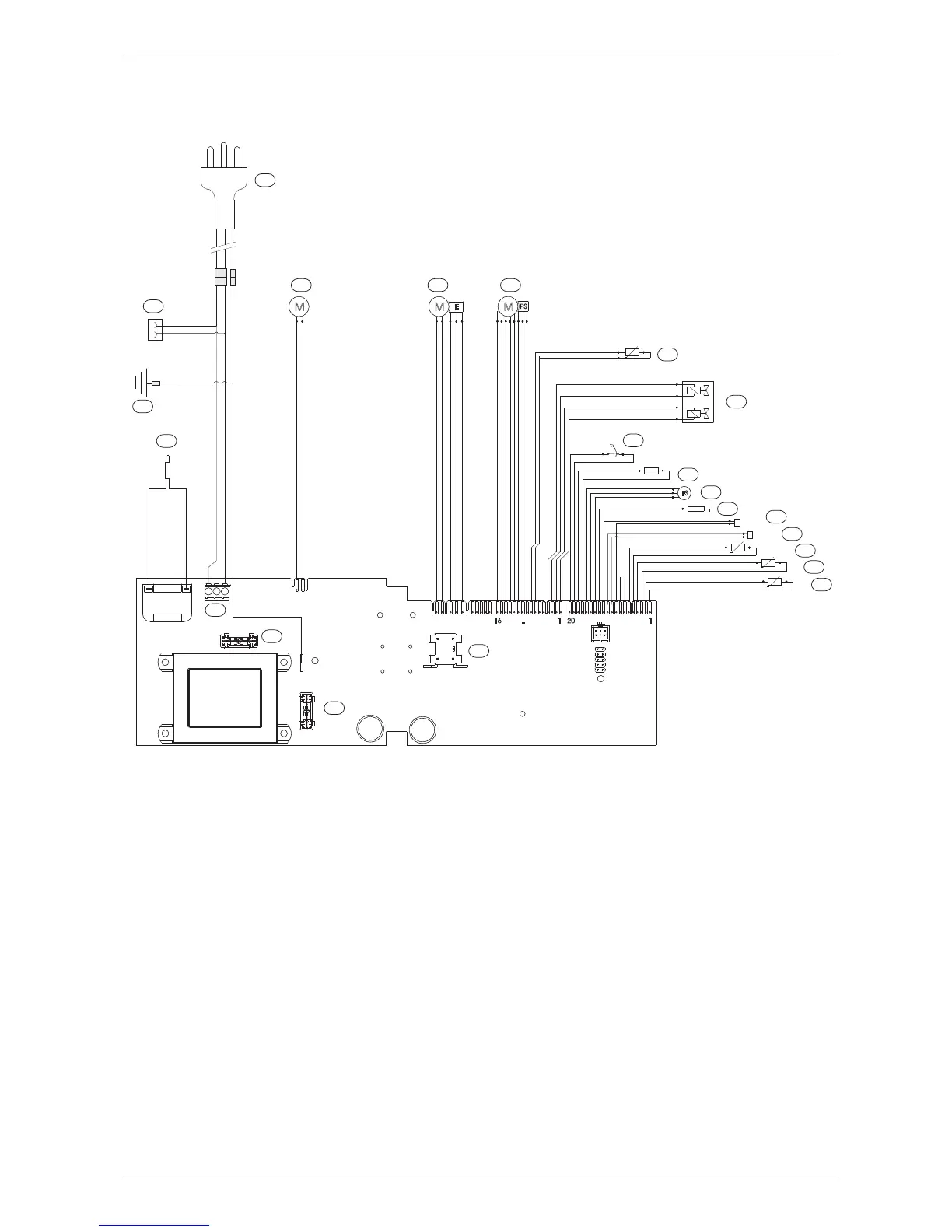

Fig. 65 Electrical scheme
1 Intlet water temperature sensor
2 Outlet water temperature sensor
3 Backflow temperature sensor
4 Cascading output connection
5 Cascading input connection
6 Ionization sensor
7 Water flow sensor
8 Flue gas limiter
9 Heat exchanger overheat sensor (ECO)
10 Gas valve
11 Exhaust temperature sensor
12 Water valve
13 Primary fan
14 ON/OFF switch
15 Secondary fan
16 AC plug
17 Main connection
18 Ignition electrodes
19 Ground post
20 Antifreeze kit connection
21 Fuse
22 Fuse
