Pressure relief valve | DBD 7/12
RD 25710, edition: 2016-07, Bosch Rexroth AG

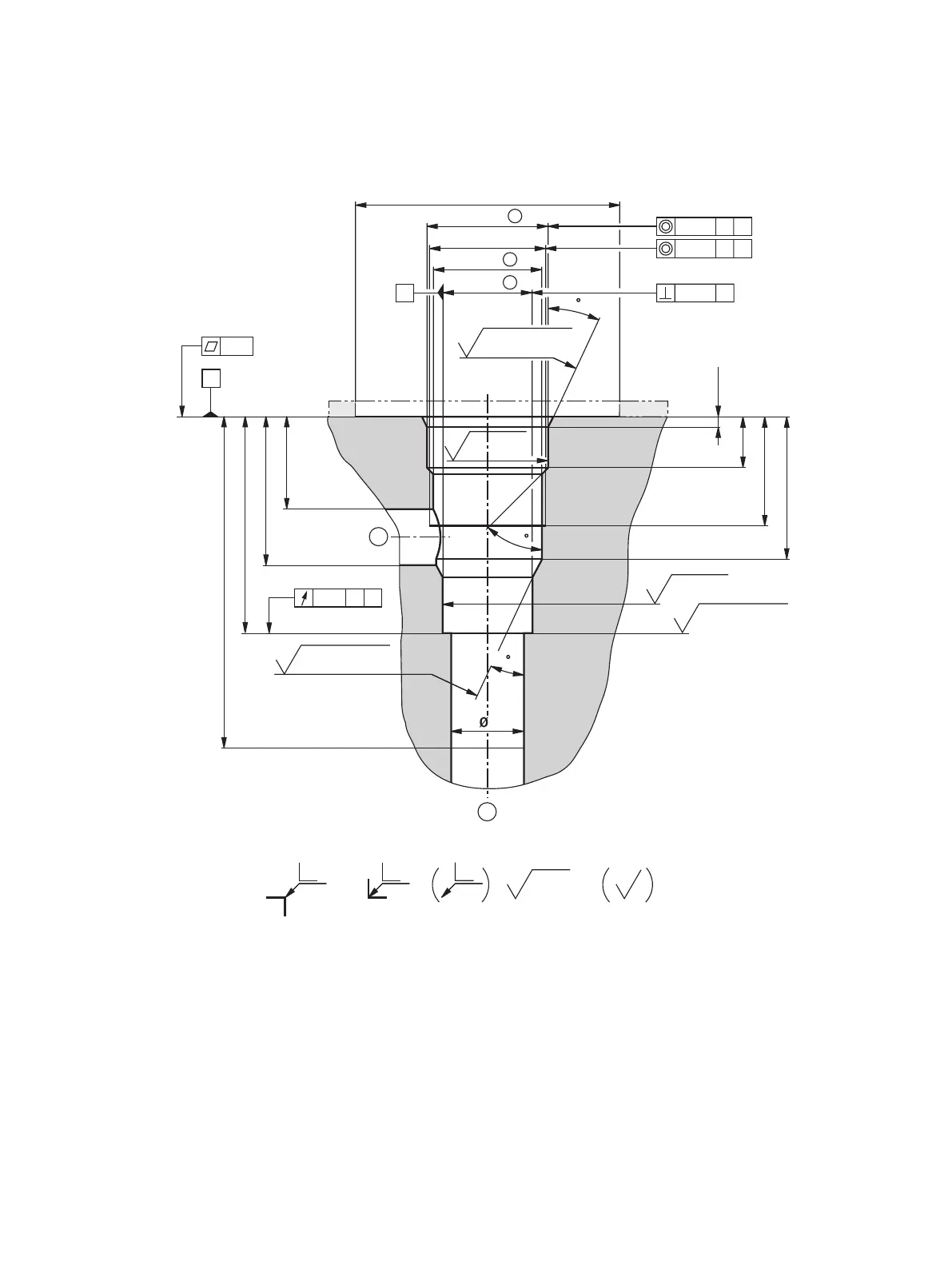

Mounting cavity: R/DBD . 4K; 2 main ports; thread M14 x 1
(dimensions in mm)
1)
Depth for moving parts
2)
All seal ring insertion faces are rounded and free of burrs
3)
With countersink
4)
Visual inspection
① = Main port 1 (P)
② = Main port 2 (T), can optionally be arranged at the
circumference
Tolerance for all angles ±0.5°
