7 Accessories
7.1 Overview
Overview Content and usage
Accessory HAS01 contains:
a) Screws to fix the device in the control cabinet
b) Adhesive labels with notes on safety in the English and French
languages. Place the adhesive labels clearly visibly at the device
or in the immediate vicinity of the device, if the adhesive labels ex‐
isting at the device are hidden by neighboring devices.
c) Contact bars for connecting
● the DC bus
● the control voltage supply
● For high-performance devices, there are additional elements
which increase the current carrying capacity of the DC bus
connections and which are screwed to the contact bars:
d) Joint bar to connect the equipment grounding connections of
neighboring devices
The accessory HAS02 is screwed to the bottom of the device and
used to
● connect the motor cable shield to the device
● provide strain relief of the motor cable
The accessory HAS03 (control cabinet adapter) is used to com‐
pensate different mounting depths of devices mounted to a com‐
mon mounting surface.
● Maximum allowed tightening torque: 6 Nm
● Mechanical stability of a device with HAS03 requires the rigid
connection via DC bus contact bars to a neighboring device
without HAS03.

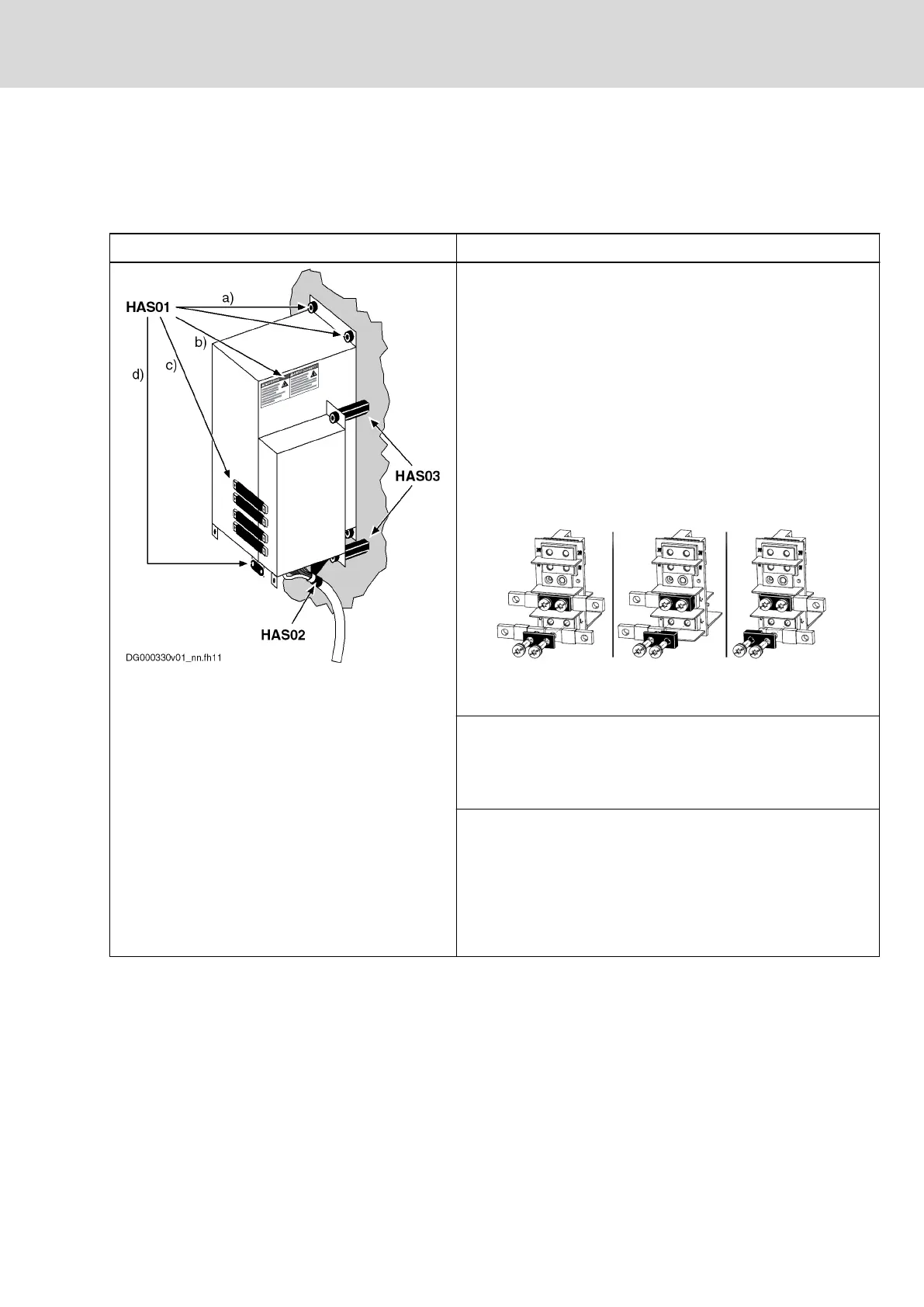

Fig.7-1: Accessories – Overview
DOK-INDRV*-KCU02*UL***-IN01-EN-P
Rexroth IndraDrive Mi Electronic Control System KCU02
Bosch Rexroth AG 59/69
Accessories
