Selecting the Hybrid Cables

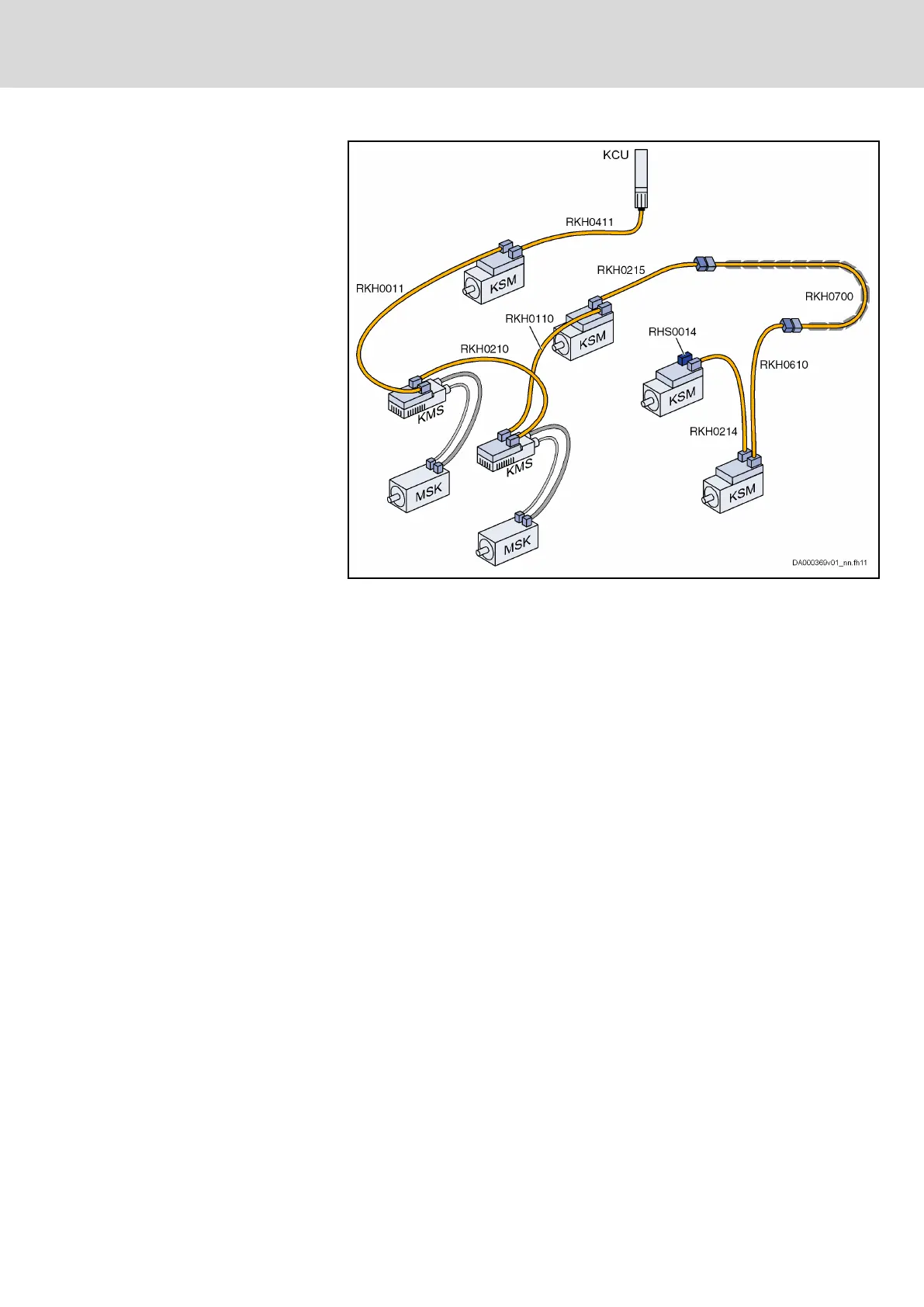

Fig.5-9: Example of Drive System With Hybrid Cable
Each line of drives must be terminated with the terminal connector RHS0014.
All hybrid cables are suited for use in flexible cable tracks. In the example,
cable RKH0700 is used in a flexible cable track. To quickly replace the flexi‐
ble cable track cable for servicing, the cable in the example used in the flexi‐
ble cable track has been equipped with connectors at the inputs.
Identifying the Hybrid Cables
Hybrid cables are labeled according to the following example:
RKH0111/030,5
The cable designation is made up of:
Cable number ⇒ e.g. RKH0111
and
Cable length ⇒ e.g. 30.5 m
Terminal Connector RHS0014
Each line of drives must be terminated at the last connection point X103.2,
using terminal connector RHS0014 (parts number: R911335793). The termi‐
nal connector is not coded.
DOK-INDRV*-KSM02*UL***-IN01-EN-P
Rexroth IndraDrive Mi Distributed Servo Drive KSM02
Bosch Rexroth AG 43/81
Instructions for Use
