Assembly and Connection
L Lay out all connection cables in loops and use strength members for all
cables.

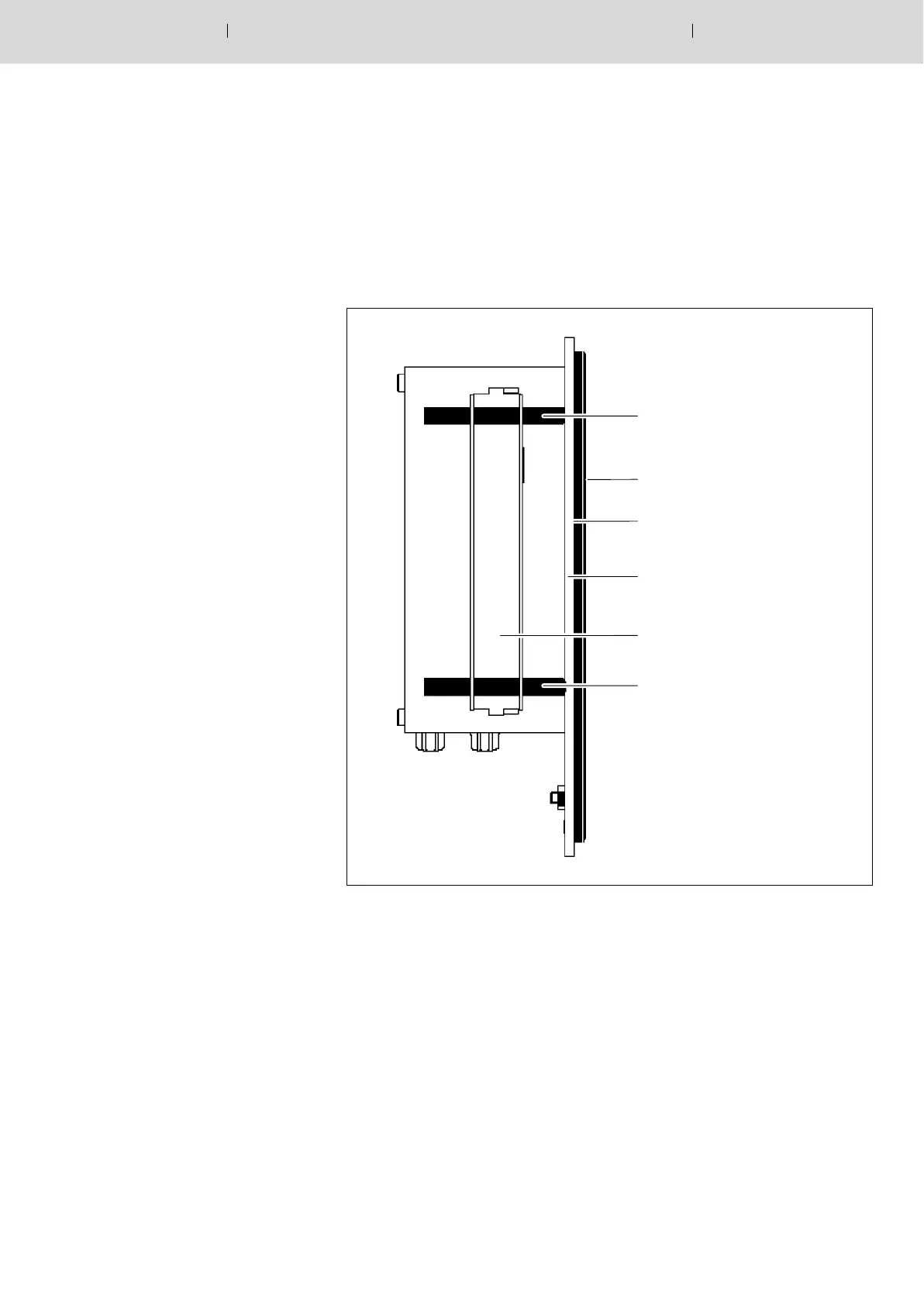

L Fasten the BT 6.190 using the 2 supplied fastening clamps:
1. Insert the device into the mounting hole from the operation side.
2. Hook the fastening clamps into the holes on the side of the BT 6.190
housing.
3. Tighten the setscrews on the fastening clamps.
Front panel
Foam rubber seal
Mounting surface
(1 to 14 mm thick)
Setscrew
DIN 914
M 4x35
Fastening clamp
Setscrew
DIN 914
M 4x35
