V. Theory of Operation
V. Theory of Operation
Water Fill Assemblies
Water Fill Assemblies
Water fill assemblies insure dishwashers fill
properly at various incoming pressures.
Float
switch
Water fill
switch
Diaphragm
Float
Switch
lever

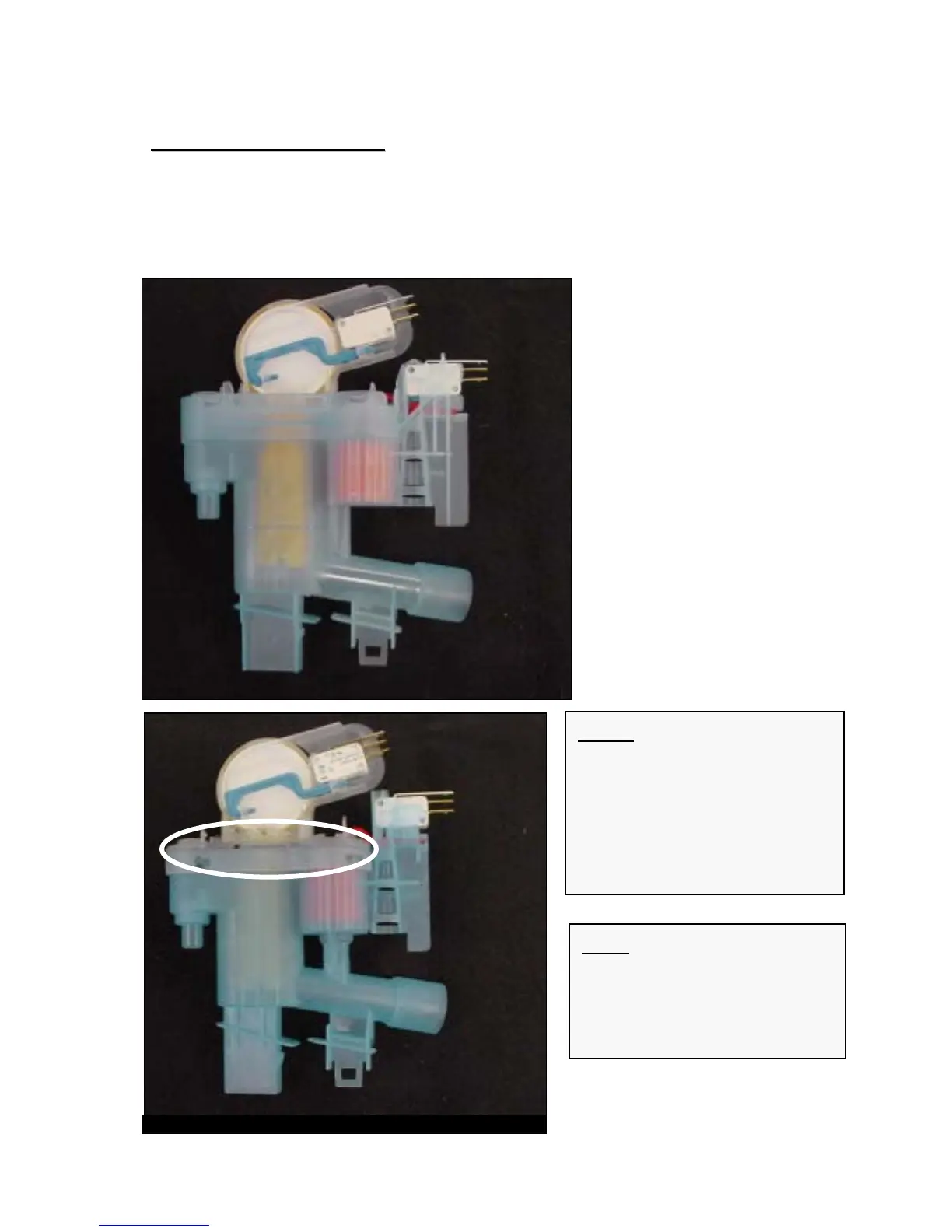

Newer water fill assembly without gasket
Older water fill assembly with gasket
NOTE: Older water fill
assemblies required a
gasket between the upper
and lower housings. Newer
ones do not require gaskets
and are a drop-in
replacement for older ones.
HINT: Floats should be
checked and bases should
be cleared of water &
debris whenever water fill
assemblies are worked on.
