Component Access/Replacement
Component Access/Replacement
Door Latches
Door Latches
–
–
Removal & Installation (1)
Removal & Installation (1)
Usually the only door latch repairs will be replacing
microswitches on fully integrated models (e.g. SHV, SHU
88/99).

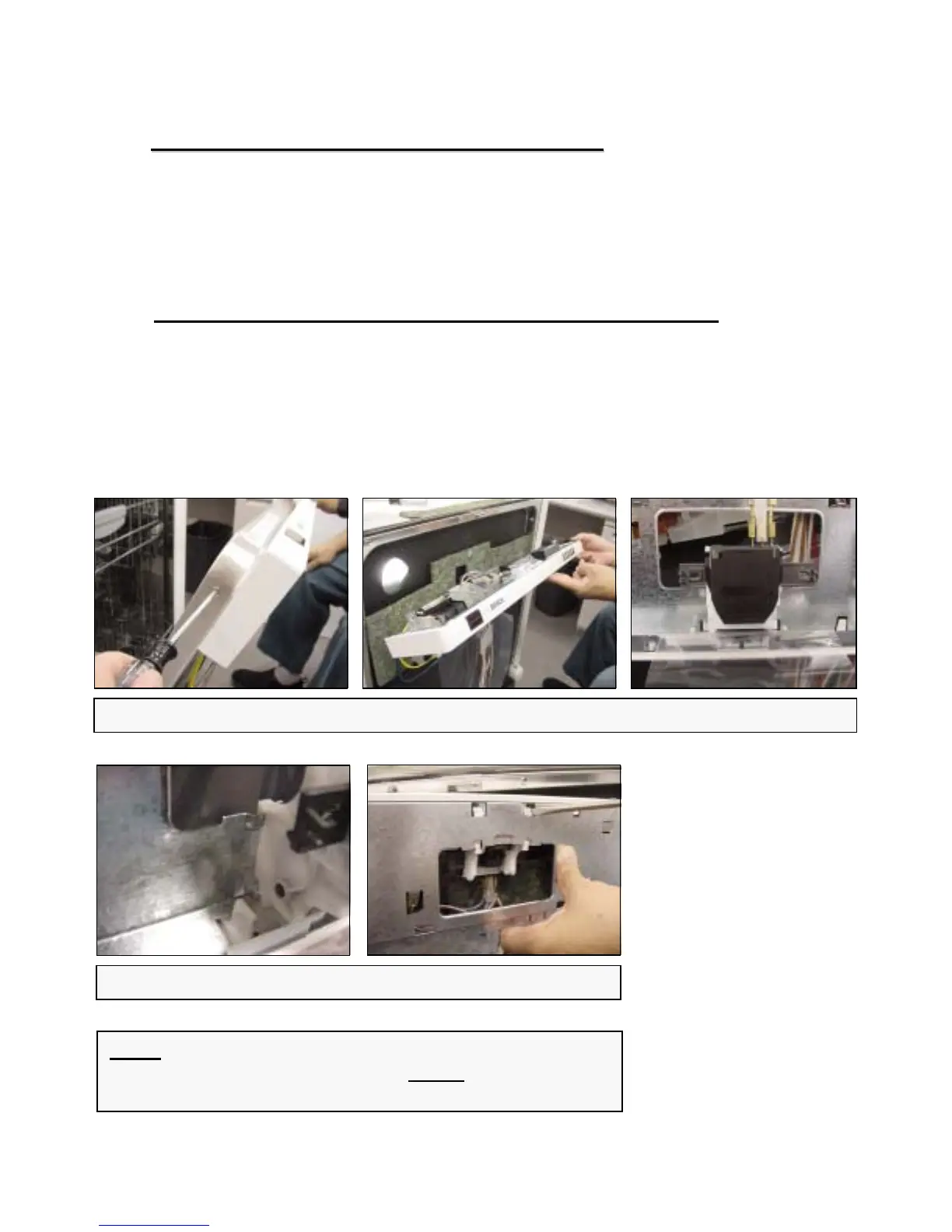

To disassemble door latches for integrated models:
Remove T-20 Torx fascia panel screws from inner door.
Lower fascia panel from door.
Locate door latch in console.
Bend out console metal tabs to allow latch removal.
Remove panel screws Lower fascia panel Door latch in console
Tabs (inner view) Bend out metal tabs
NOTE: Door latches for UC/14 & up models are different
than UC/06 - UC/12 models -- they cannot be interchanged.
Must replace strike plate & door latch together.
