Component Access/Replacement
Component Access/Replacement
Circulation Pumps
Circulation Pumps
-
-
Reassembly
Reassembly

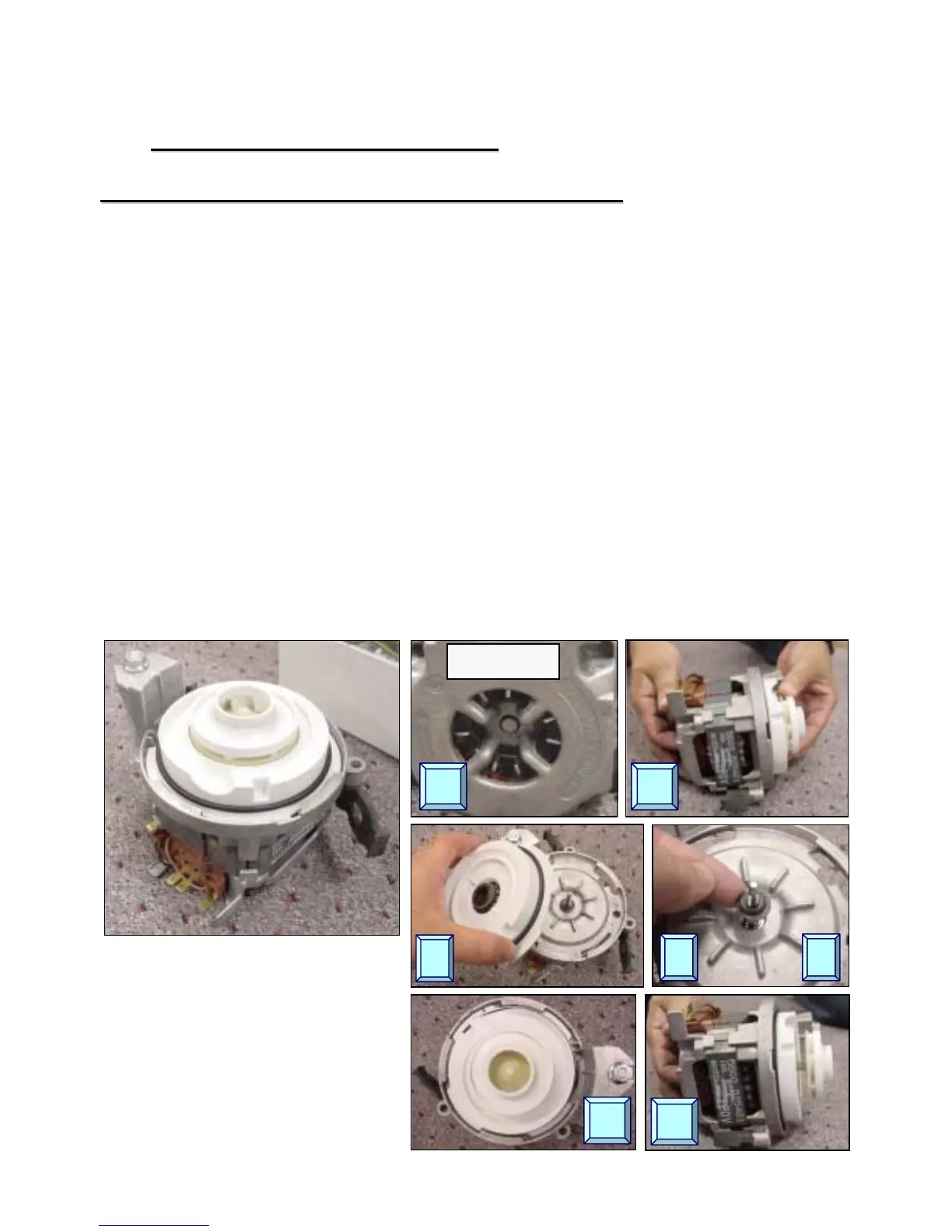

To remove & install impeller (using kit # 167085)
To remove & install impeller (using kit # 167085)
:
:
While holding motor fan so shaft won’t spin (1a), unscrew impeller
counterclockwise (1b).
Rotate pump housing counterclockwise until tabs clear, then lift
housing from motor (2).
Remove spring and O-ring from pump housing, then lift spacer up
from motor shaft (3).
Place replacement spacer onto motor shaft (4). Note larger end
goes onto shaft 1st.
Install replacement spring & O-ring onto pump housing, then line up
housing-motor tabs to screw pump housing onto motor (5a). Screw
replacement impeller onto motor shaft (5b).
Align motor to pump housing with capacitor @ 11:00 position to
facilitate reassembly.
1b
Motor fan
1a
3 4
2
5a
5b
