SHY56A/66C, SHU 995x & SHV 68 control modules are
different than other models and are removed differently.
VI.
VI.
Component Access/Replacement
Component Access/Replacement
Control Modules
Control Modules
-
-
Disassembly (2)
Disassembly (2)

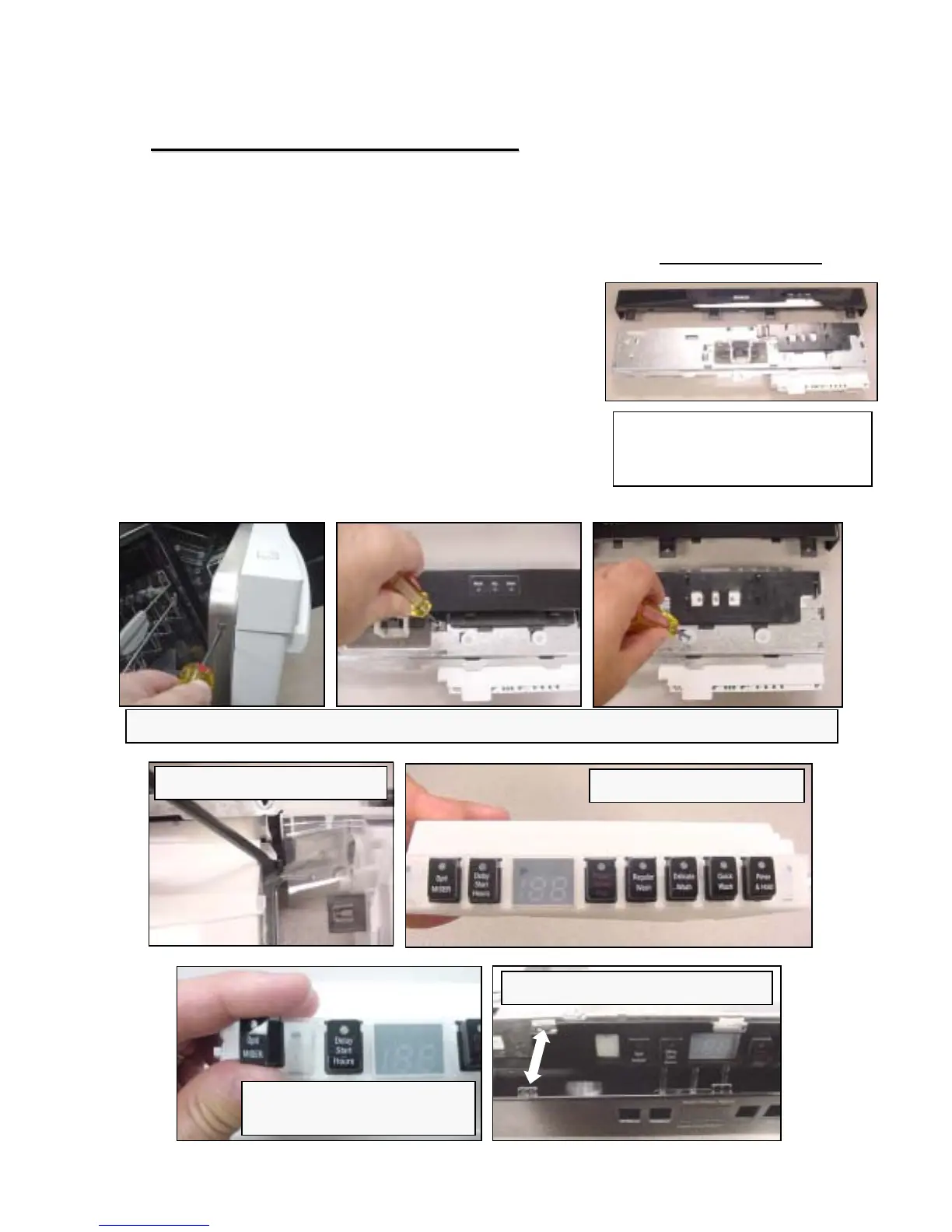

Remove fascia panel by removing six (6)T-20
Torx inner door screws.
Disconnect wire harnesses from module
after noting connector locations.
Remove fascia panel from console by
removing four (4) T-20 Torx screws.
Remove two (2) T-20 Torx screws holding
module to console.
Carefully pry back locking tabs on each front
corner of module, then remove module from
console. Remove button pad from module.
(SHU 995x shown)
These instructions apply to
SHY56A/66C, SHU 995x &
SHV 68 models.
Removing door screws Removing fascia screws Removing module screws
Prying back module tabs
Sliding module out
Align tabs when reassembling
Removing button pad --
buttons can come off pad
