Service Guide
■ Detailed Instruction (Step 5 For 3 Phase models)

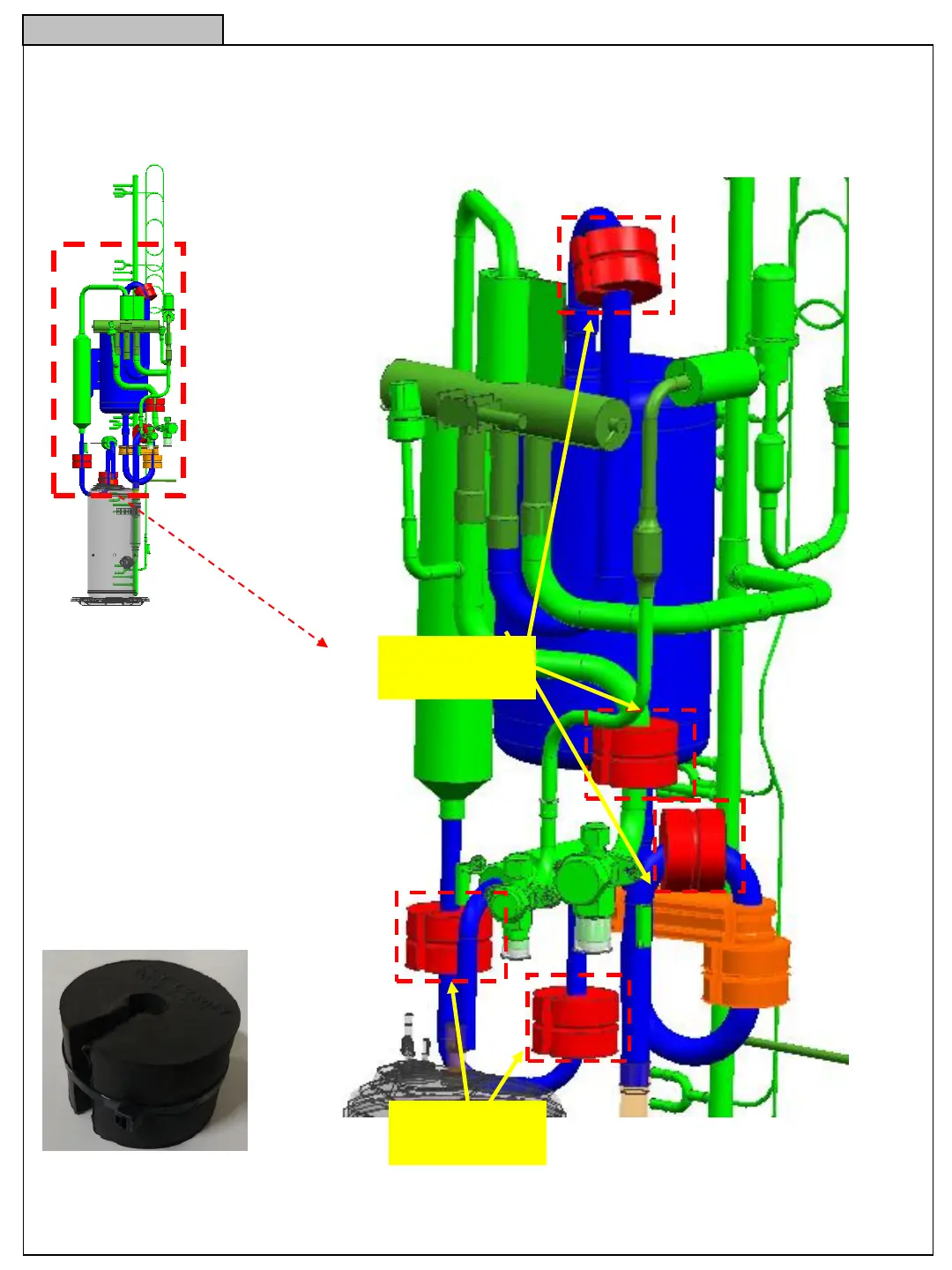

- Add 5 dampers provided in direction shown below. (Whole part)
- All dampers added for service have to be tied with a cable tie shown picture below.
Add
Damper (Ø 12.7)
Add
Damper (Ø 19.05)
Damper Structure for Service
Pipe Schematic
All Dampers have to be tied like picture.
