Bosch SPLIT ODU Series - Page 5

Service Guide
■ Detailed Instruction (Step 1)

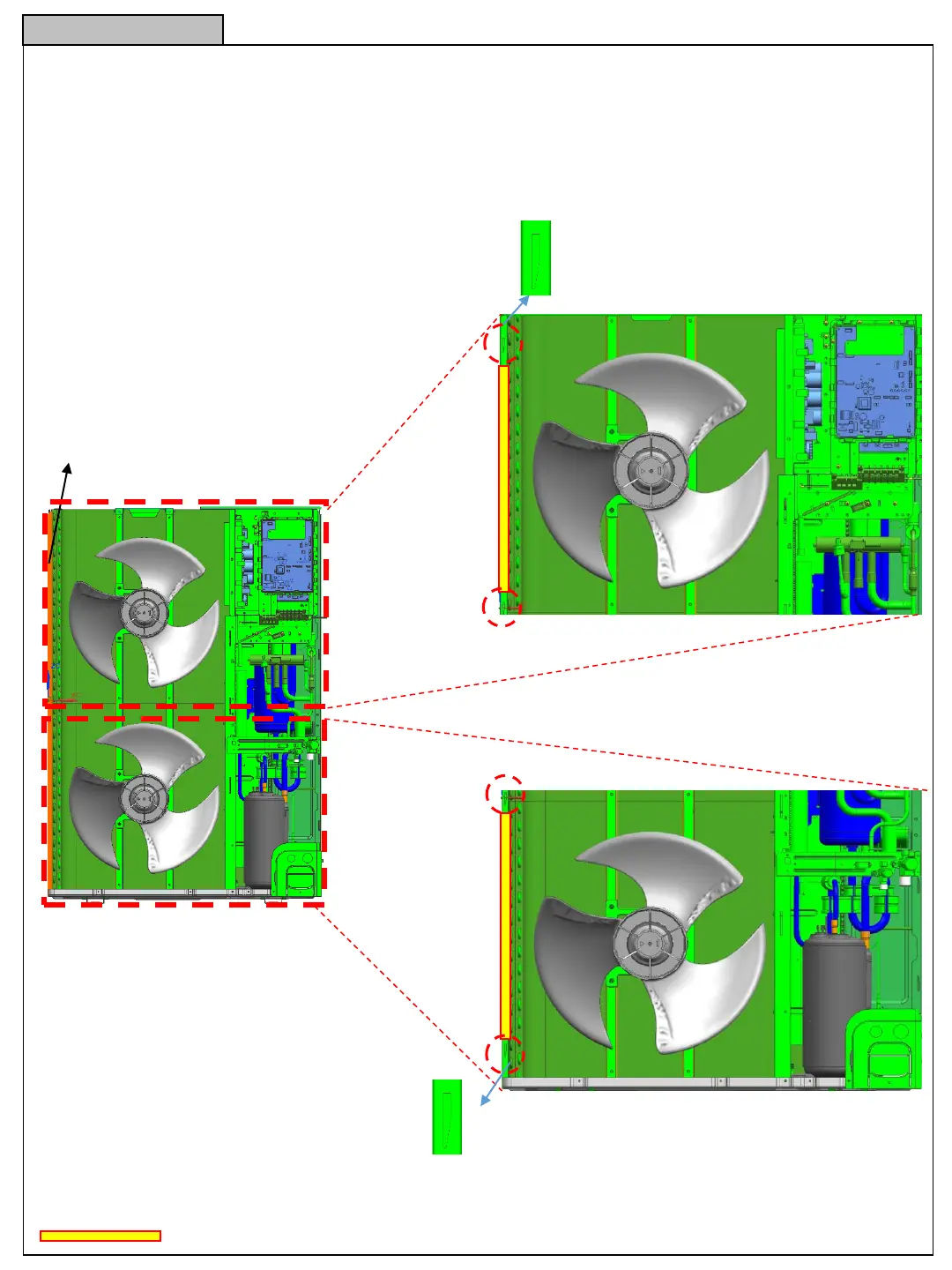

- Attach the Insulation to Attachment Surface of Side (left) panel shown below.
- There are 3 Hook structures in Side (left) panel, So each of Insulation has to been attached
between each Hook structure.
- If necessary, Attach more insulation to other side.
Attachment
Surface
: Black insulation,Foam (500 x 10 x 3 mm)
Hook Structure
Attachment location
Hook Structure
Hook Structure
Hook Structure
(5 of 25)
