Bosch SV012 - Wiring Diagrams for Specific Motors; 1-Phase X13 Motor Wiring Diagram

48 | Wiring Diagrams SV Heat PumpSeries
SV Heat Pump Series8 733 914 818 (2014?08) Subject to change without prior notice

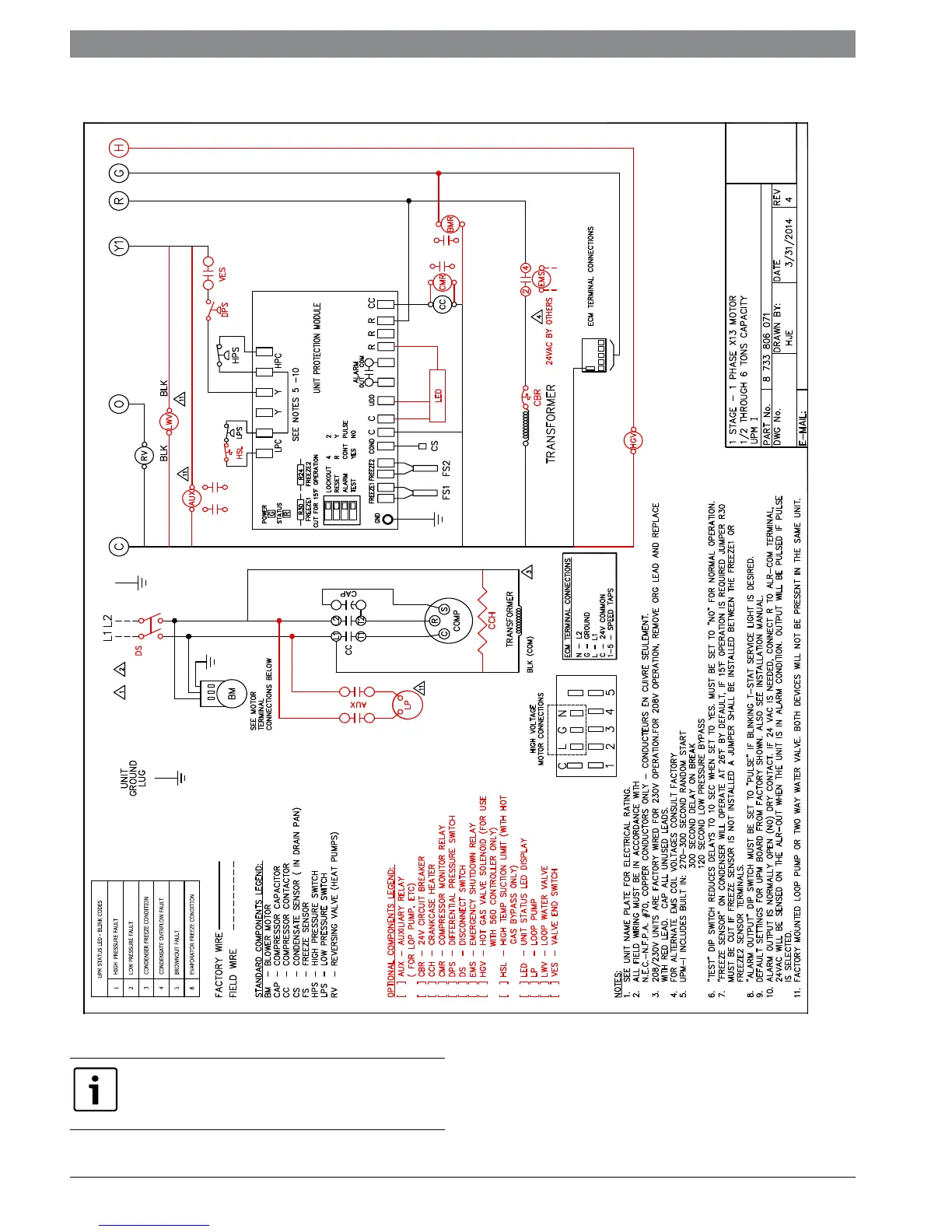

Figure # 17 1 Stage-1 Phase X13 Motor.
NOTE: FOR REFERENCE ONLY Actual unit
wiring may vary from this example. Always refer
to the wiring diagram attached to the unit.
