Bosch THERM 1000 O User Manual

6 720 818 788 (2015/11)
Instructions regarding the appliance | 7

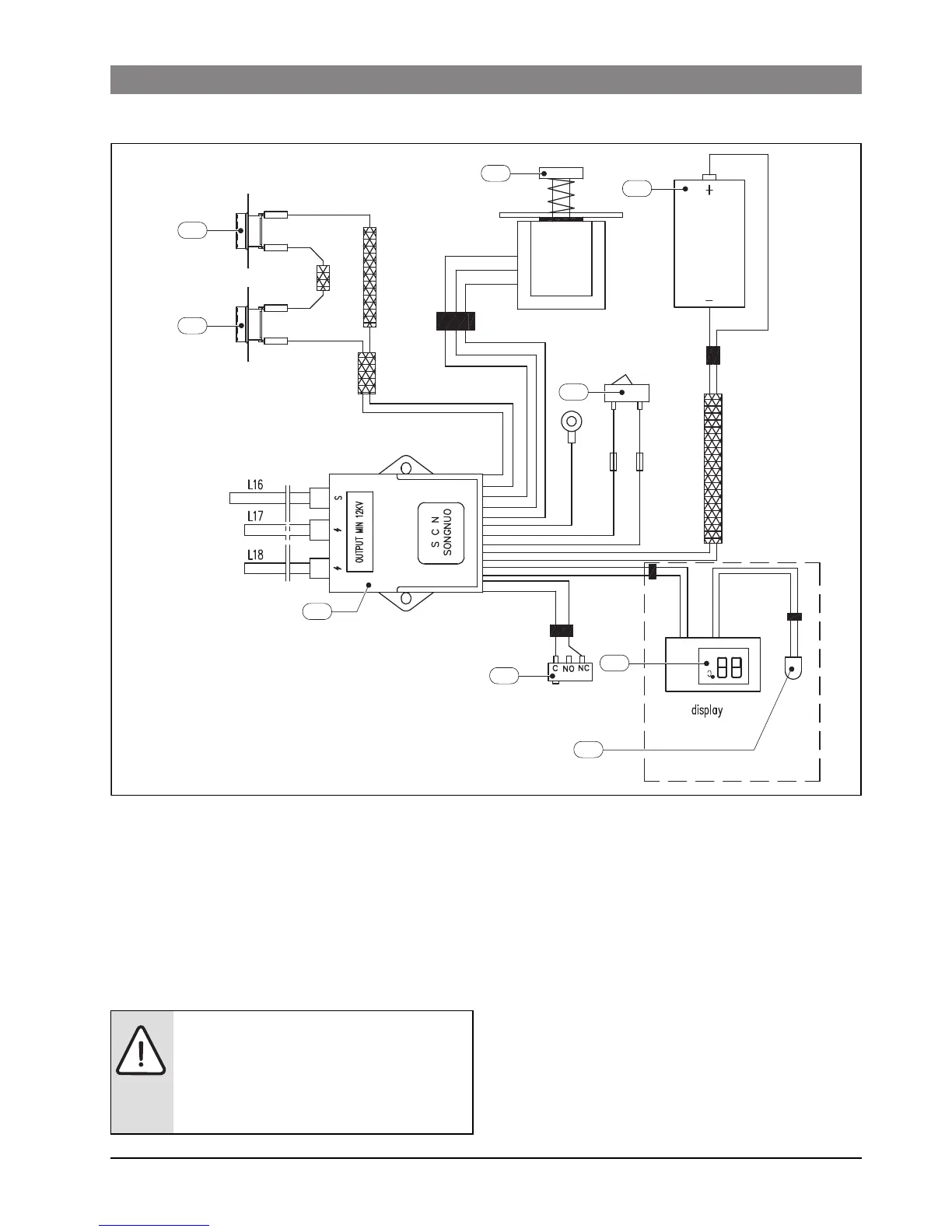

2.9 Electrical schema
Fig. 3
[1] Control device of the combustion gases
[2] Temperature limiter
[3] Ignition unit
[4] Micro switch
[5] Electro valve
[6] ON/OFF switch
[7] Batteries (2x 1.5V)
[8] Temperature Sensor (for WD model only)
[9] Temperature Display (for WD model only)
1
2
3
8
4
5
7
6
9
6720818788-04.1V
DANGER:
Burns!
Water temperature increase.
▶ Check the setting of the ignition flow after
the appliance's maintenance works.

Bosch THERM 1000 O Specifications

General

Gas Connection	1/2 inch
Water Connection	1/2 inch
Ignition Type	Electronic Ignition
Protection Class	IPX4
Material	Steel
Type	Tankless Water Heater
Fuel Type	Natural Gas
Maximum Flow Rate	10 L/min
