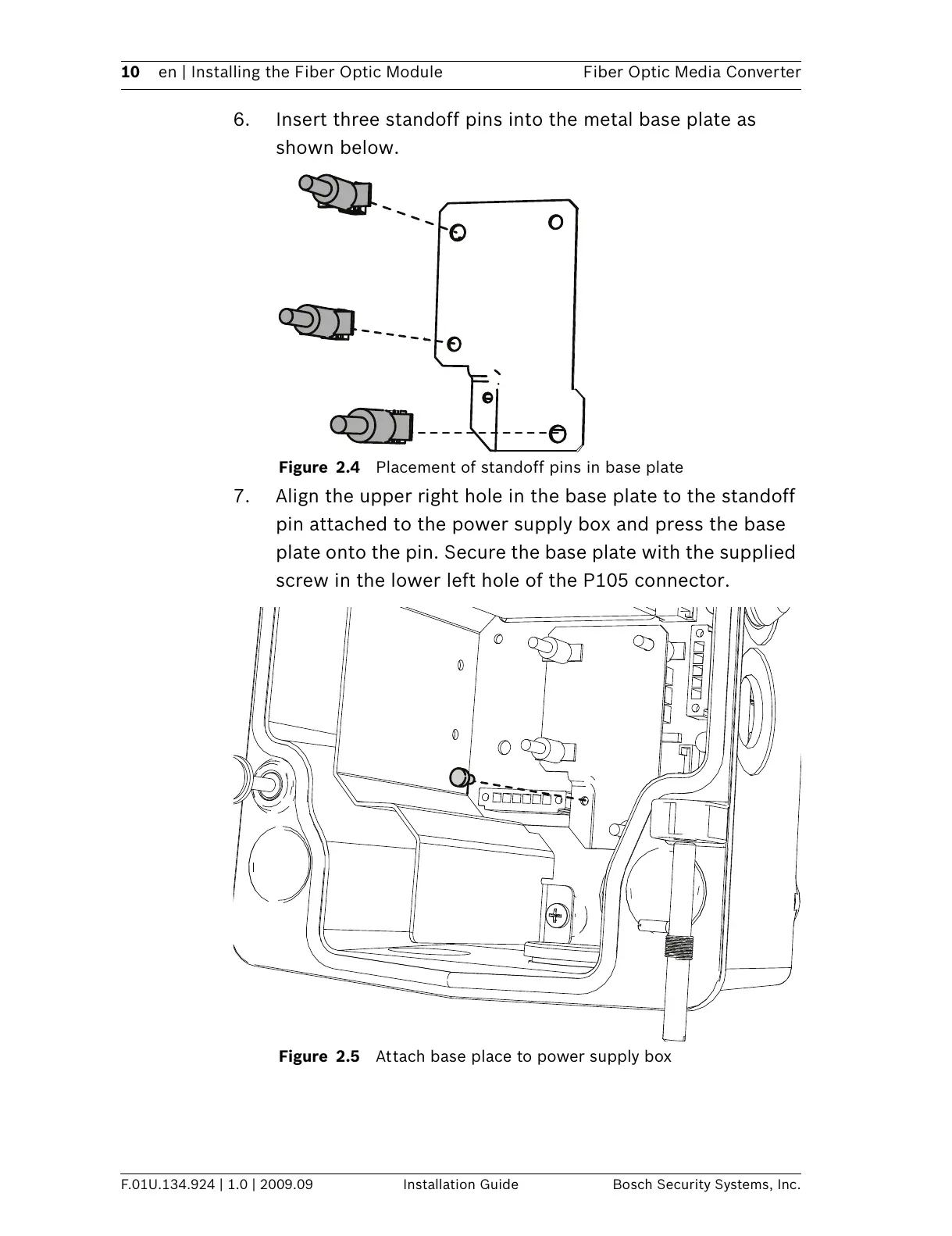

10 en | Installing the Fiber Optic Module Fiber Optic Media Converter
F.01U.134.924 | 1.0 | 2009.09 Installation Guide Bosch Security Systems, Inc.
6. Insert three standoff pins into the metal base plate as
shown below.
Figure 2.4 Placement of standoff pins in base plate
7. Align the upper right hole in the base plate to the standoff
pin attached to the power supply box and press the base
plate onto the pin. Secure the base plate with the supplied
screw in the lower left hole of the P105 connector.
Figure 2.5 Attach base place to power supply box
