To switch off the eBike system, press the on/off button (12) briey (<3s).
The battery charge indicator (13) and the assistance level LED (10) go
out. If no power is drawn from the eBike drive for about 10 minutes (e.g.
because the eBike is not moving) and no button is pressed on the on-
board computer or the control unit of the eBike, the eBike system will
switch off automatically.
Battery charge indicator
The battery charge indicator (13) displays the eBike battery’s state of
charge. The state of charge of the eBike battery can also be checked
on the LEDs of the battery itself. In the (13) display, each ice-blue bar
represents 20 % capacity and each white bar represents 10 % capacity.
The topmost bar shows the maximum capacity.
Example: Four ice-blue bars and one white bar are displayed. The state

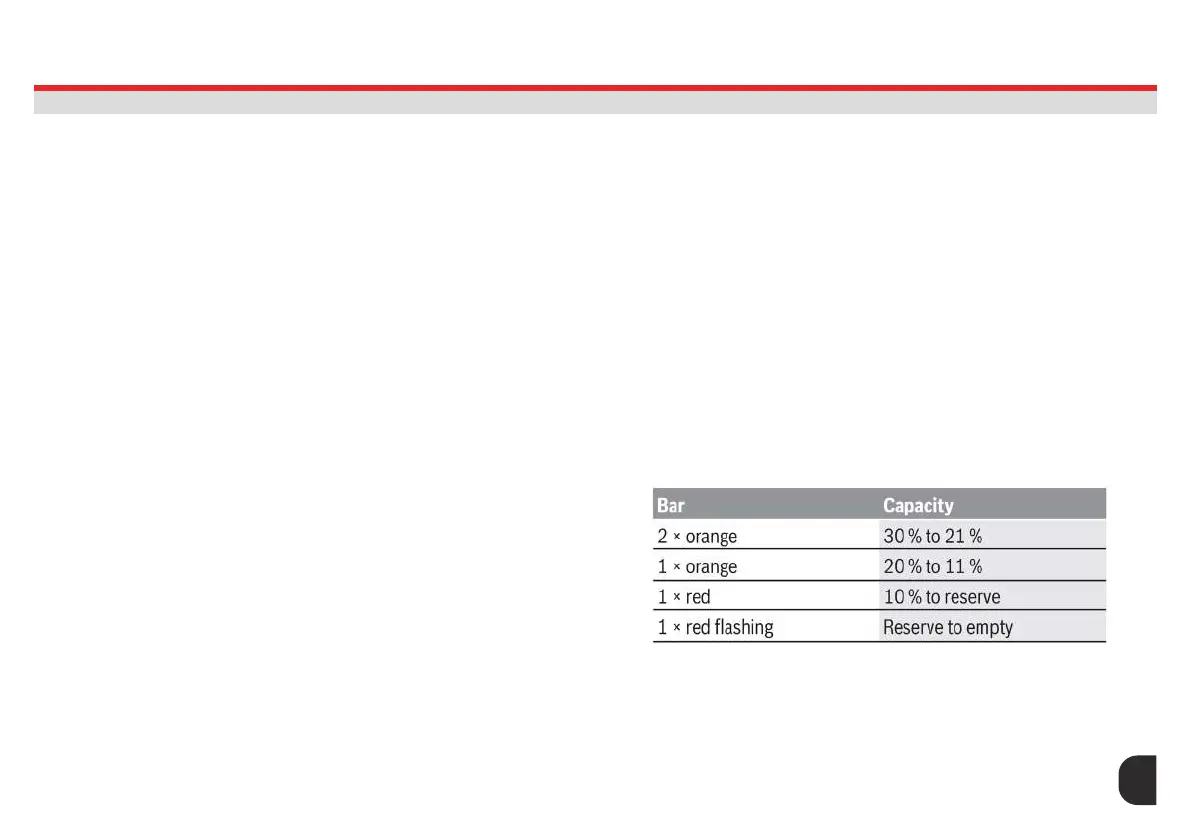

of charge is between 81 % and 90 %. If capacity is low, both of the lower
displays change colour:
Operation Requirements
The eBike system can only be activated when the following requirements are
met:
– A sufciently charged battery is inserted (see battery operating
instructions).
– The speed sensor is connected properly (see drive unit operating
instructions).
Operating unit power supply (System Controller)
If a sufciently charged eBike battery is inserted into the Bike and the eBike
system is switched on, then the operating unit battery is powered and
charged by the eBike battery. Please contact your bicycle retailer if the
operating unit battery is defective.
Operating unit (Mini Remote) power supply:
The Mini Remote operating unit is supplied with voltage by a CR1620 coin
cell.
Switching the eBike system on/off
To switch on the eBike system, briey press the on/off button (12). After the
starting animation, the state of charge of the battery is displayed in colour
with the battery charge indicator (13) and the set assistance level with the
(10) display. The eBike is ready to ride.
The display brightness is controlled by the ambient light sensor (11).
Therefore, do not cover the ambient light sensor (11). The drive is activated
as soon as you start pedalling (except at assistance level OFF). The motor
output depends on the settings of the assistance level.
As soon as you stop pedalling when in normal operation, or as soon as
you have reached a speed of 25/45 km/h, the eBike drive switches off the
assistance. The drive is automatically reactivated as soon you start pedalling
again and the speed is below 25/45 km/h.
If the eBike battery is being charged, the top most
bar on the battery charge indicator (13) ashes.
START UP ON/OFF
MINI REMOTE (BRC3100 | BCR3300)
21
