Seat Clamp:
To adjust the Whyte Seat Clamp, peel up the rubber Seat Gator (A) then
use an Allen key to undo the Seat Clamp Bolt (B). The seat post will
become free in the Seat-Tube (D) of the frame. Adjust the height of the
Seat-Post to suit the riders preference.
Please Note: Adjust your saddle height in accordance with the relevant
seat post manufacturers instructions. Pay attention to minimum insertion
heights clearly marked on the seat-post. To re-tighten the Whyte
Seat-Clamp, tighten the Seat Clamp Bolt (B) in a clockwise direction and
torque bolt to the recommended torque setting of 5-7Nm / 44-62 IN lbs.
Once tight, lower the rubber Seat Gator back into place (A). Ensure you
use carbon seat post paste to avoid seizing. Contact your Whyte retailer
for further advice.
CAUTION: Do no forcibly pull up or push down on a cable or
hydraulically operated dropper Seatpost without rst making
sure that the cable or hose is moving freely inside the whole
frame to facilitate the seat post adjustment.
CAUTION: Avoid over-tightening the seat clamp. In particular,
dropper seat posts that have moving internal components
may not work correctly if the seat clamp is over tightened. This
could lead to the seatpost’s function to be impaired, this could
result in a potential crash or injury.
CAUTION: When adjusting the saddle height you MUST obey
the minimum insertion depth requirement marked on the
Seatpost. If you have any doubts please consult your Whyte
retailer.
B
A
C
D

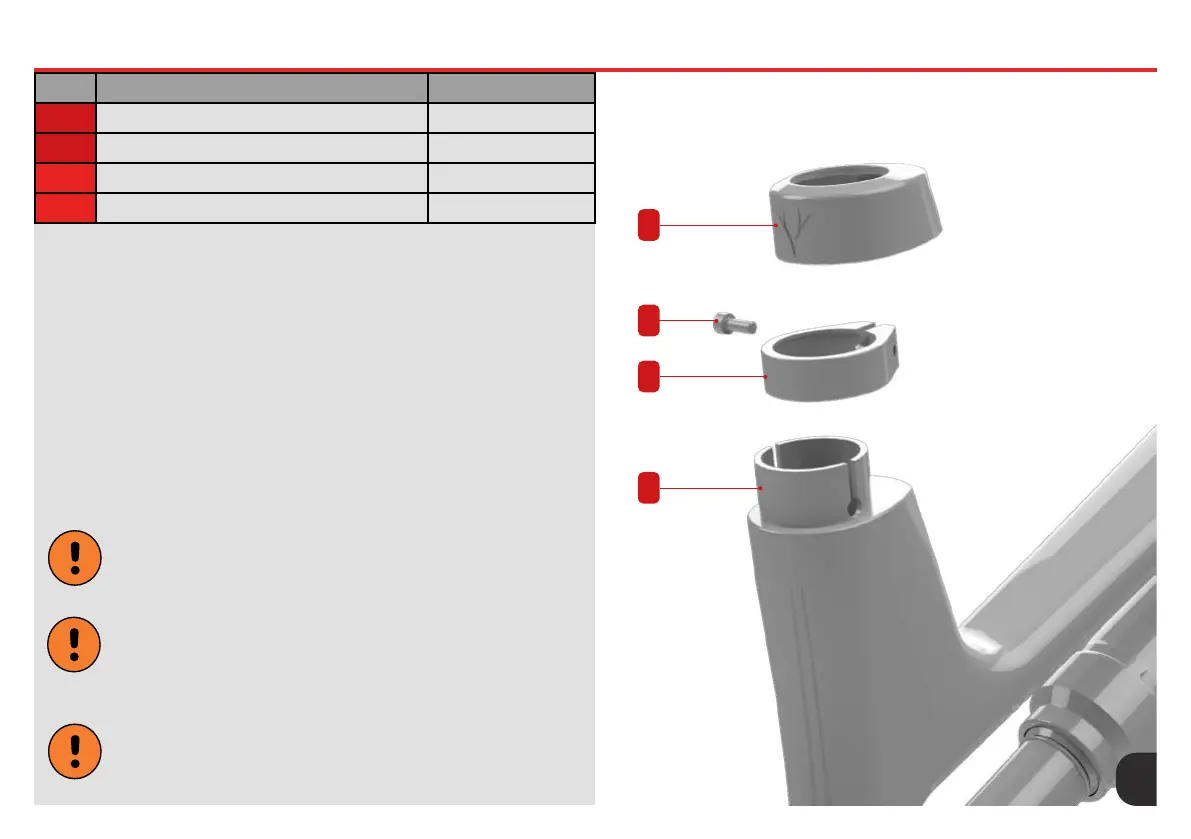

ITEM Part/Location Description Part Code
A Seat Gator WHYE-48
B Seat Clamp Bolt WHYE-48
C Seat Clamp WHYE-48
D Seat-Tube N/A
To Next Page
