07 CHARGING
7.4 Charge Port Location

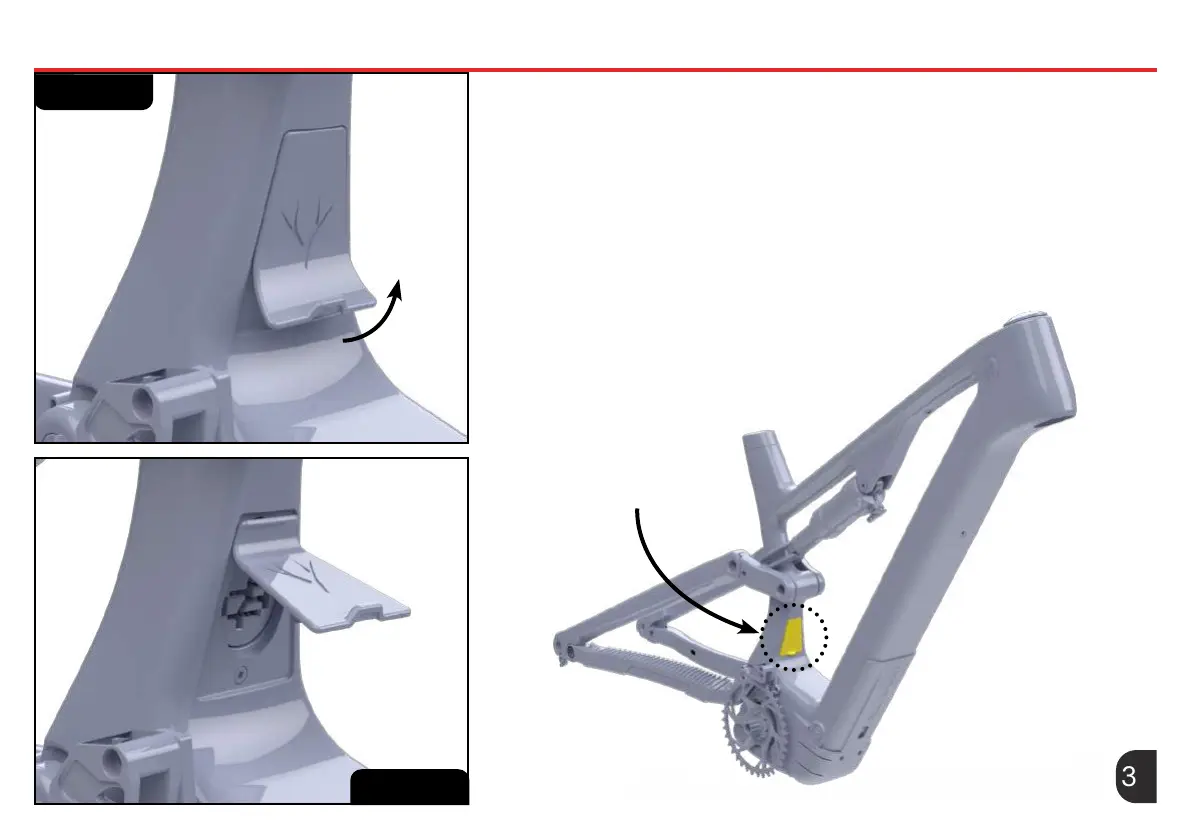

The E-Lyte’s charge port is situated on the inside of the seat tube. Please reference full
frame illustration below where the charge port location has been highlighted in yellow.
The E-Lyte’s charge port is covered by a rubber seal. To access your E-Lyte charge port,
whilst referencing ‘STEP 1’ use the nger pull tab situated at the bottom of the seal and
pull upwards.
Do not try to remove the rubber charge port cover, a retaining device has been used to
ensure the cover remains attached to the frame (see ‘STEP 2’). When the cover has been
released from the recess in the frame, access to the charge port is now achievable. After
charging your E-Lyte ensure the cover is re-inserted fully to prevent water or debris
getting into the charge port.
STEP 1
STEP 2
Charge Port Location
