STEP 7
STEP 8 STEP 9
48
13
13
11 14 15 16
1516

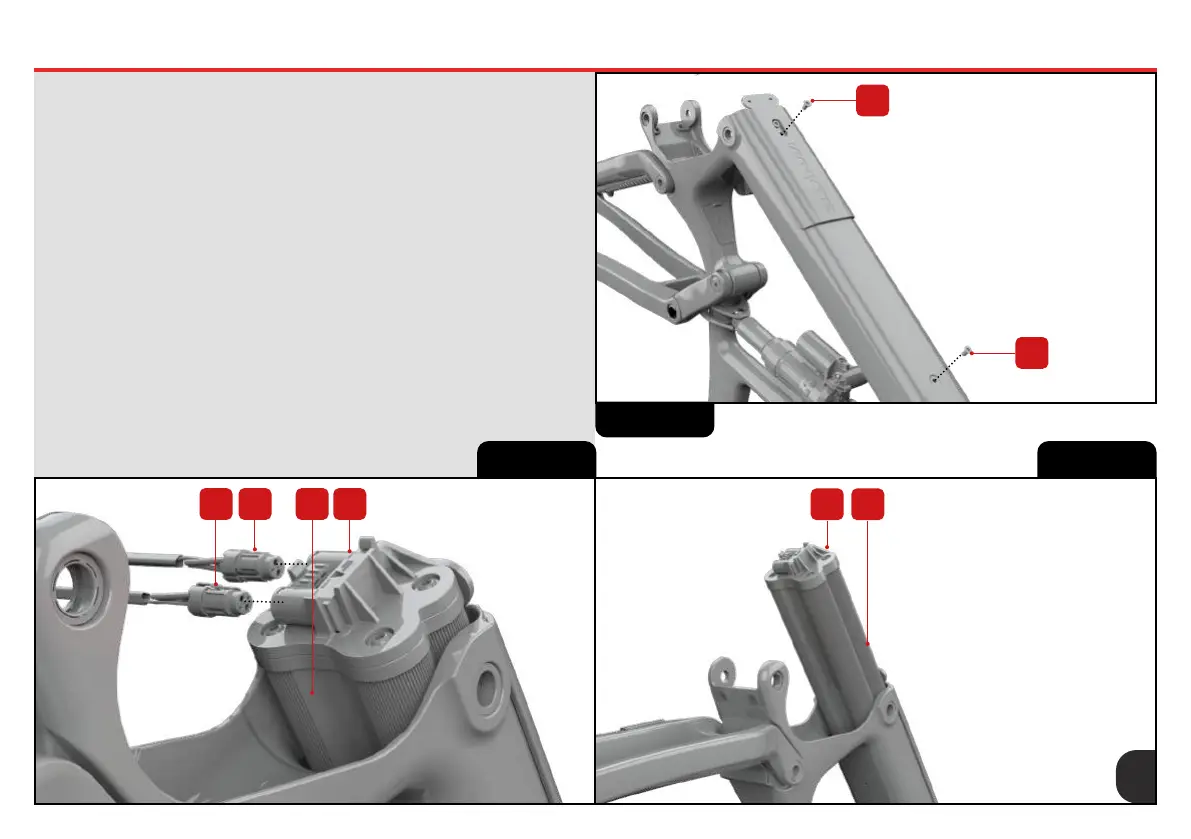

STEP 7) Using T25 Torx screwdriver remove the 2x M5 screws (13) from
the down tube. Once removed the Battery (15) will be loose. Take care
and support the battery to ensure it doesn’t fall under its own weight.
STEP 8) Slide the Battery (15) out of the frame to reveal the Battery
Adapter (16). Disconnect both the BCC & HMI cables (11,14).
STEP 9) Carefully remove the Battery (15) from the down-tube. Take care
when handling the Battery to avoid dropping or damaging the Battery.
INSTALLING THE BATTERY
To install the Battery back into the frame, follow the reverse method of
these instructions used to remove the Battery. Pay attention to torque
settings for specied xings and manufacturers recommendations.
Ensure the cable routing is correct with no kinks to the cables. If you have
any concerns please contact your authorised Whyte retailer. Ensure the
Motor Bolts (10.1 & 10.2) are Torqued to 30Nm and the Lock Ring (5) to
35Nm.
09 BATTERY POWER 9.2 Battery Removal
To Next Page
