STEP 4
STEP 6
8
8
47
STEP 5
11
8
12

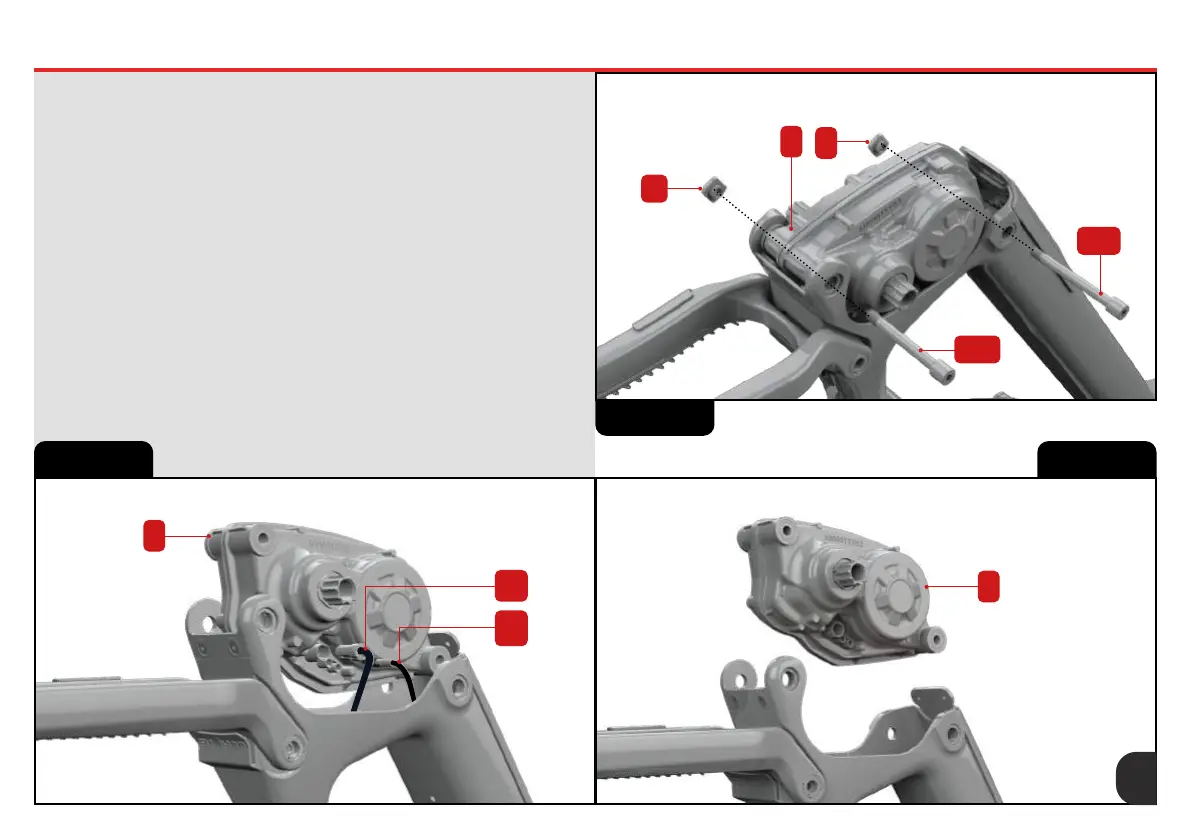

STEP 4) Remove the two Motor Bolts (10.1 & 10.2) from the non-drive
side using a TP40 Torx PLUS screwdriver. Take care not to lose the
corresponding Motor Nuts (9). (The Motor may become loose once the
Motor Bolts (11) have been pulled from the frame. Ensure the Motor (8) is
supported).
STEP 5) Slide the Motor (8) out of the frame very carefully. Disconnect
the HMI TT Control Cable (12) and the BCC Cable (11) from the motor
(Take great care when handling the motor to avoid dropping or damage).
STEP 6) Remove the Motor and store in a secure and dry location.
09 BATTERY POWER 9.2 Battery Removal
9
10.1
9
10.2
