STEP 3
3
4
8
46
STEP 1
STEP 2
5 6 3 4
BOSCH Lock
Ring Tool
Crank Removal
Remove both crank arms following the manufacturers
recommended method.
SRAM
Hope
Samox

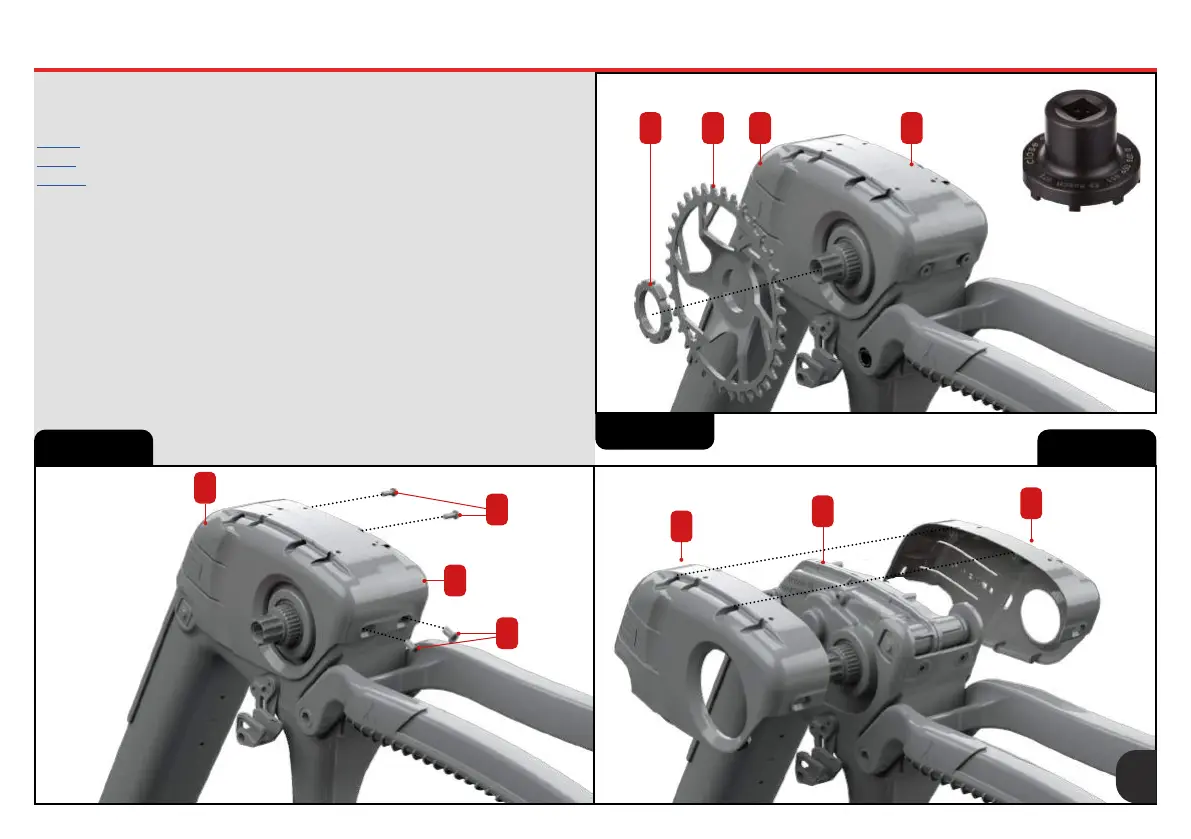

STEP 1) Remove the Bosch Lock Ring (5) using an ofcial Bosch lock ring
tool. (It is necessary to keep the chain and rear wheel in place to allow you
to loosen the lockring. If the wheel has been removed a chain whip may
provide a suitable alternative). Remove the Chain Ring (6) which is free.
STEP 2) Remove 2x M5 Screws (2) from the rear of the motor covers
using a T25 Torx screwdriver. Next remove from the Non-Drive Side Motor
Cover (3) 2x M4 screws (7) using a T20 Torx screwdriver (take care not to
damage threads).
STEP 3) Pull apart both Motor Covers (3&4) to reveal the Motor (8).
09 BATTERY POWER 9.2 Battery Removal
3
7
2
4
