Tools required to remove skid plate:
• T25 Torx Screwdriver
Skid Plate Removal

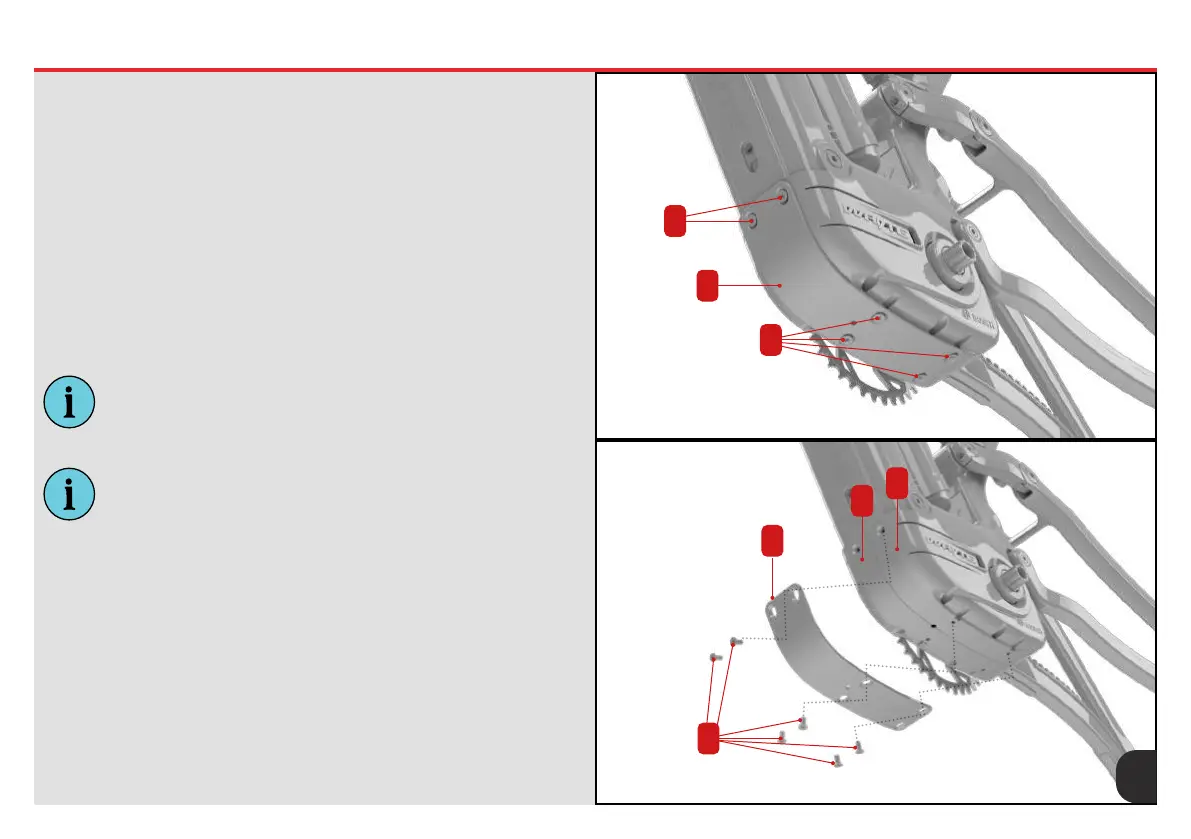

To free the motor covers (3,4) you must rst remove the Skid Plate (1).
Please note that not all bike models may be tted with a skid plate.
The Skid Plate (1) is mounted to the main frame using six screws (2).
Using a T25 Torx screwdriver remove the six screws (2). Once removed,
the Skid Plate (1) will come away from the Motor Covers (4,5).
Skid Plate Install
Ensure the holes in the mainframe, motor covers, and skid plate all align.
Then insert the 6x screws (2) and tighten to a recommended torque
setting of 4-6Nm / 44-62 IN lbs.
3
4
INFO: Many bolts will feature a coloured thread-lock patch
applied to secure xing under torque. Repeated removal and
installation may remove the thread-lock over time. In this
scenario ensure the thread is cleaned removing dirt and grease.
Add new liquid thread-lock during installation.
INFO: Your E-lyte may not feature a Skid Plate. If this is the case,
please skip these steps in the battery removal process. If you
wish to purchase a Skid Plate for your E-Lyte please contact
your Whyte retailer or visit the website.
09 BATTERY POWER 9.2 Battery Removal
1
2
1
2
2
To Next Page
