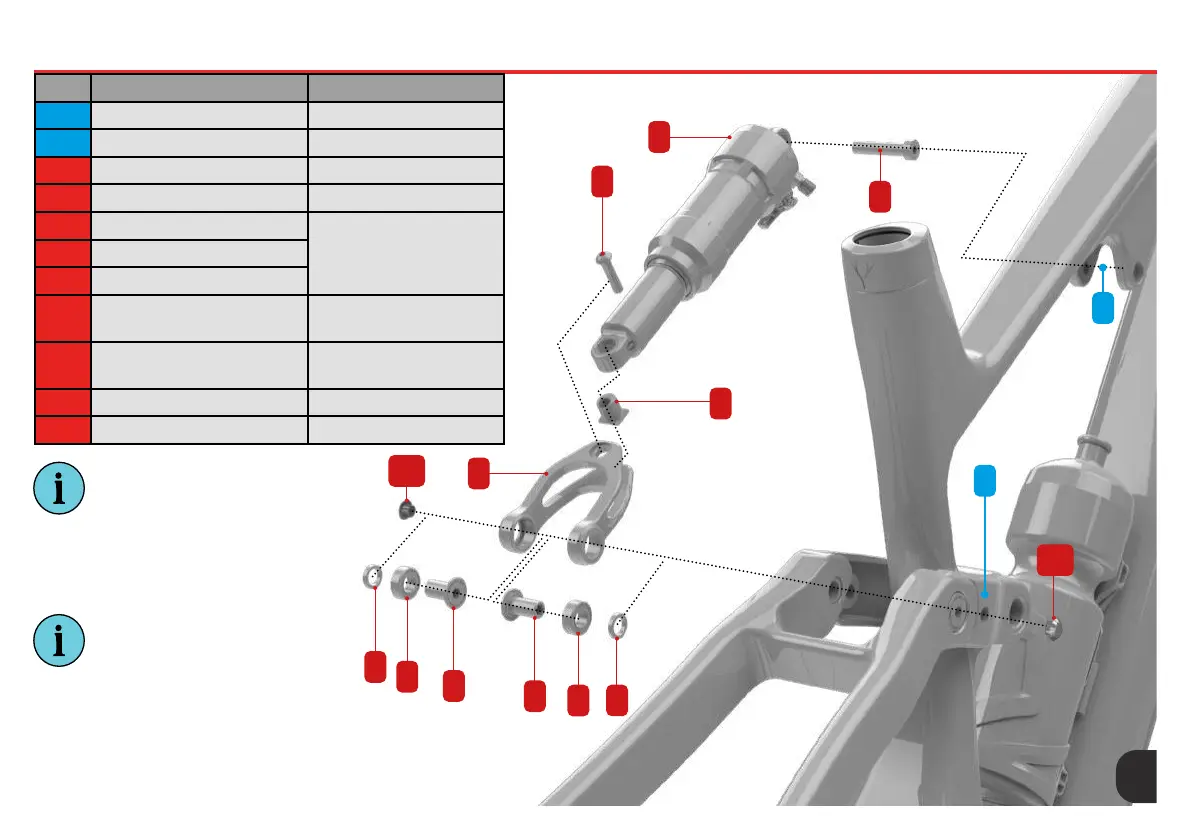

12 MAINTENANCE & SERVICING 12.2 Rear Shock
61
A
B
C
D
E
F
G
H
H
G
F
2
1
Tools Required
5mm Allen Key - ball ended
6mm Allen Key - ball ended
Torque Meter Wrench (Optional)
INFO: Pay attention to the torque
settings stated on the external
face of the Pivot Screw (H).
Whyte bikes advices you to
use a Torque wrench to ensure
the correct amount of force is
applied to critical xings.
INFO: Many bolts will feature
a coloured thread-lock patch
applied to secure the xings
under torque. Repeated removal
and installation may remove
the thread-lock over time. In
this scenario ensure the thread
is cleaned, removing dirt and
grease. Add new liquid thread-
lock during installation.
ITEM Part/Location Description Spare Part Kit Code
1 Top-Tube Shock Mount N/A
2 Rocker Link N/A
A M8x40 Cap Head Bolt WHYE-46
B Shock Model Specic
C M6 Socket Head Screw
EL-SHOCKEX60/64
D Bushing
E Shape-It Link (shock extender)
F 3mm Shield Washer
(O.D 14mm I.D 10mm)
WHYE-52
G 7mm Bearing
(O.D 19mm I.D 10mm)
3800 Double Row
H Pivot Screw (M10 x 20mm) WHYE-52
AA Rocker Link Plug WHYE-40
AA
AA
