12 MAINTENANCE & SERVICING 12.4 Chainstay
64
V
4
P
P
N
N
T
U
W
X

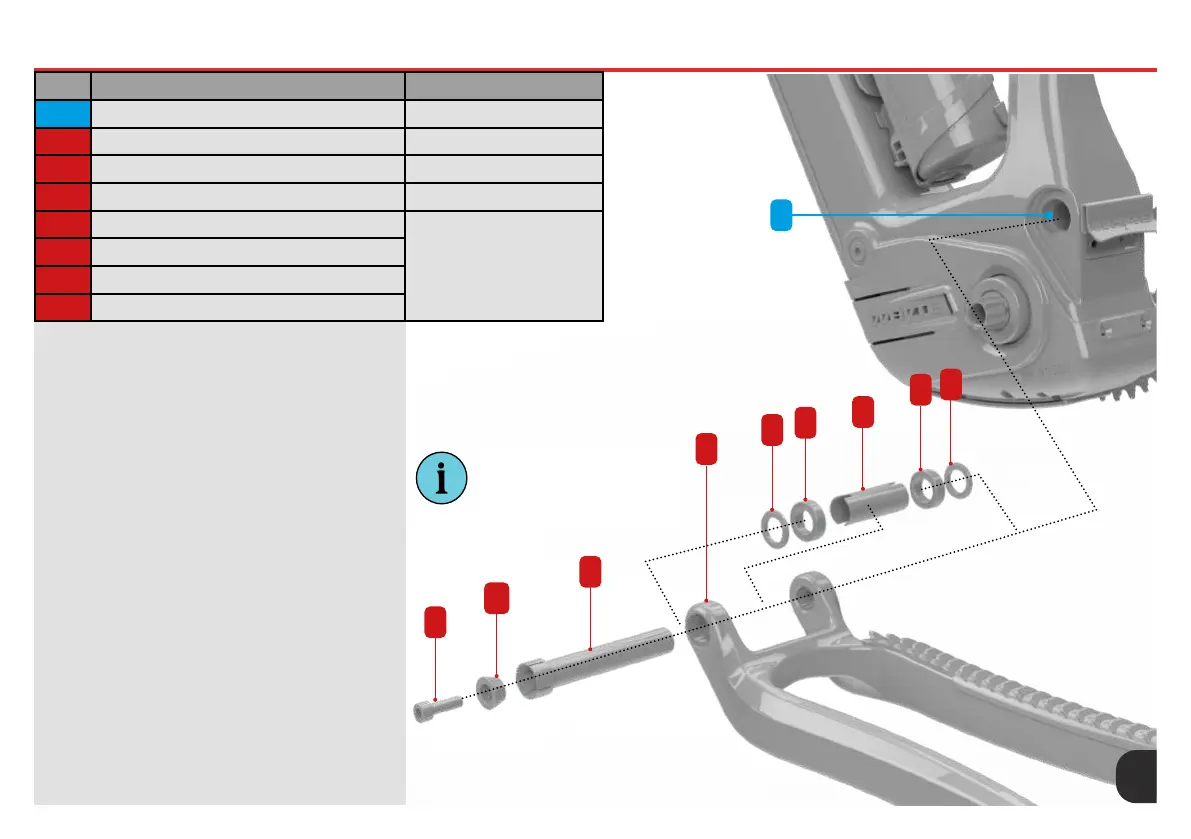

Chain-Stay & Bearing Removal
Using the 5mm Allen Key loosen the M6 Cap
Screw (X) from the Collet Pin (V). The expanding
Collet Insert (W) should no longer be applying
force to the Collet Pin (V). Using the 6mm Allen
Key, unscrew from the opposite side and remove
the Collet Pin (V). The expanding collet Insert
(W), Collet Pin (V), and Collet Insert (X) may now
be completely removed as one. Note: this must
be extracted from the Non-Drive Side of the
Pivot Pin.
The Chainstay (T) may now be removed from the
Main Pivot (4). Be careful to retain the two shield
washers (N) as these xings will be loose and
required for re-assembly.
To remove the bearings (P), use a puller tool to
extract the bearings (P) from both sides of the
Main Pivot (4). Align the removal tool carefully
with the slots in the Collet Sleeve (U).
Tools Required
• 5mm AF Allen Key - ball ended
• 6mm AF Allen Key - ball ended
• Bearing Puller Tool
• Torque Meter Wrench (Optional)
INFO: Pay attention to the
torque settings stated on
the external face of the
Pivot Screw
ITEM Part/Location Description Spare Part Kit Code
4 Main Pivot N/A
N 2.5mm Shield Washer (O.D 23mm I.D 15mm) WHYE-44
P 7mm Bearing (O.D 24mm I.D 15mm) 3802V2RD
T Chain-Stay N/A
U Collet Sleeve
WHYE-44
V Collet Pin
W Collet Insert
X Collet Insert screw M6x20
To Next Page
