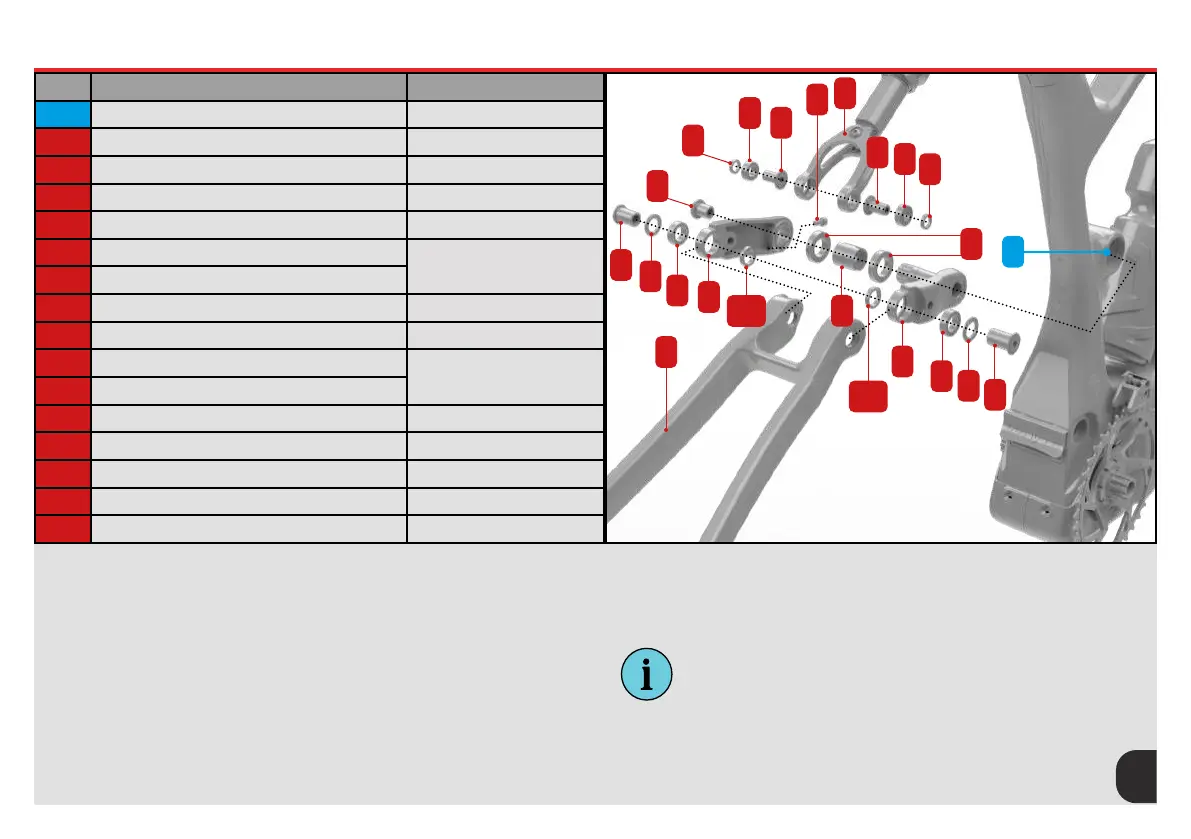

12 MAINTENANCE & SERVICING 12.3 Seat Stay Rocker Link
63
3
H
G
F
M
N
J
O
P
I
L
R
E
N
P
S
K
M
H
G
F
Tools Required
• 5mm Allen Key - ball ended
• 6mm Allen Key - ball ended
• Torque Meter Wrench (Optional)
Start by using the 6mm Allen Key, unscrew and remove the two M15 Pivot
Screws (M). This will release the Seat-stay (S) from the Link (O,R). All
bearings (G,K,P) have been press t and should remain retained within the
frame and rocker link. Be careful to retain all the washers (F,Q2) and shield
washers (N) as these xings will come loose. Next, loosen the Rocker Pinch
Bolt (I), removal is not required. Using the 6mm Allen Key, unscrew and
remove the M15 Pivot Screw (J) at the front of the Link (3). Removal of the
M15 Pivot screw (J) releases the two halves of the Rock Link (O.R) allowing
the seperation from the frame for maintenance (prior disassembly of the
rear shock is required (Page 61-62))
INFO: Pay attention to the torque settings stated on the
external face of the Pivot Screws.
Q2
Q2
ITEM Part/Location Description Spare Part Kit Code
3 Link Pivot N/A
E Shape-It Link EL-SHOCKEX60/64
F 3mm Shield Washer (O.D 14mm I.D 10mm) WHYE-52
G 7mm Bearing (O.D 19mm I.D 10mm) 3800 Double Row
H Pivot Screw (M10 x 20mm) WHYE-52
I M5x16mm Rocker Pinch Bolt
EL-LINK
J Pivot Screw (M15 x 19.5mm)
K 7mm Bearing (O.D 32mm I.D 20mm) 6804V
L Rocker Sleeve EL-LINK
M Pivot Screw (M15 x 25.5mm)
WHYE-42
N 2.5mm Shield Washer (O.D 23mm I.D 15mm)
O Rocker Link Non-DS EL-LINK
P 7mm Bearing (O.D 24mm I.D 15mm) 3802V2RD
Q2 4mm Washer (O.D 20mm I.D 15mm) WHYE-42
R Rocker Link DS EL-LINK
S Seatstay N/A
