12 MAINTENANCE & SERVICING 12.7 Chain Guide Removal/Install
67
D
E
D
E
Tools required to Remove the Top-Tube Controller:
• T25 Torx Screw Driver
INFO: Not all E-Lyte models come with a Chain Guide
(D). All E-Lyte models can be equipped with Chain
Guides (D) if required. Please get in contact with
your Whyte retailer who will able to help or visit the
online Whyte shop to purchase your Whyte Chain
Guide (D). Link: https://whytebikes.com/collections/
parts-accessories

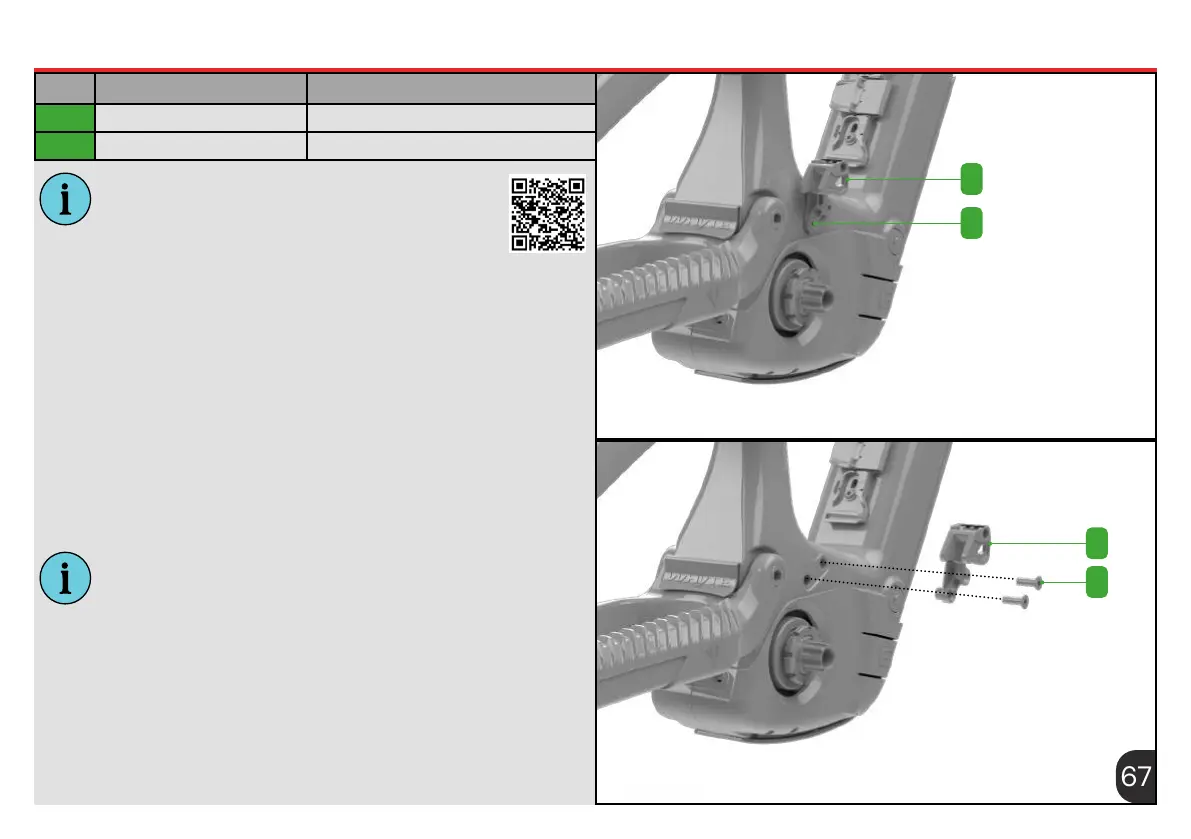

Chain Guide Removal/Install
To gain access to the Screws (E) that secure the Chain Guide (D), the
chain ring may need to be removed for access depending on size. To
remove the chain ring please refer to the ‘Battery Removal’ section of this
manual.
When you have access to the two screws (E), use a T25 Torx screwdriver
to remove the screws from the frame. This will free the Chain Guide (D)
from the frame. To install the Chain Guide (D) reverse the process and
tighten Screws (E) to a recommended torque setting of 4-6Nm / 44-62
IN lbs. Be careful to avoid over tightening as this may damage the paint
INFO: Many bolts will feature a coloured thread-lock patch
applied to secure the xing under torque. Repeated removal
and installation may remove the thread-lock over time. In this
scenario ensure the thread is cleaned to remove dirt and grease.
Add new liquid thread-lock during installation.
ITEM Part/Location Description Spare Part Kit Code
D Chain Guide WHYE-53
E M5 x 16 Screw WHYE-38
