Pre-Installation
17
Worcester 2000 – 6 721 814 551 (2019/09)

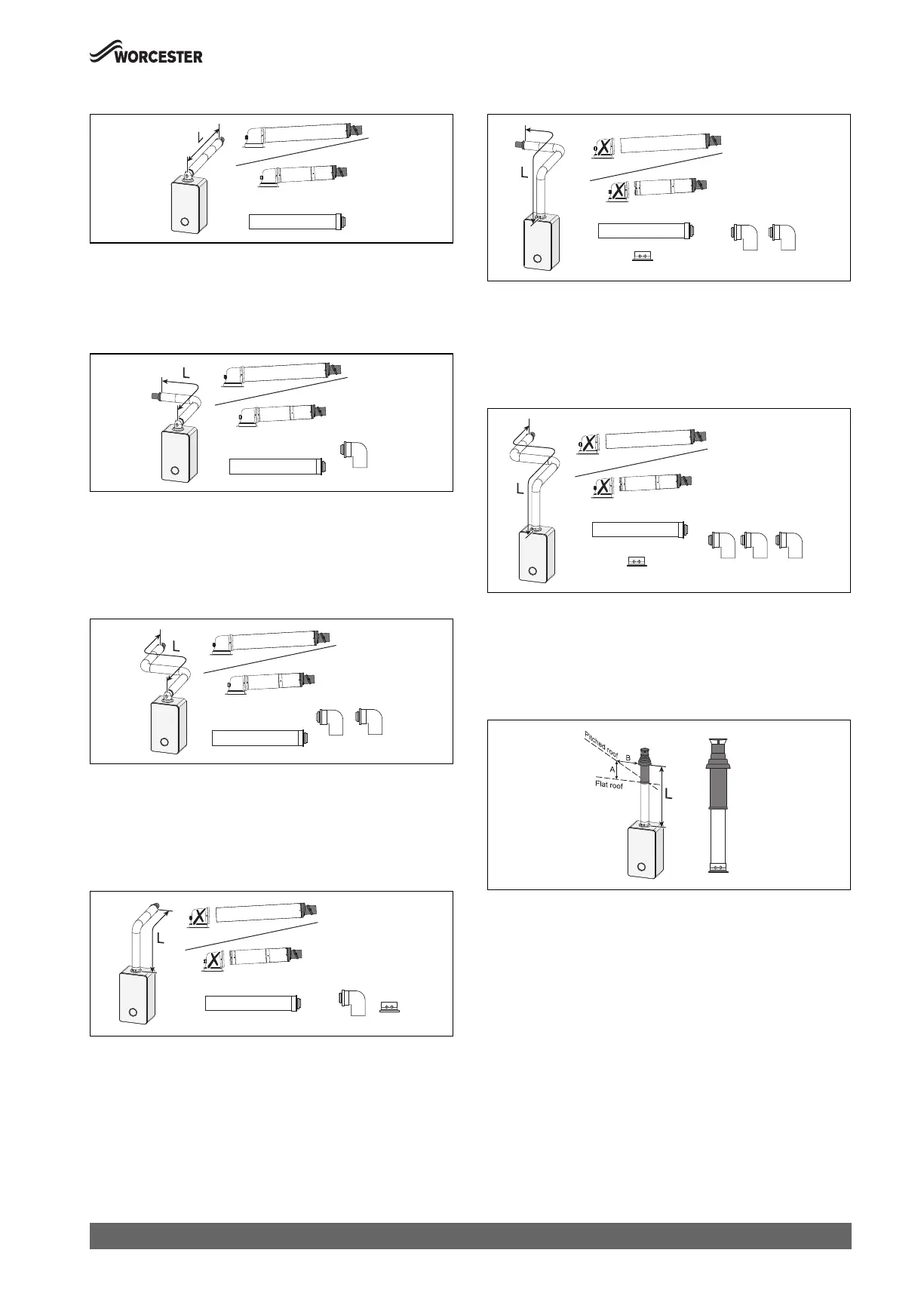

Extended horizontal flue
Fig. 15 Horizontal flue option
• Flue length [L] (adaptor bend included in length calculation)
– Maximum flue length as stated in "Horizontal maximum flue
lengths".
Horizontal flue with additional 90° elbow
Fig. 16 Horizontal flue option
• Flue length [L] (adaptor bend included in length calculation)
– Maximum flue length as stated in "Horizontal maximum flue
lengths" minus the 90° bend equivalent straight flue length as
stated in Table 13 "Effective length of bends".
Horizontal flue with additional 90° elbows
Fig. 17 Horizontal flue option
• Flue length [L] (adaptor bend included in length calculation)
– Maximum flue length as stated in "Horizontal maximum flue
lengths" minus 2 x 90° bends equivalent straight flue length as
stated in Table 13 "Effective length of bends".
High level horizontal flue
Fig. 18 Horizontal flue option
• Flue length [L] (initial bend included in length calculation)
– Maximum flue length as stated in "Horizontal maximum flue
lengths".
High level horizontal flue with additional 90° elbow
Fig. 19 Horizontal flue option
• Flue length [L] (initial bend included in length calculation)
– Maximum flue length as stated in "Horizontal maximum flue
lengths" minus the 90° bend equivalent straight flue length as
stated in Table 13 "Effective length of bends".
High level horizontal flue with additional 90° elbows
Fig. 20 Horizontal flue option
• Flue length [L] (initial bend included in length calculation)
– Maximum flue length as stated in "Horizontal maximum flue
lengths" minus 2 x 90° bends equivalent straight flue length as
stated in Table 13 "Effective length of bends".
Vertical balanced flue assembly
Fig. 21 Vertical flue option
• Flue length [L]
– Maximum flue length as stated in "Vertical maximum flue
lengths".
0010015193-001
0010015194-001
0010015195-001
0010015196-001
0010015197-001
0010015198-001
0010015199-001
A
= 300 mm
B = 500 mm
