Bosch Worcester GC2000iW 25 C NG - Removing the Pump; Removing the Automatic Air Vent Valve; 10.10 Removing the Motor of the Diverter Valve

Replacement parts
61
Worcester 2000 – 6 721 814 551 (2019/09)
10.8 Removing the pump
▶ Unplug the electrical plug [5].
▶ Disconnect nut connection [1] between pump and heatcell.
▶ Remove clip [3] between diverter valve manifold and pump
assembly.
▶ Remove 2 x T20 (Torx) screws [4] from the bottom plate of the
appliance.
▶ Remove pump assembly [2].

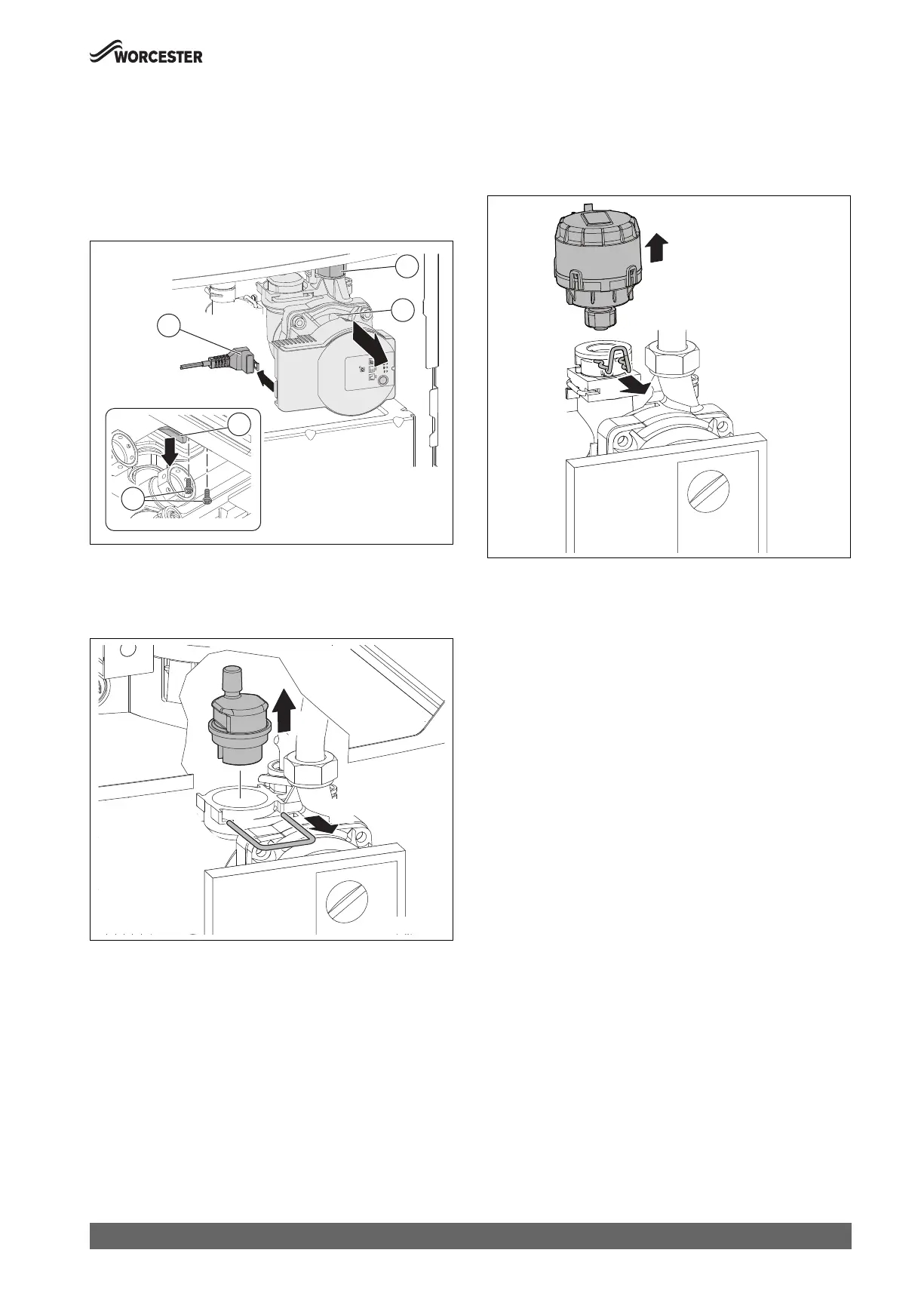

Fig. 85 Removing the pump
10.9 Removing the automatic air vent valve
1. Remove the clip.
2. Pull out the automatic air vent valve.
Fig. 86 Removing the automatic air vent valve
10.10 Removing the motor of the diverter valve
▶ Removing the automatic air vent valve
▶ Removing the motor of the diverter valve:
1. Undo clip.
2. Remove the motor of the diverter valve.
Fig. 87 Removing the motor of the diverter valve
▶ Press the cable retaining clip and remove the plug.
0010029657-001
1
2
5
3
4
2.
1.
0010006638-003
1.
2.
0010006640-003
