Product Information
GREENSTAR WIRING CENTRE – 6720880441 (2018/01)
4

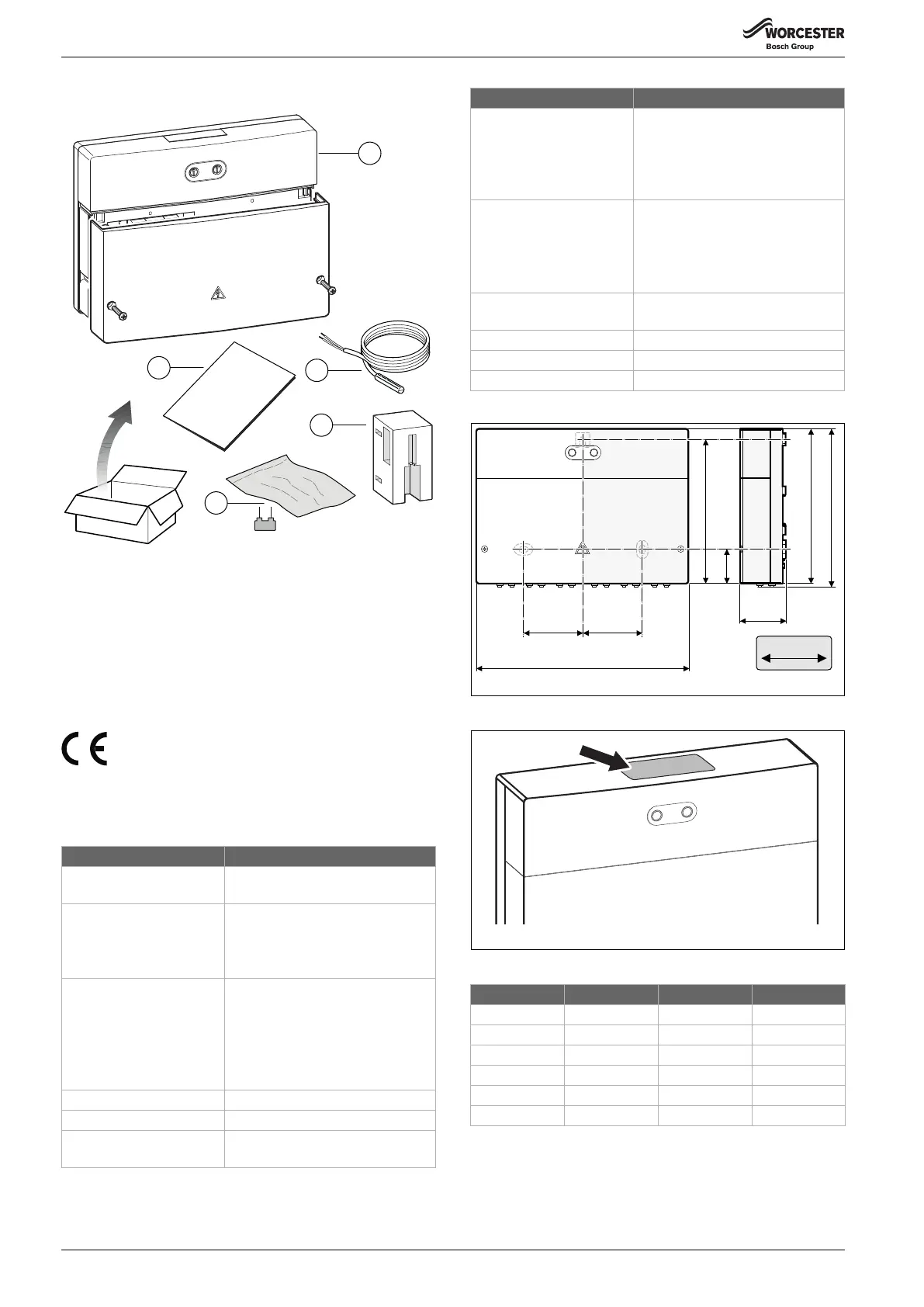

2.2 Scope of delivery
Fig. 1 Scope of delivery
[1] Module
[2] Cylinder temperature sensor (TC1)
[3] Cylinder temperature sensor (TC1) holder. To enable satisfactory
installation of the cylinder temperature sensor on hot water
cylinders without sensor pockets.
[4] Bag with installation materials and jumper
[5] Installation instructions
2.3 Specifications
In terms of design and operation, this product conforms to
the European Directives and supplementary national
requirements. Its conformity is demonstrated by the CE
marking.
You can request the declaration of conformity for the product. Please
refer to the contact address on the back cover of these instructions.
Table 2 Specifications
Fig. 2 Dimensions
Fig. 3 Position of data plate
Table 3 Test values for the cylinder temperature sensor (included with
the product)
2.4 Cleaning and care
▶ If required, wipe the casing with a damp cloth. Never use aggressive
or acidic cleaning agents for this.
Specifications
Dimensions (W × H × D) 151 × 184 × 61 mm
(further dimensions  Fig. 2)
Maximum
conductor cross-section
• Terminal 230 V
• Extra-low voltage terminal
• 2.5 mm
2
• 1.5 mm
2
Rated voltages
• BUS
• Module power supply
• User interface
• Pump and mixer
• 15 V DC
• 230 V AC, 50 Hz
• 15 V DC
(reverse-polarity-protected)
• 230 V AC, 50 Hz
Fuse 230 V, 5 AT
BUS interface EMS 2
Power consumption on –
standby
< 1 W
i
0 010 017 139-001
1
5
2
4
3
Maximum power output
• per connection
(PZ1 ... PZ3)
• per connection
(IZ1 ... IZ4)
• 400 W (high-efficiency
pumps permitted; max. 40 A/μs)
• 230 V AC, max. 0.5 A
Set temperature sensor
measuring range
• Lower fault limit
• Display area
• Upper fault limit
• < – 10 °C
• 0 ... 100 °C
• > 125 °C
Permissible ambient
temperature
0 ... 60 °C
IP rating IP 44
Protection class I
ID no. Data plate ( Fig. 3, page 4)
°C  °C 
20 14772 56 3723
26 11500 62 3032
32 9043 68 2488
38 7174 74 2053
44 5730 80 1704
50 4608 86 1421
Specifications
246
72
61
181
184
169
40,5
72
0 010 013 182-001
... mm
0 010 013 183-001
