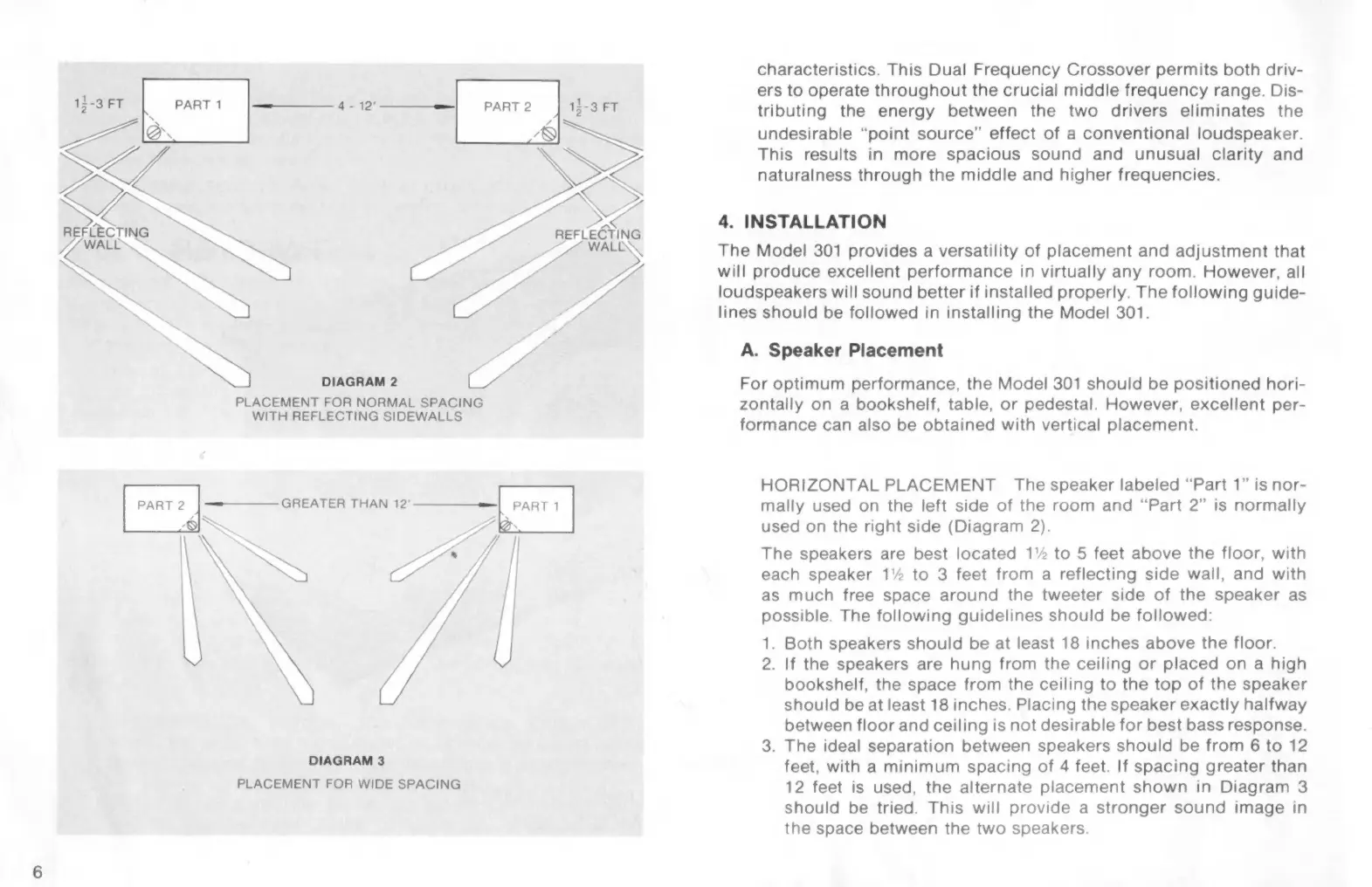

Bose 301 User Manual

PART 2 13-3 FT
3 № i S
DIAGRAM 2 PM
PLACEMENT FOR NORMAL SPACING
WITH REFLECTING SIDEWALLS
DIAGRAM 3
PLACEMENT FOR WIDE SPACING
characteristics. This Dual Frequencv Crossover permits both driv-
ers to operate throughout the crucial middle frequencv range. Dis-
tributing the energv between the two drivers eliminates the
undesirable ''point source' effect of a conventional loudspeaker.
This results in more spacious sound and unusual claritv and
naturalness through the middle and higher frequencies.
4. INSTALLATION
The Model 301 provides a versatilitv of placement and adjustment that
will produce excellent performance in virtually any room. However, all
loudspeakers will sound better if installed properly. The following guide-
lines should be followed in installing the Model 301.
A. Speaker Placement
For optimum performance, the Model 301 should be positioned hori-
zontally on a bookshelf, table, or pedestal. However, excellent per-
formance can also be obtained with vertical placement.
HORIZONTAL PLACEMENT The speaker labeled “Part 1” is nor-
mally used on the left side of the room and “Part 2” is normally
used on the right side (Diagram 2).
The speakers are best located 1% to 5 feet above the floor, with
each speaker 1% to 3 feet from a reflecting side wall, and with
as much free space around the tweeter side of the speaker as
possible. The following guidelines should be followed:
1. Both speakers should be at least 18 inches above the floor.
2. If the speakers are hung from the ceiling or placed on a high
bookshelf, the space from the ceiling to the top of the speaker
should be at least 18 inches. Placing the speaker exactly halfway
between floor and ceiling is not desirable for best bass response.
3. The ideal separation between speakers should be from 6 to 12
feet, with a minimum spacing of 4 feet. If spacing greater than
12 feet is used, the alternate placement shown in Diagram 3
should be tried. This will provide a stronger sound image in
the space between the two speakers.

Bose 301 Specifications

General

Type	Bookshelf
Equalizer	-
Dimensions (WxDxH)	360 x 250 x 250 mm
Tweeter	Yes
Speaker placement	Ceiling-mountable
Audio output channels	2.0 channels
Impedance	- Ω
Frequency range	- Hz
RMS rated power	- W
Product color	Black
Recommended usage	Universal
Package weight	13000 g
Connectivity technology	Wired

Weight and Dimensions

Weight	5700 g
