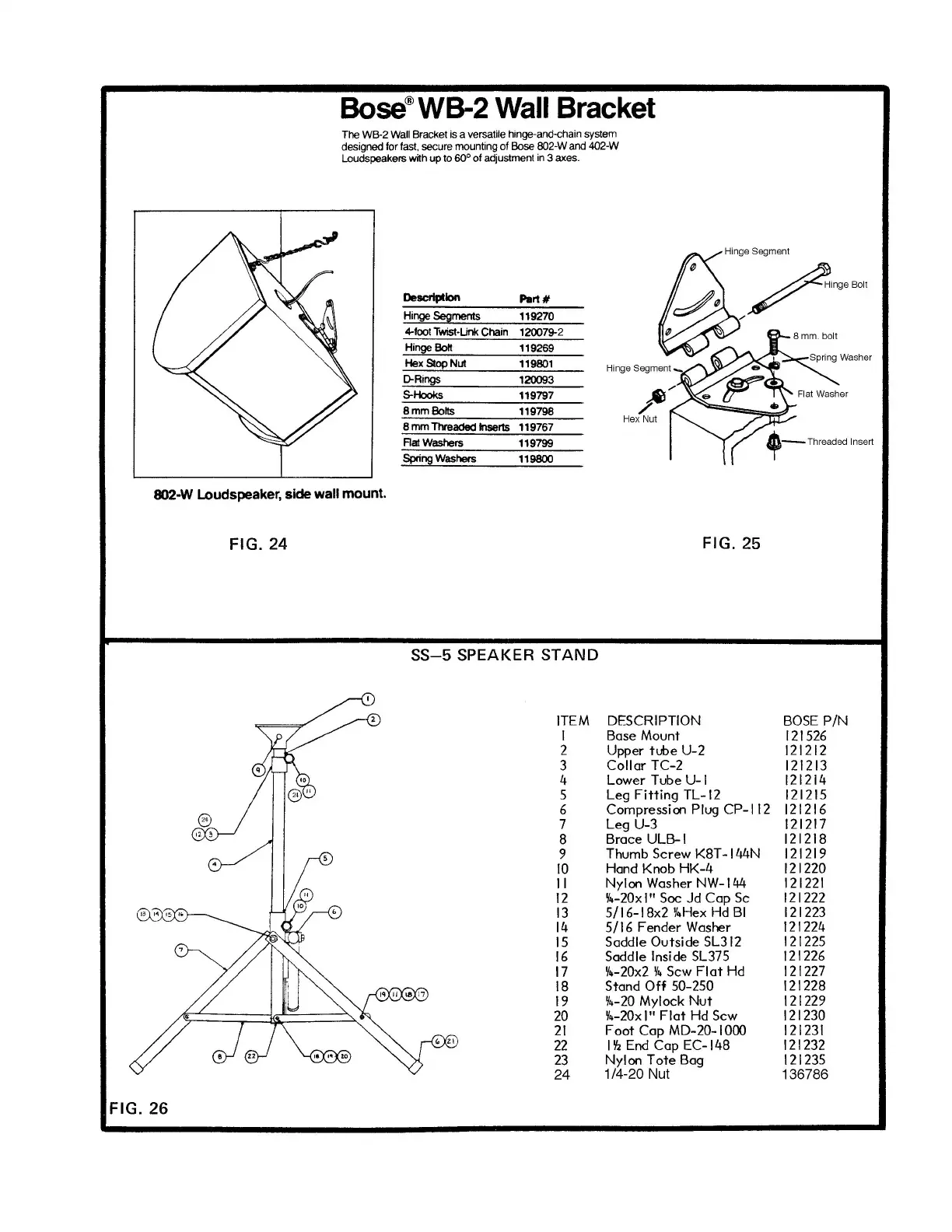

Bose® WB-2 Wall Bracket
The WB-2 Wall Bracket is a versatile hinge-and-ehain system
designed for fast, secure mounting of Bose 802-Wand 402-W
loudspeakers with up to 60° of adjustment in 3 axes.
802·W Loudspeaker, side wall mount.
FIG. 24
Description
Hinge Segments
4-foot Twist-Un!< Chain
HingeBoK
Hex
Stop Nut
O-Rings
5-Hooks
8mmBolts
8 mm Threaded Inserts
Rat Washers
Spring Washers
PIIrt #
119270
120079-2
119269
119801
120093
119797
119798
119767
119799
119800
Hinge Segment
FIG. 25
SS-5 SPEAKER STAND
FIG. 26
ITEM
I
2
3
4
5
6
7
8
9
10
II
12
13
14
15
16
17
18
19
20
21
22
23
24
DESCRIPTION
Base Mount
Upper tube U-2
Collar TC-2
Lower Tube
U- I
Leg Fitting TL-12
Compression Plug CP-112
Leg U-3
Brace ULB-I
Thumb Screw
K8T -144N
Hand Knob HK-4
Nylon Washer NW-I44
Y4-20x I" Soc Jd Cap Sc
5/16-18x2
Y4Hex Hd BI
5/16 Fender Washer
Saddle Outside
SL312
Saddle Inside SL375
Y4-20x2 Y4 Sew Flat Hd
Stand Off 50-250
Y4-20 Mylock Nut
Y4-20x I" Flat Hd Sew
Foot Cap
MD-20-1 000
l'h End Cap EC-148
Nylon Tote Bag
1/4-20 Nut
BOSE PIN
121526
121212
121213
121214
121215
121216
121217
121218
121219
121220
121221
121222
121223
121224
121225
121226
121227
121228
121229
121230
121231
121232
121235
136786

Bose 802-II Specifications

General

Frequency Response	55 Hz - 16 kHz
Impedance	8 ohms
Type	Full-Range Loudspeaker
Grille	Powder-coated steel
Power Handling	240W continuous
Sensitivity	91 dB SPL, 1 W, 1 m
Drivers	8 x 4.5" (114mm) full-range drivers
Coverage Angle	120° H x 60° V
