Bose 802-II User Manual

7

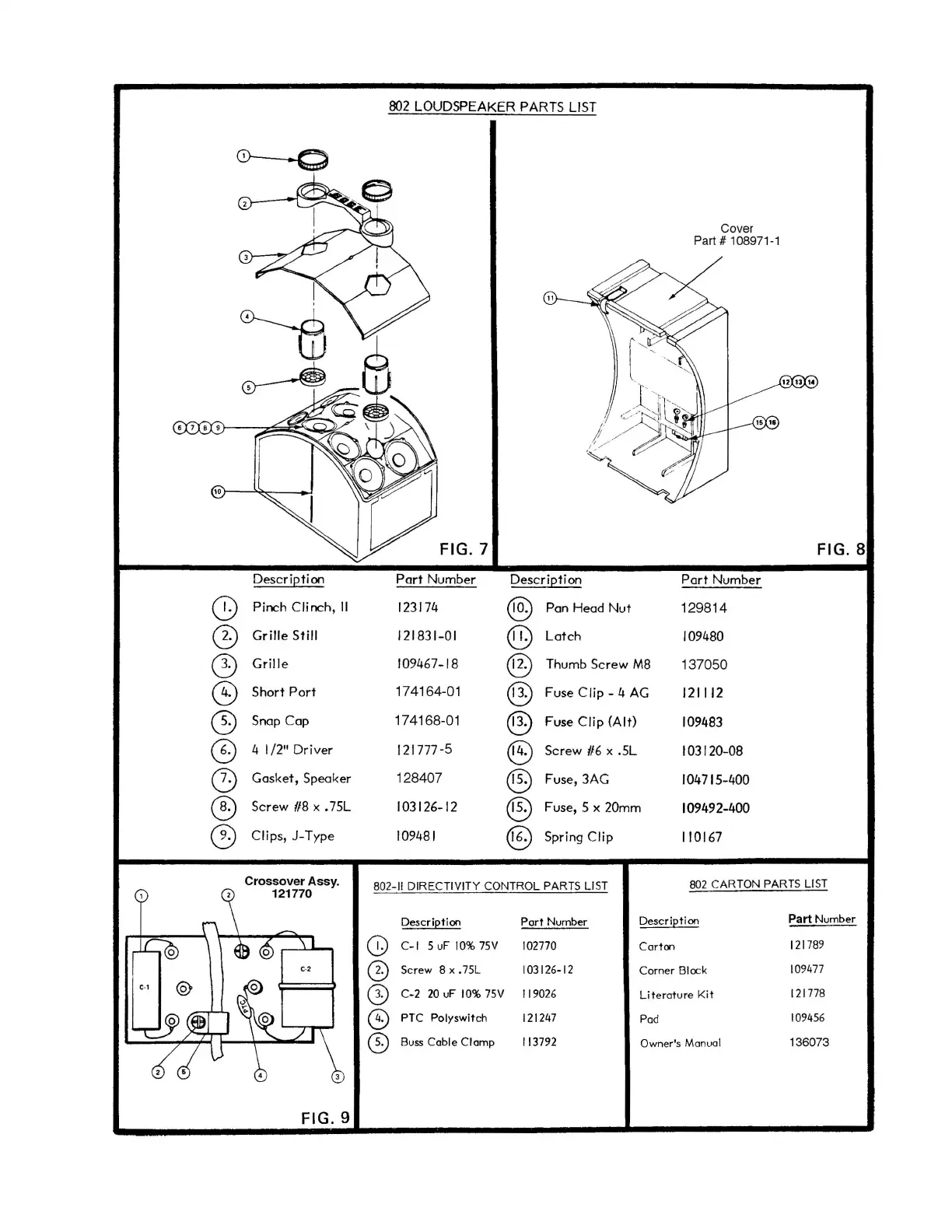

802 LOUDSPEAKER PARTS LIST
Cover
Part # 108971-1
FIG. 7
FIG.8
Description
Part Number
Description
Part Number
CD
Pinch Clinch, II
123174
®
Pan Head Nut 129814
0
Grille Still
121831-01
®
Latch
109480
(3
Grille 109467-18
@
Thumb Screw M8
137050
C9
Short Port
174164-01
@
Fuse Clip - 4 AG
121112
CD
Snap Cap 174168-01
@
Fuse Clip (Alt)
109483
CD
4 1/2" Driver
121777-5
®
Screw 1/6 x .5L
103120-08
())
Gasket, Speaker
128407
@
Fuse,3AG
104715-400
CD
Screw 1/8 x .75L
103126-12
@
Fuse, 5 x 20mm
109492-400
CD
Clips, J-Type
109481
®
Spring Clip
110167
Crossover Assy.
802-11 DIRECTIVITY CONTROL PARTS LIST
802 CARTON PARTS
LIST
121770
Description
Port Number
Description
Part Number
CD
C-I 5 uF 10% 75V
102770
Carton
121789
CD
Screw 8 x .75L
103126-12
Carner Block
109477
0
C-2 20 uF 10% 75V
119026
Literature Kit
121778
@
PTC Palyswitch 121247
Pod
109456
CD
Buss Coble Clomp
113792
Owner's Manual
136073
FIG.9
174166-01 BLACK
174166-02 WHITE
802 III cover 252389-01
175233-2

Bose 802-II Specifications

General

Frequency Response	55 Hz - 16 kHz
Impedance	8 ohms
Type	Full-Range Loudspeaker
Grille	Powder-coated steel
Power Handling	240W continuous
Sensitivity	91 dB SPL, 1 W, 1 m
Drivers	8 x 4.5" (114mm) full-range drivers
Coverage Angle	120° H x 60° V
