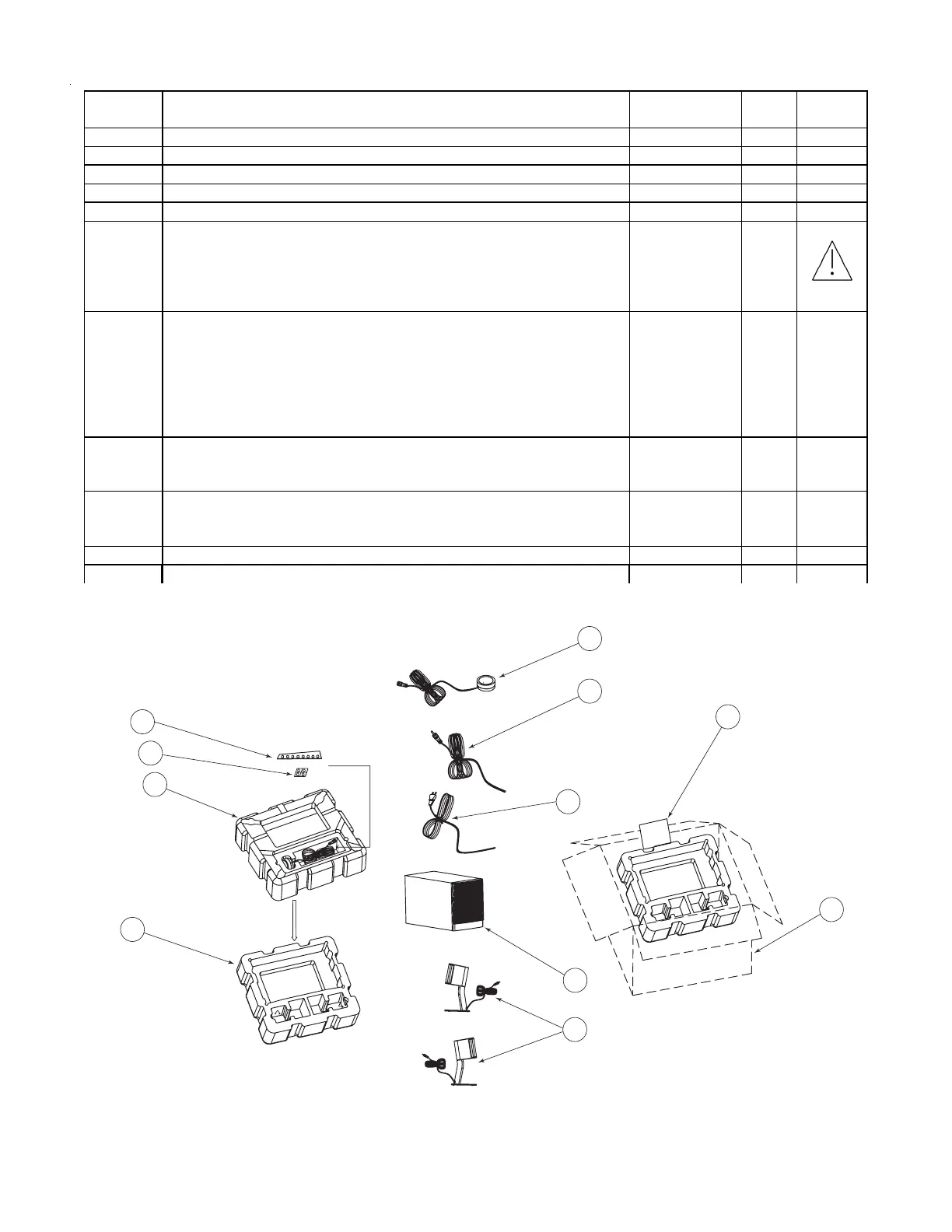

Figure 3. Packaging Exploded View
*Capacitor C7 on the new power supply board may need to be replaced, see Service Bulletin 271885-B4
Item
Number
Description Part
Number
Qty. Notes
1 FEET, CLEAR SATELLITE 178321-04 2
2 FEET, RUBBER, BRACKET 260465 1
3 PACKING EPS, FILLER (includes both top and bottom filler) 300908-001 1
4 CONTROL POD,
(
NON-REPAIRABLE
)
307874-002 1
5 CABLE, INPUT, 3.5MM, 6FT, BLK 271994-001 1
6 LINE CORD, 100V, BLK, JAPAN
LINE CORD, 120V, BLK, US/CANADA
LINE CORD, 220V, BLK, EURO
LINE CORD, 230V, BLK, UK
LINE CORD, 240V, BLK, AUS
264514-001
262814-001
148203
134725
284243-001
1 3
7 BASS MODULE, ASSY, US/CANADA, 120V (Electrofoil Logo)
BASS MODULE, ASSY, EURO, 230V (Electrofoil Logo)
BASS MODULE, ASSY, JAPAN, 100V (Electrofoil Logo)
BASS MODULE, ASSY, US/CANADA, 120V (Padprint Logo)
BASS MODULE, ASSY, EURO, 230V (Padprint Logo)
BASS MODULE, ASSY, JAPAN, 100V (Padprint Logo)
(
Com
p
lete bass module
p
acka
g
e, includes Am
p
Mod Ass
y)
*300905-001
*300905-003
*300905-002
*303939-112
*303939-122
*303939-132
1
8 SAT, ASSY (Electrofoil Logo)
SAT, ASSY (Padprint Logo)
(
sin
g
le arra
y
, includes s
p
eaker stand
)
300766-001
303938-002
2
9 OWNERS GUIDE, 3 LANG, US/CANADA
OWNERS GUIDE, 5 LANG, EURO
OWNERS GUIDE, 5 LANG, AP
296583
296584
299450
1
10 CARTON, RSC, PRINTED 300911-001 1
- CARTON KIT 300911-001K 1
Packaging Part List
