Installation
Wiring a power supply to the RJ45 plug

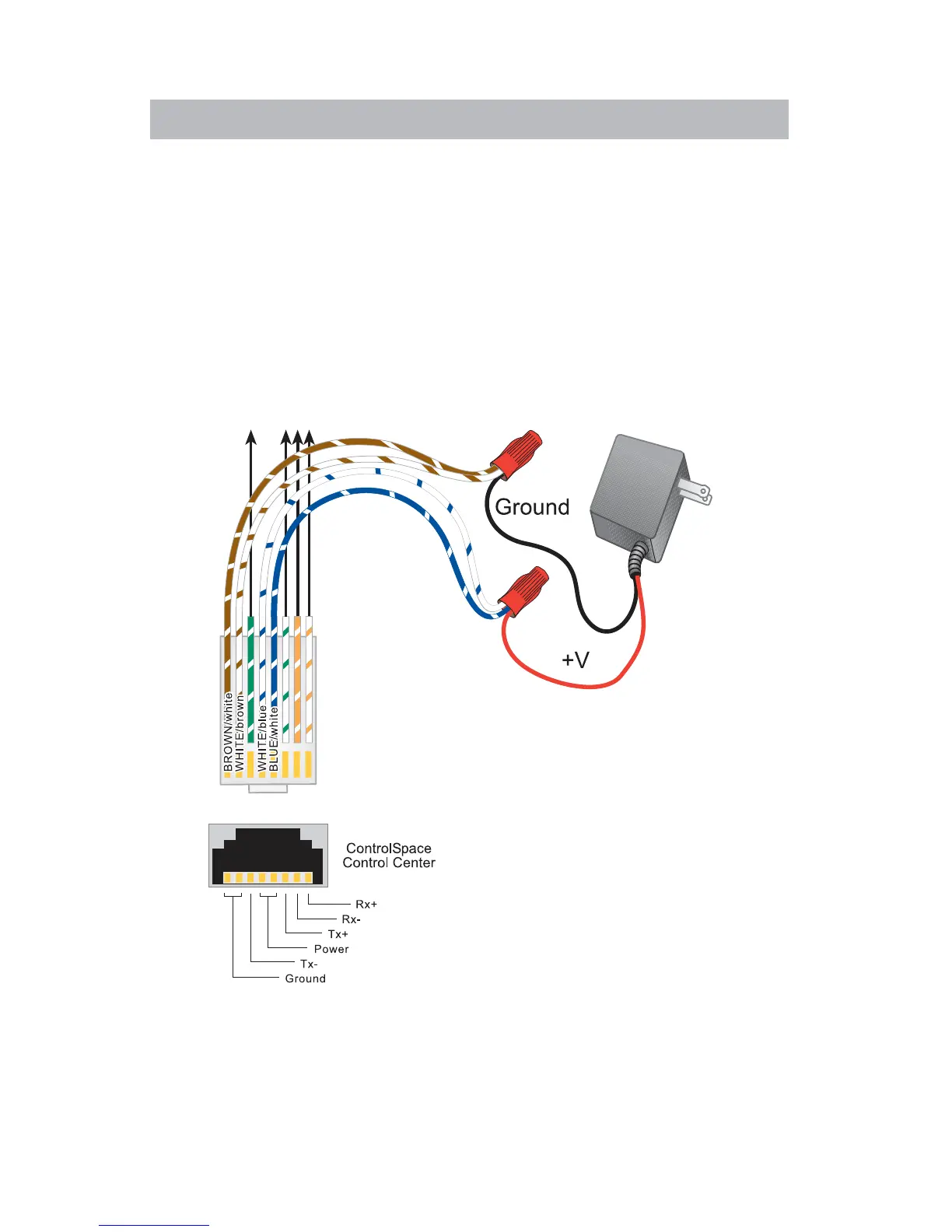

The diagram below illustrates how to connect a power supply to inject power
over the Ethernet connection. Connect the ground wire from the supply to the
BROWN/white and WHITE/brown wires of the Cat-5 cable. Connect the
power wire from the supply to the BLUE/white and WHITE/blue wires of the
Cat-5 cable.
CAUTION: Cut the brown and blue pair wires when connecting power to the
CC-64 over the Ethernet connection. Connecting power over the Ethernet
cable to other devices such as routers may cause damage to that equipment.
