3. Make Analog Audio Connections
Analog Audio

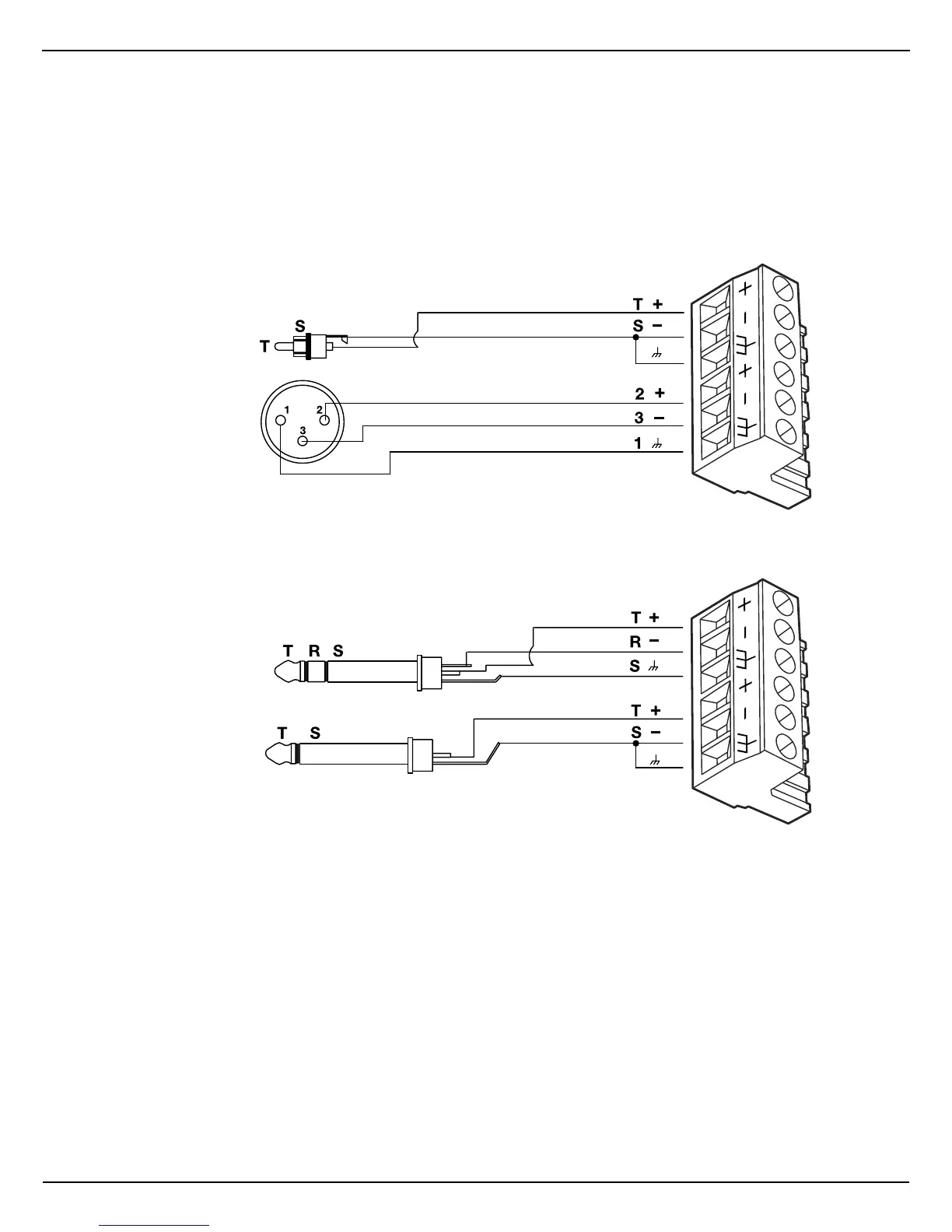

The EX-1280C includes balanced dual-channel (3.81 mm, 6-pin) Euroblock connectors for analog audio
connections. The termination end of each connector includes printed terminal block descriptions.
Device
Connector
Euroblock
Connector
RCA
XLR
Phone Plug
(Balanced)
Phone Plug
(Unbalanced)
