5. Rear Panel Connections
Entero
®
440 (four channel version) and 840 (eight channel version)
Entero 4100/4200/4400

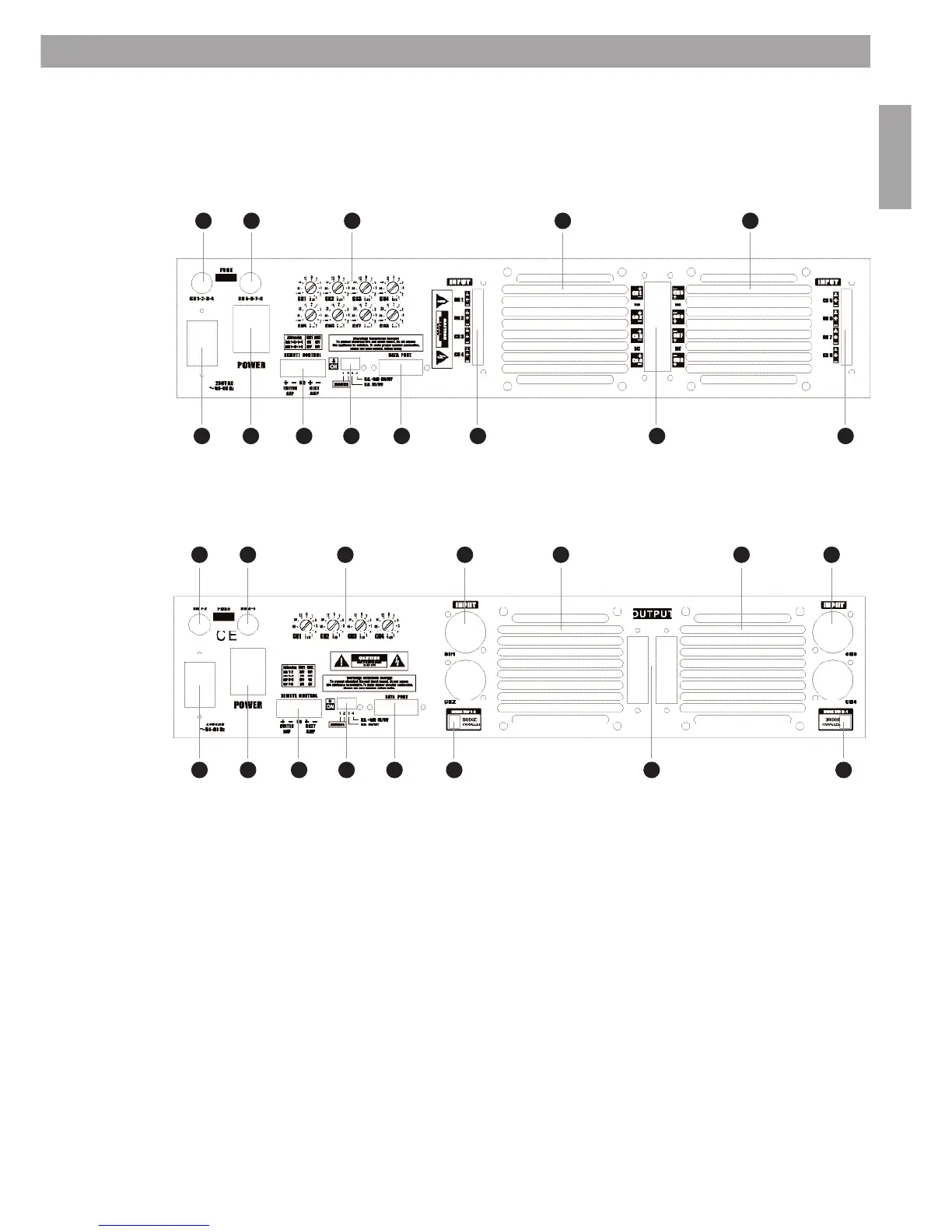

Legend
1. Power Connector
2. Main Power Switch
3. Fuse Power Supply 1
4. Fuse Power Supply 2
5. Remote Power Switch Connector
6. DIP Switch for Channel Address and Noise Gate
7. Sub-D Connector for Future Control Connection
8. Phoenix Input Connectors
9. Phoenix Input Connectors (Entero 840 only)
10. XLR / TRS Input Connector, Channel 1 and 2
11. XLR / TRS Input Connector, Channel 3 and 4
12. Phoenix Output Connector, Channel 1 to 4 (and 5 to 8, Entero 840 only)
13. Level Control, Channel 1 to 4 (and 5 to 8, Entero 840 only)
14. Cooling / Fan
15. Cooling / Fan
16. DIP Switch for Stereo, Parallel and Bridge Mode, Channel 1 and 2
17. DIP Switch for Stereo, Parallel and Bridge Mode, Channel 3 and 4
7
3
1 2 5 6 7 9 12 8
4 14 1513
5. Rear Panel Connections
3 10 11
1 2 5 6 7 16 12 17
4 14 1513
